Part 4

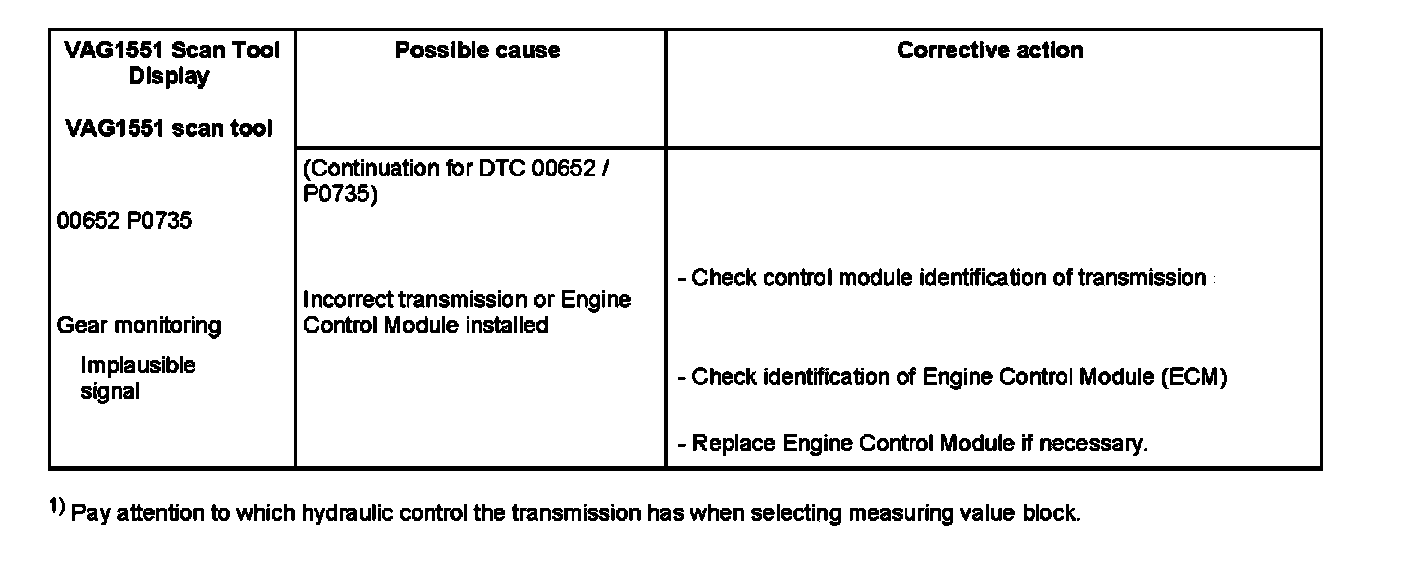

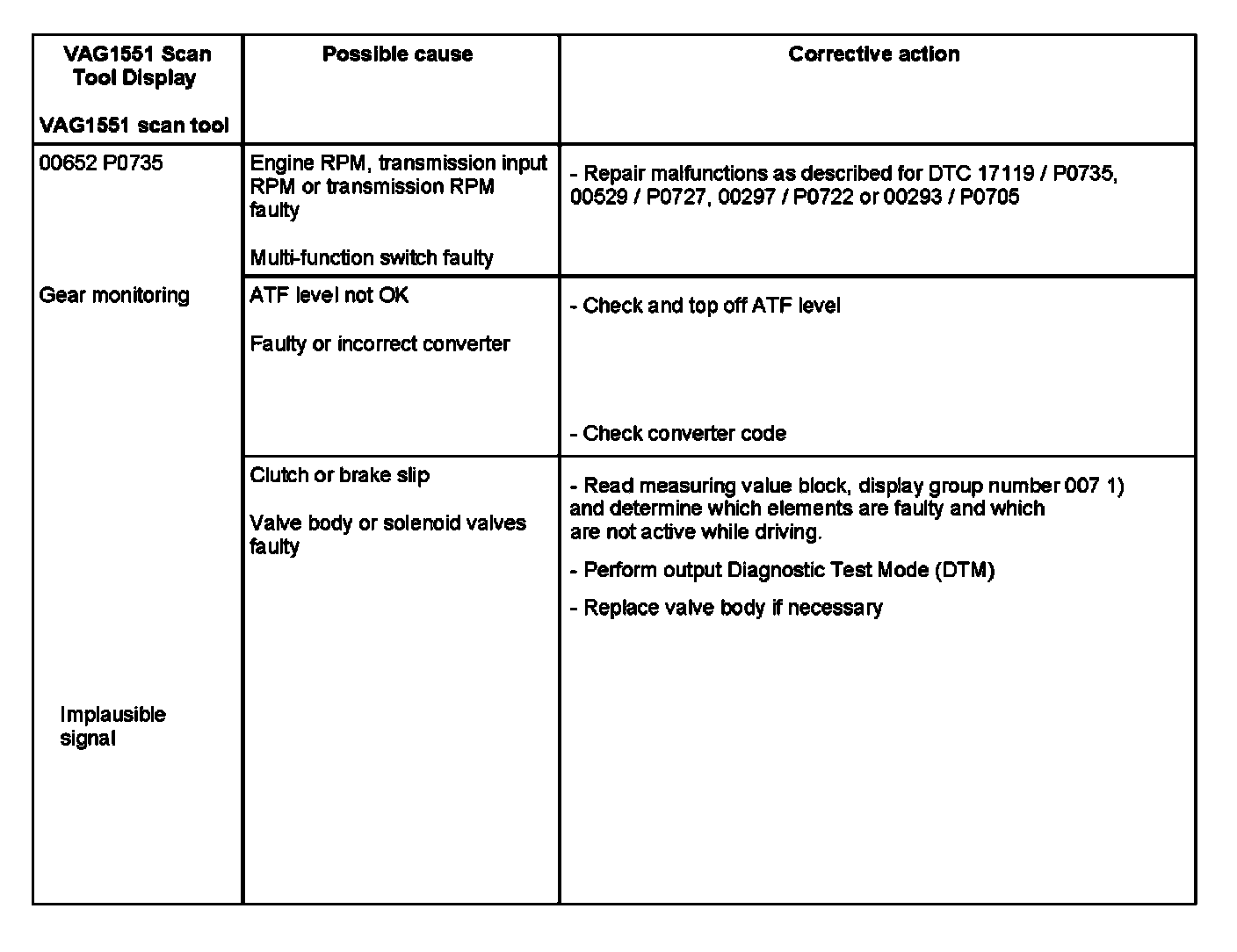

DTC 00652 / P0735








1) Pay attention to which hydraulic control the transmission has when selecting measuring value block. For a more detailed description; Refer to "Read measuring value block". Note:
For malfunction recognition for DTC 00652 / P0735:
The ratio of engine RPM to transmission input RPM and transmission RPM with driving mode selected is implausible. (Requirement for malfunction recognition: transmission input RPM and transmission RPM larger than 64 RPM and engine RPM larger than 1400 RPM)
Implausibility of gear ratio of third gear is recognized by the Transmission Control Module (TCM).
