Symphony Radio, Removing and Installing

"Symphony" Radio, Removing And Installing


NOTE: Determine code number for anti-theft radio before removing.


Required special tools and equipment

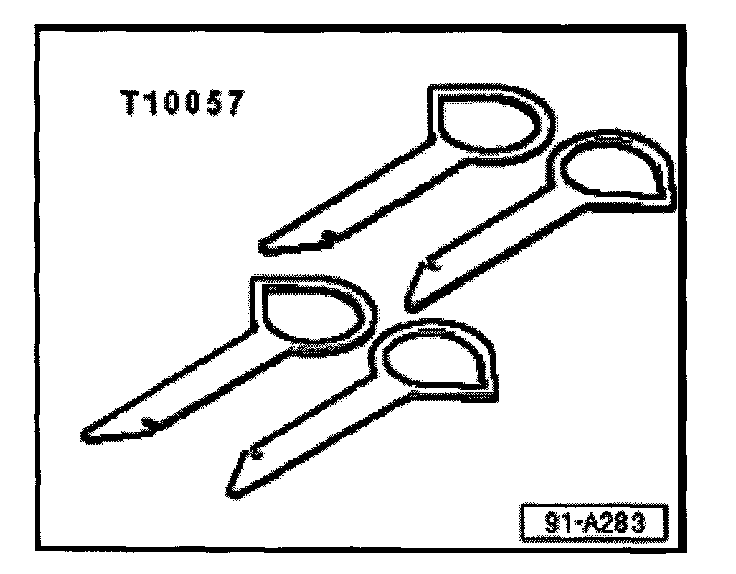

- T10057 radio removal tools

Removing
Perform the following work sequence:

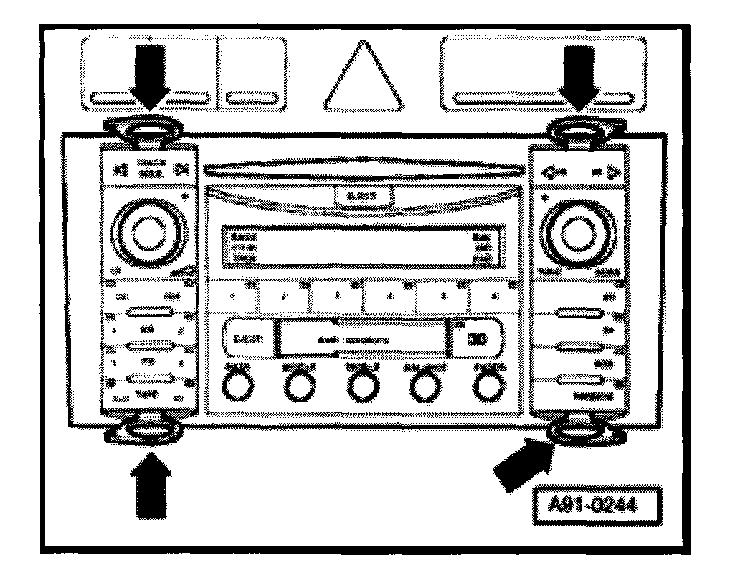

- Insert T10057 radio removal tools into release slots (arrows) as shown until they engage.
Top Left
Top Right
- Pull radio out of instrument panel using grip rings on release tool.
- Unlock and disconnect harness connectors

Remove T10057 radio removal tools before installing radio:

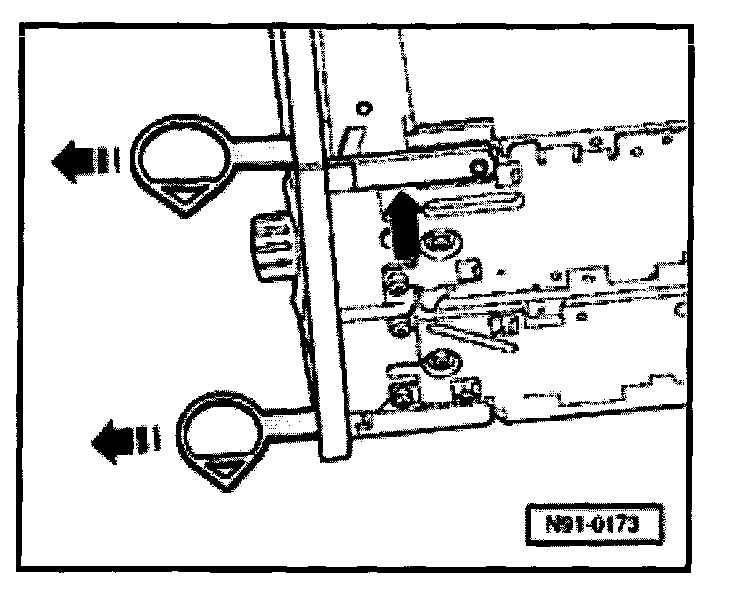

- Press locking latch arrow- and remove radio release tools toward front.

Installing:
- Connect harness connectors to radio.
- Slide radio evenly into instrument panel, until it engages in assembly frame.
