Seat Cushion, Removing and Installing

Seat Cushion, Removing And Installing

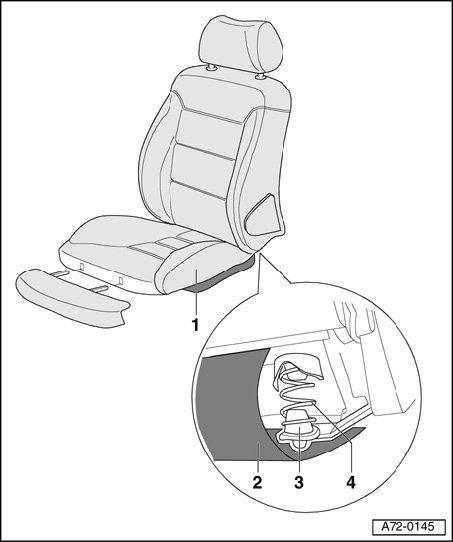

1 - Seat cushion

Removing
- Move seat fully up.
- Remove seat.
- Remove seat cushion extension, front cover panel and guide sleeves.
- Remove mounting trim pieces.
- Remove spring cover.
- Detach electrical cover - 2 - under seat.
- If installed, disconnect seat cushion wiring (seat heater, seat-occupied sensor).
- Push up front of seat cushion - 1 -.
- Remove seat cushion - 1 - forward and out.

NOTE: Both seat springs and their related rubber buffers located in the rear between seat cushion and backrest fall out by themselves.







Installing
- Make sure that rubber buffers - 3 - are correctly located in the mounts on the backrest.
- Install springs - 4 - in seat cushion.
- Insert electrical cover - 2 - between backrest and seat frame.
- Install seat cushion - 1 - so that springs - 4 - sit on rubber buffers - 3 - at backrest.
- Push seat cushion - 1 - toward rear.
- Push down on front of seat cushion - 1 -.
- If necessary, attach wiring in seat cushion.
- Install electrical cover beneath seat.

2 - Electrical cover
3 - Rubber buffers (2x)
4 - Springs (2x)
