Readiness Code Reading

Readiness Code, Reading

Test sequence
- Connect vehicle diagnostic, testing and information system VAS5051 and select vehicle system "01 -Engine electronics". Connecting VAS 5051 Scan Tool
Engine must be running at idling speed.

Display on VAS5051:







- Under -1- select diagnostic function "08 - Read measured value block".

Display on VAS5051:







- Enter display group
- Enter "086" for "display group number 086" in zone -2- and confirm entry by pressing -Q- button.

Display on VAS5051:







- Check indication in display field -1-.
- Specified value: 00000000

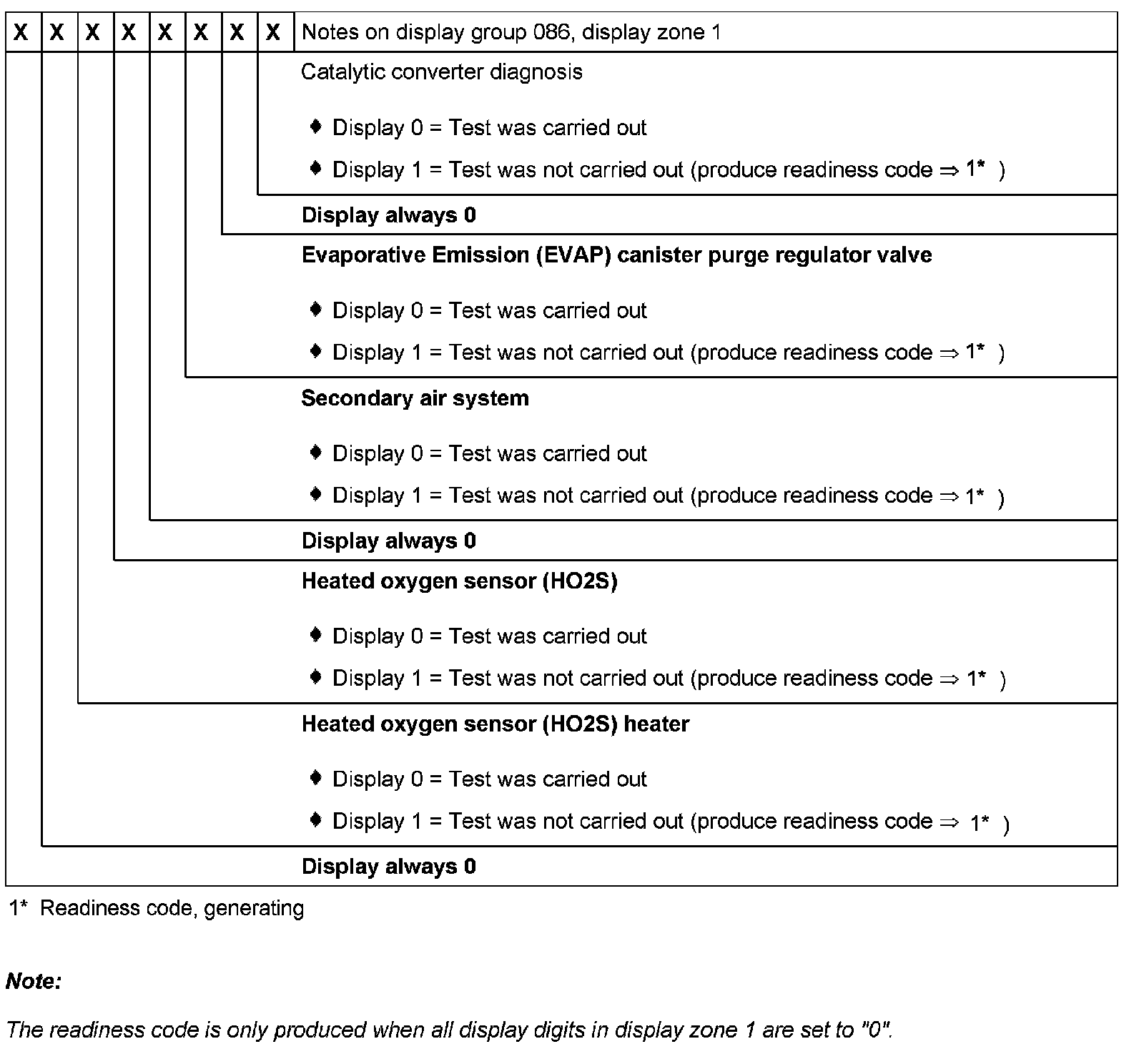

Display Group 086:

Explanation of readiness code







If the specification "00000000" is achieved in display zone 1:
- Press <- button.

If specified value is not obtained:
- Generate readiness code. Readiness Code, Generating
