Compressor Pulley, Replacing

Compressor Pulley, Replacing

NOTE:
- Different types of pulley are fitted depending on design of compressor and engine version
- Detaching pulley from compressor/re-attaching

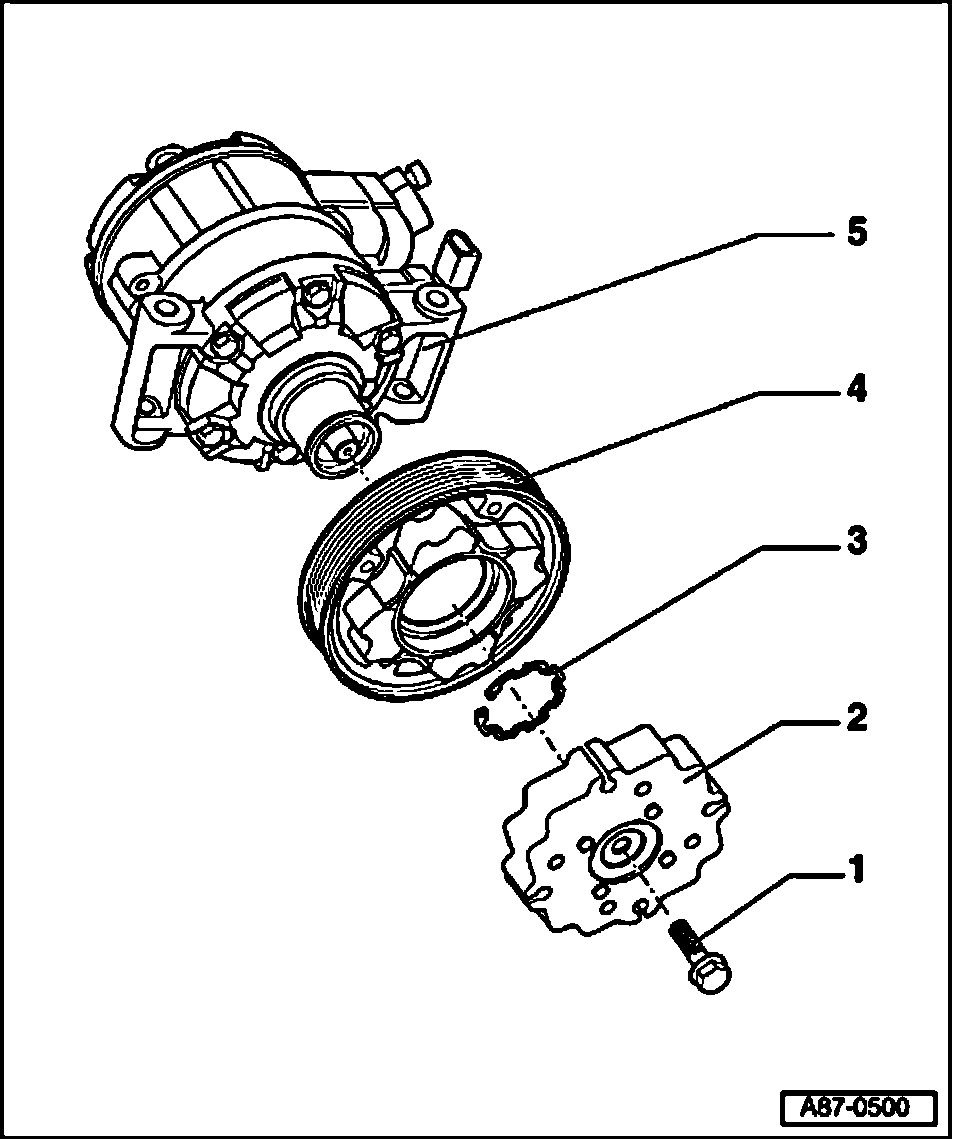

1 Bolt
- Replace
- Tightening torque 20 Nm
- Slackening off and tightening
2 Drive plate
- Different versions
- Detaching/attaching
- Tripped in the event of excessive torque (e.g. compressor stiff)
3 Circlip
- Replace
- Ensure correct positioning (flat side facing compressor)
4 Pulley
- Rubber element of pulley is tripped in the event of excessive torque (e.g. stiff compressor) and pulley just turns without driving compressor
- Different versions
- Detaching/attaching

NOTE: Under certain conditions (e.g. rough engine running), rubber element of pulley may be tripped when there is no compressor or refrigerant circuit fault.

5 Compressor
- Different models are fitted depending on engine and country version
- Clean flange of compressor before fitting pulley
