Connector Locations

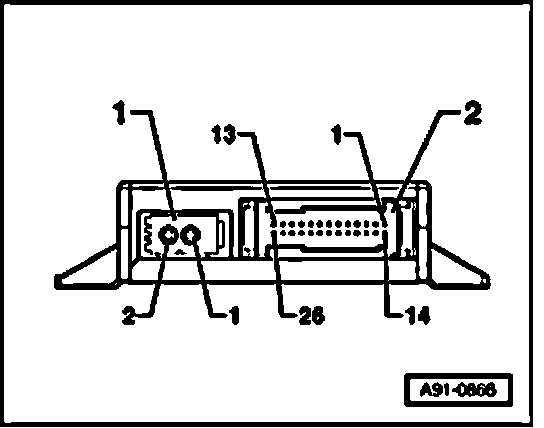

Terminal Assignments/Electrical Connectors On Data Bus On Board Diagnostic Interface -J533- (Gateway)

NOTE: Terminals which are not listed are vacant/unassigned.







1 - Connection for fiber-optic MOST data bus
1 Input
2 Output

2 - 26-pin connector
1 Battery +(terminal 30)
2 Battery +(terminal 30)
3 Wake-up (instrument panel)
4 Open circuit diagnostic wire
6 CAN bus high (convenience)
8 CAN bus high (drive)
9 CAN bus high (instrument panel)
11 CAN bus high (diagnosis)
13 E-CAN high
14 Ground (terminal 31)
15 Ground (terminal 31)
16 Terminal 15
19 CAN bus low (convenience)
21 CAN bus low (powertrain)
22 CAN bus low (instrument panel)
24 CAN bus low (diagnosis)
26 E-CAN low
