Wheel Alignment, Specified Values For Allroad

Wheel alignment, specified values for Allroad





These specified values are valid for all engine versions, on vehicles with normal levelling

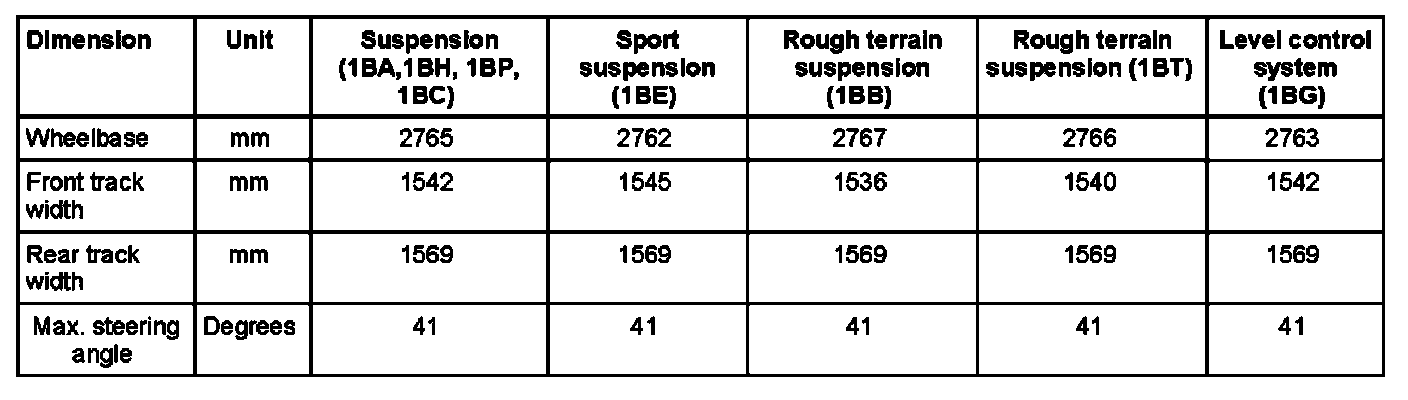

Additional vehicle data for vehicles with front-wheel drive:





Specified values valid for all engine versions

Note: Expected values for a wheel offset of ET45 This additional data is only for more rapid diagnosis in accidents.

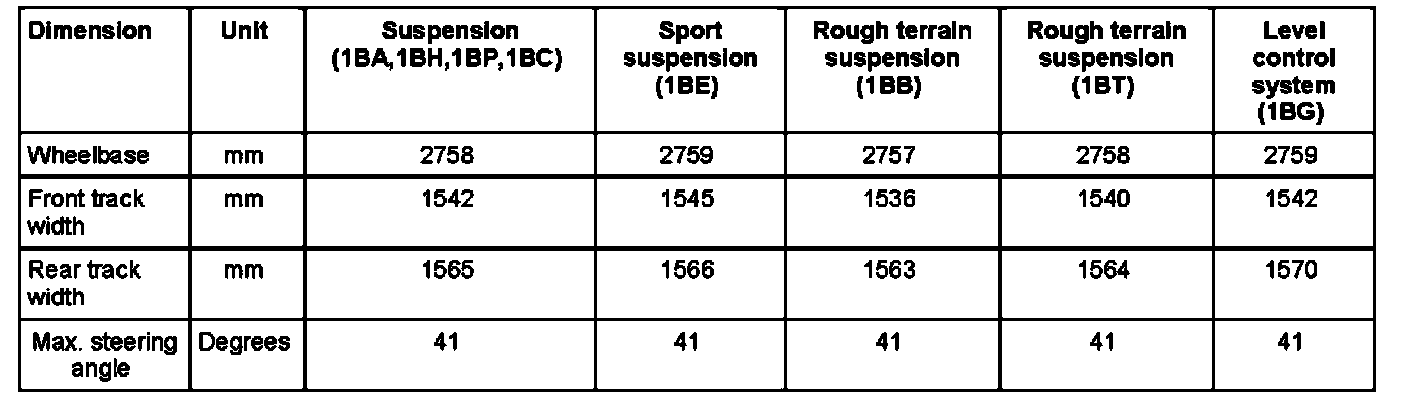

Additional vehicle data for vehicles with all-wheel drive:





Specified values valid for all engine versions

Note:
Expected values for a wheel offset of ET45
This additional data is only for more rapid diagnosis in accidents.

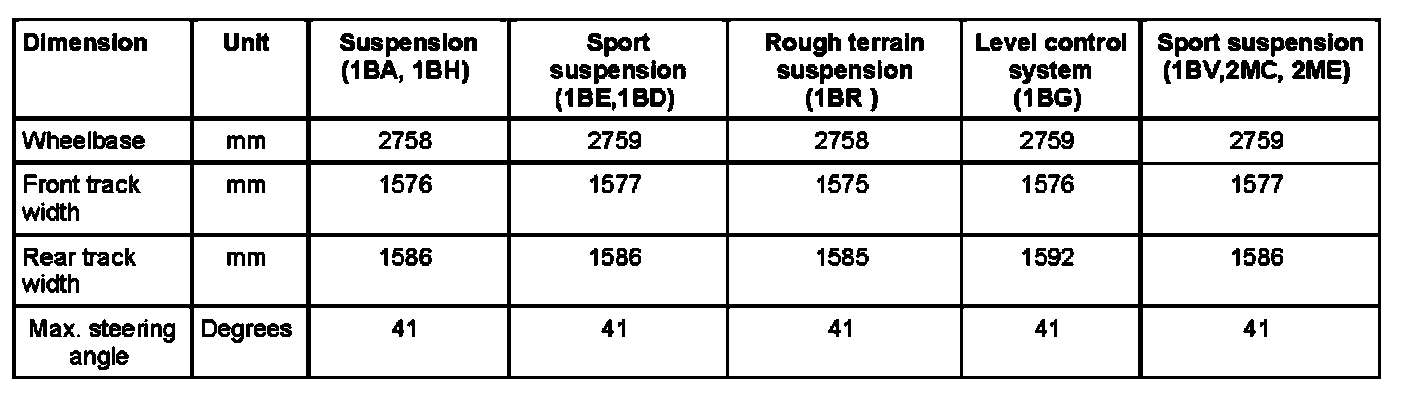

Additional vehicle data for Audi AS 4.2 V8 vehicles:





Specified values valid for all engine versions

Note:
Specified values for 215155 R 16 tires (ET32), track width + 6 mm
Expected values for 255140 R 17 tires (ET35), track width ± 0 mm
This additional data is only for more rapid diagnosis in accidents.

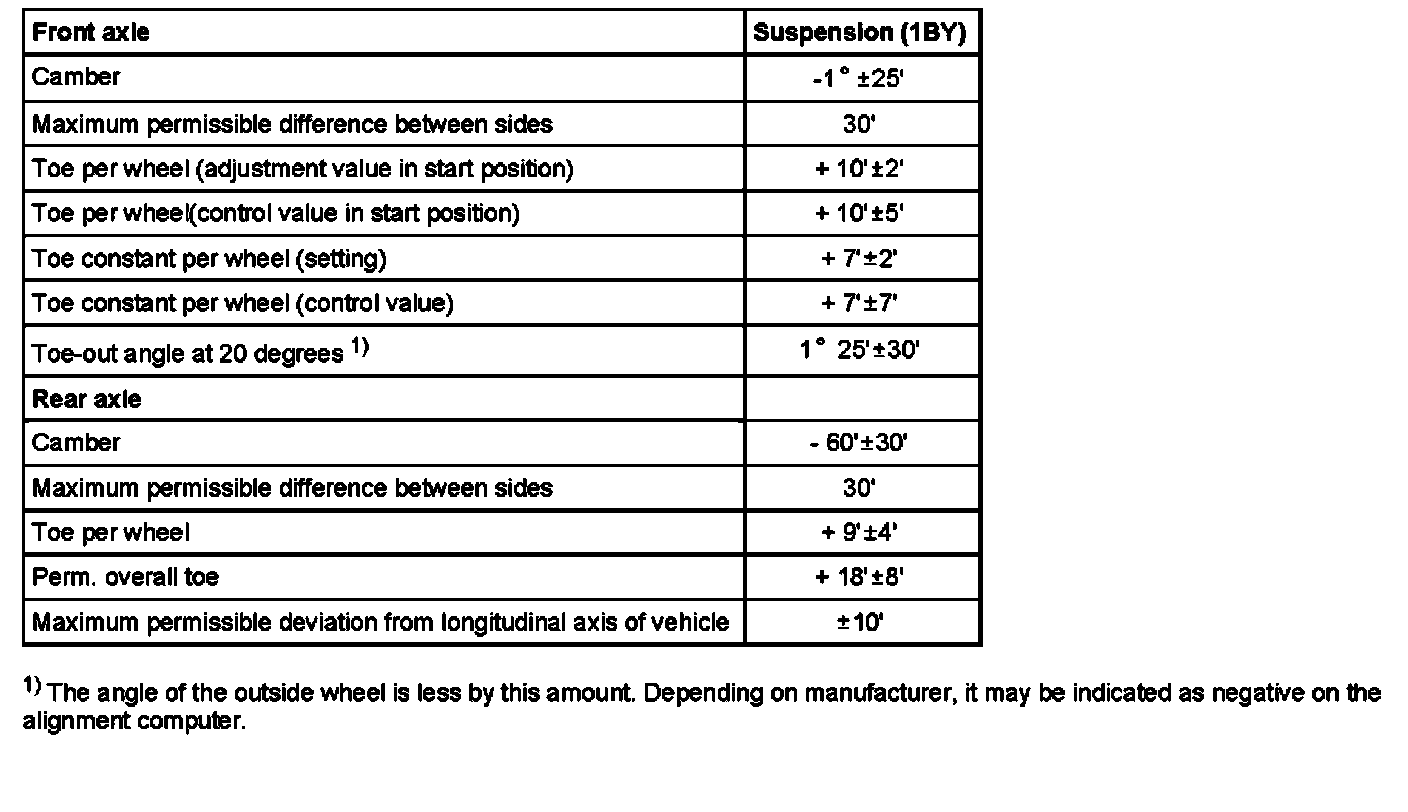

Additional vehicle data for Allroad





These specified values are valid for all engine versions, on vehicles with normal levelling

Note:
^ Specified values for 225155 R 17 tires (ET25)
^ For use of tires with different offset, track widths deviate accordingly.
^ This additional data is only for more rapid diagnosis in accidents.

Test requirements:
^ Check suspension, wheel bearing, steering and steering linkage for excessive play and damage
^ Tread depth difference of no more than 2 mm on an axle
^ Tires inflated to correct pressure
^ Curb weight of vehicle
Fuel tank must be full
Spare tire and vehicle tools are installed in appropriate position in vehicle
The water container for the windshield/headlight cleaning system must be full.
^ In vehicles with level control (113G), switch on ignition before measurement and wait until vehicle height control process is complete.
^ For vehicles with 4- wheel air suspension (1 BY), vehicle must be at normal level. Deactivate level control system. Be sure there is sufficient pressure in pressure reservoir. Press up and down buttons in operating unit for level control system simultaneously for more than 5 seconds until LED indicators light up. Indicator in instrument cluster will also light up. Automatic height regulation switches off automatically at 5 km/h.
^ On vehicles with 4-wheel air suspension (1 BY), check specified height between center of wheel and bottom edge of fender.
Specification: 402 mm +- 5 mm
If this is not the case, basic setting must be performed.
^ Be sure that the sliding plates and turn tables are not touching the end stop when checking wheel alignment

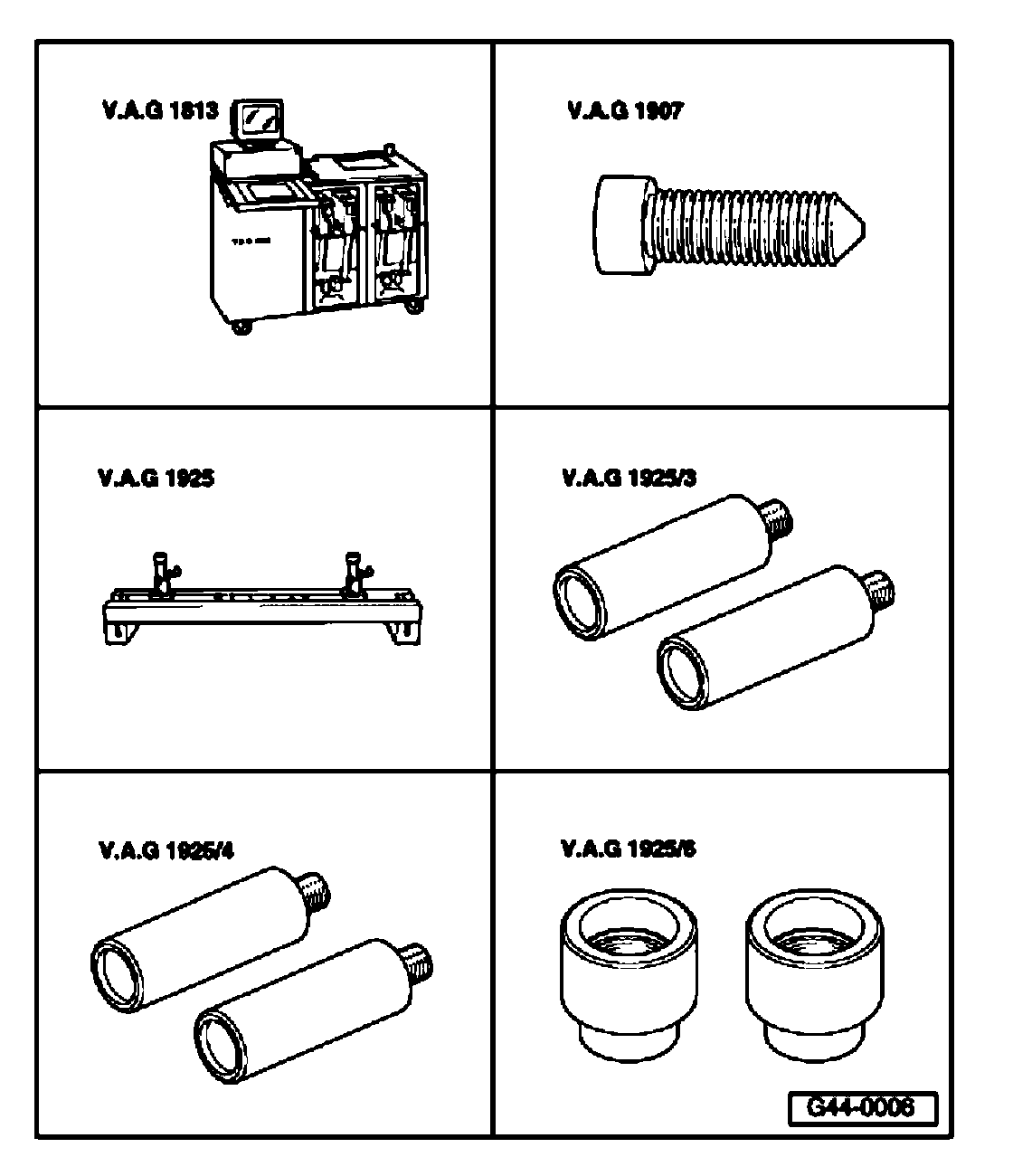

Special tools and equipment
^ V.A.G 1813
^ V.A.G 1907
^ V.A.G 1925
^ V.A.G 1925/3
^ V.A.G 1925/4

Whether adapter VAG192513 or VAG192514 Is used depends on the design of the car lift.
^ VAG 1925/6
