Display Group 125
Display Group 125
Display Group "125"
Information on CAN-Bus comfort system and operating status of CAN-Bus comfort system
Display Field 1 - 2:

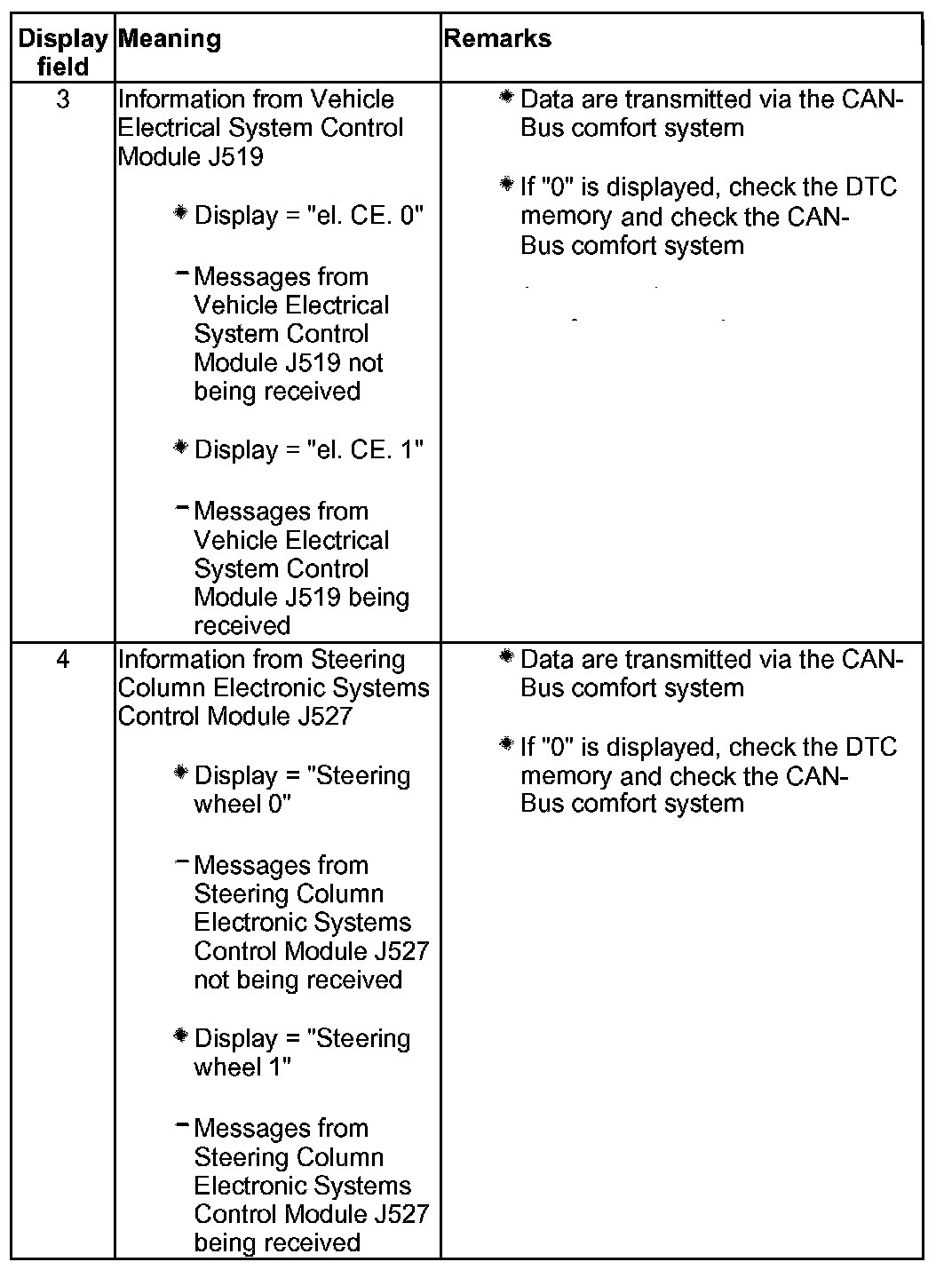

Display Field 3 - 4:
