Display Group 011




Display Group 011:

Measuring value of Instrument Panel Interior Temperature Sensor -G56-, the measured RPM of Interior Temperature Sensor Fan -V42-, coolant temperature transmitted by instrument cluster and output activation for idle air control increase

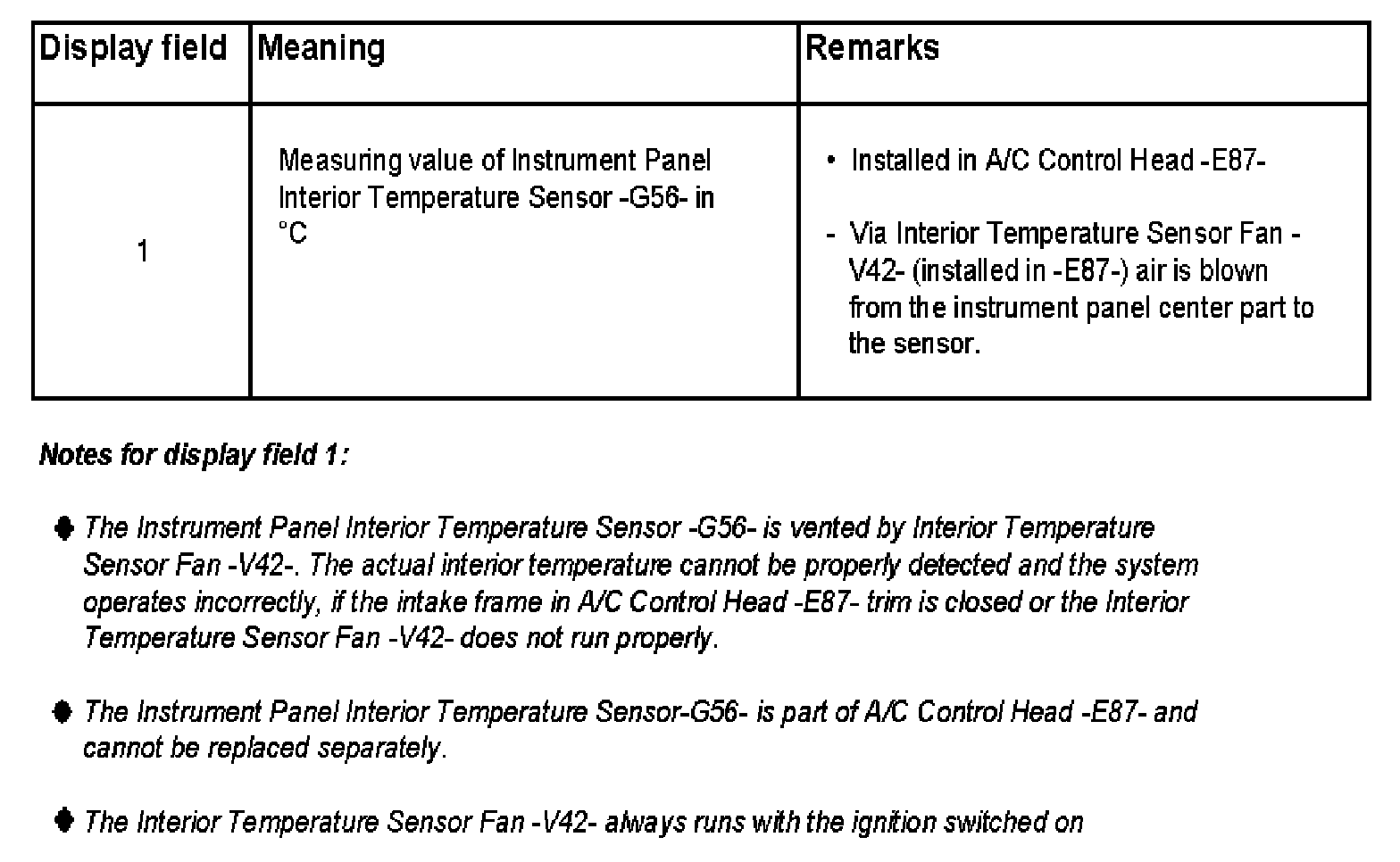

Display Field 1:

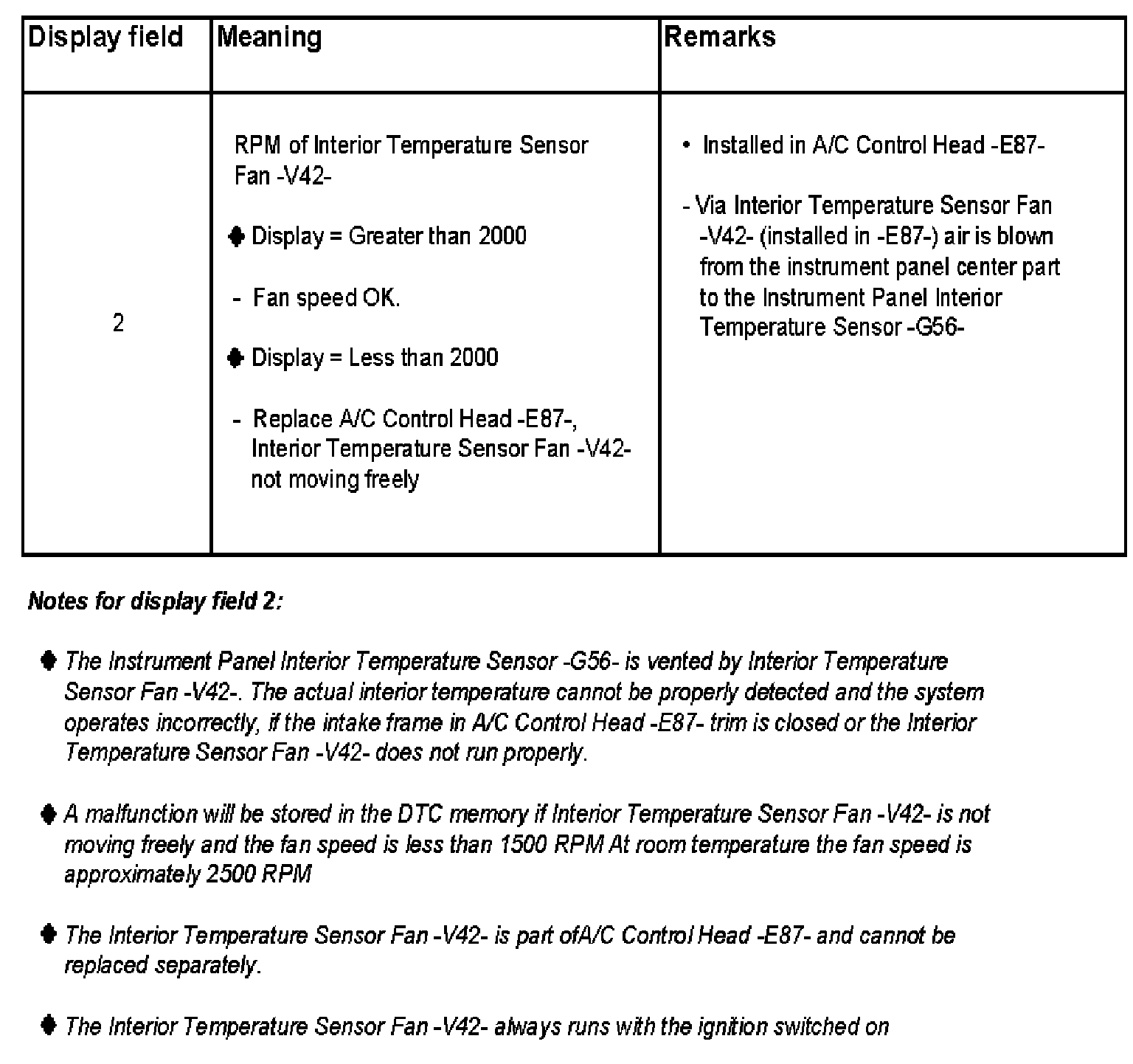

Display Field 2:

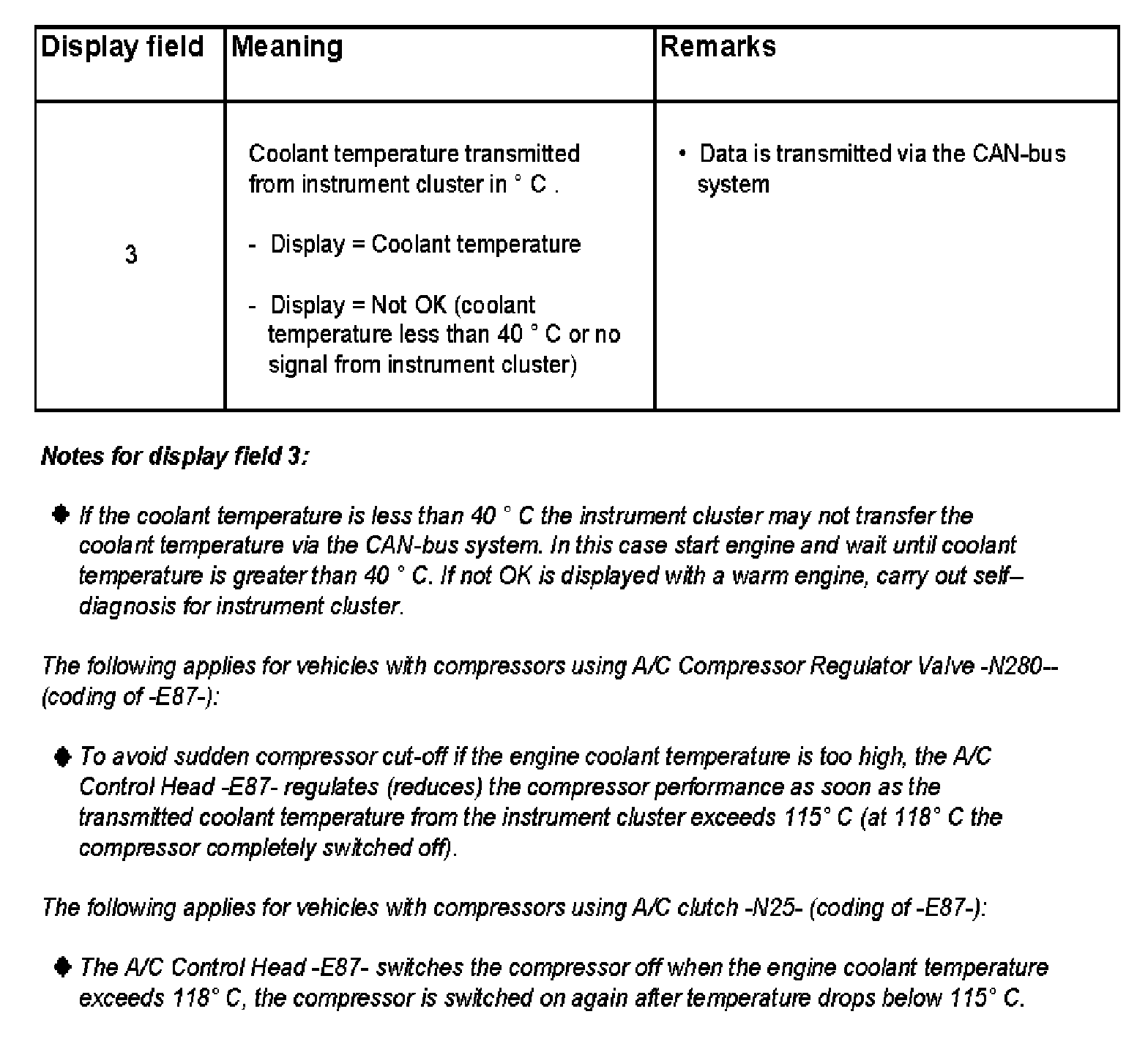

Display Field 3:

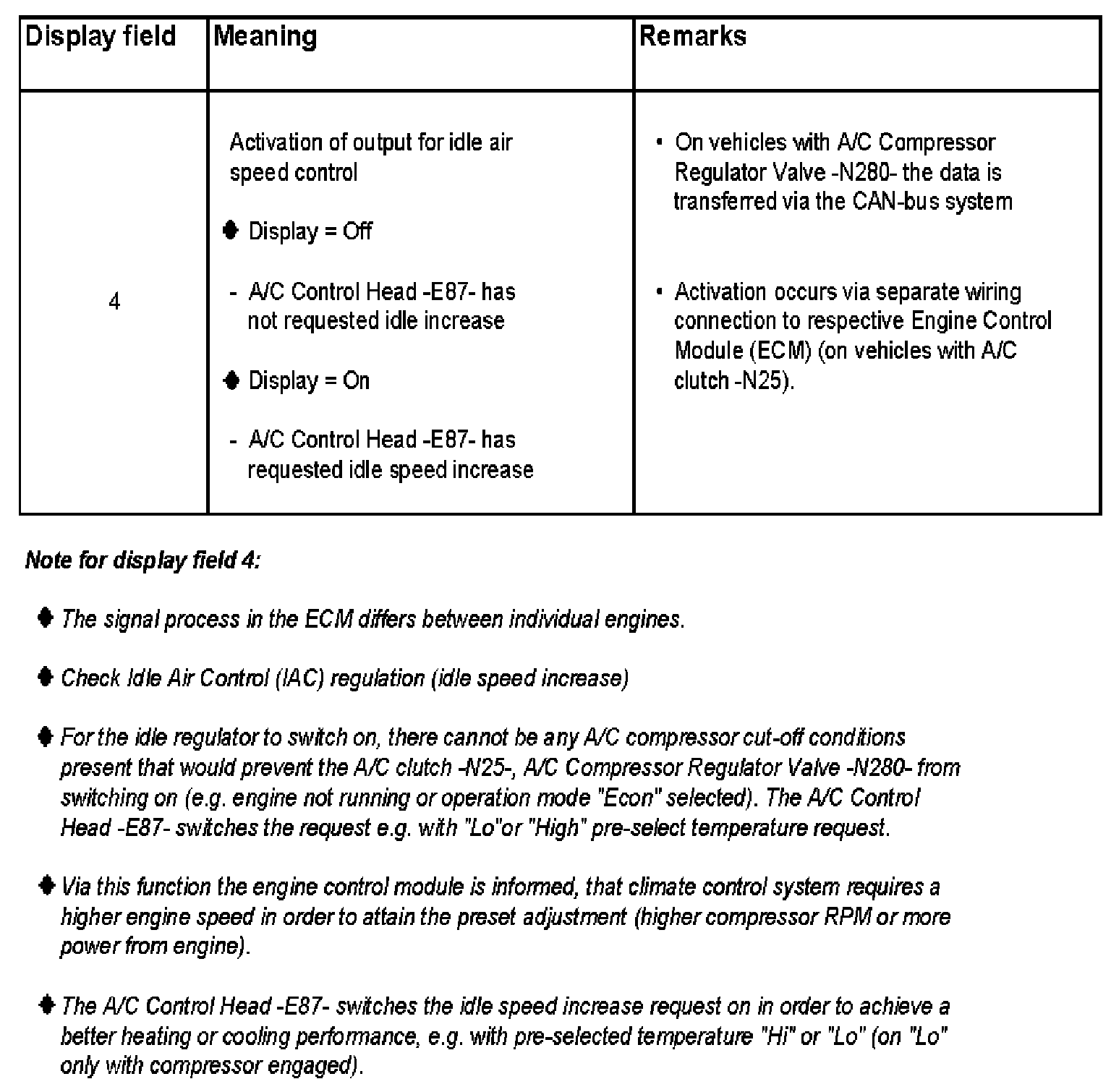

Display Field 4:
