Display Group 018




Display Group 018:

Measured voltage at terminal "75", terminal "15", time period "ignition off" transmitted from instrument cluster and transmitted ignition key assignment

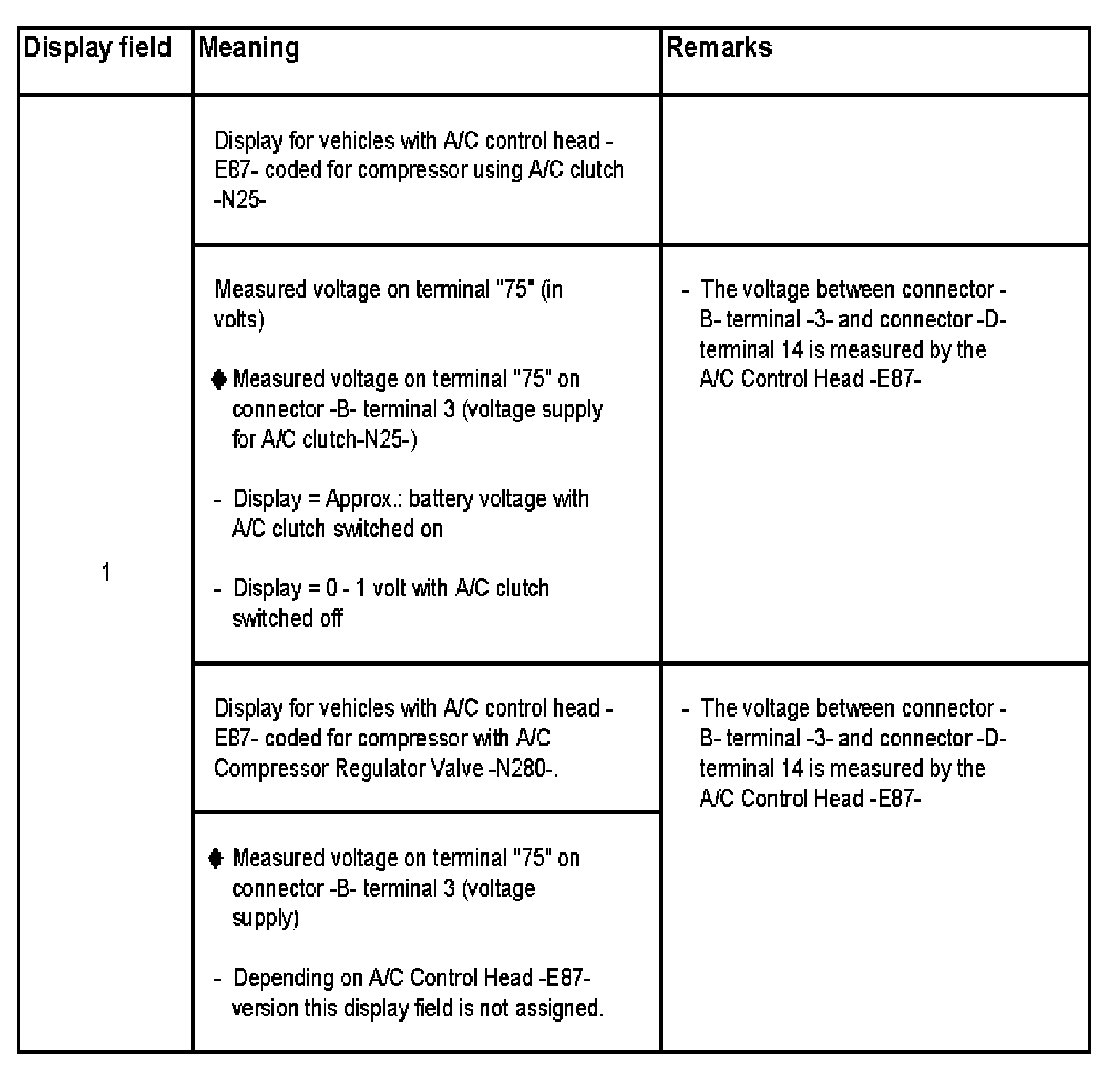

Display Field 1:

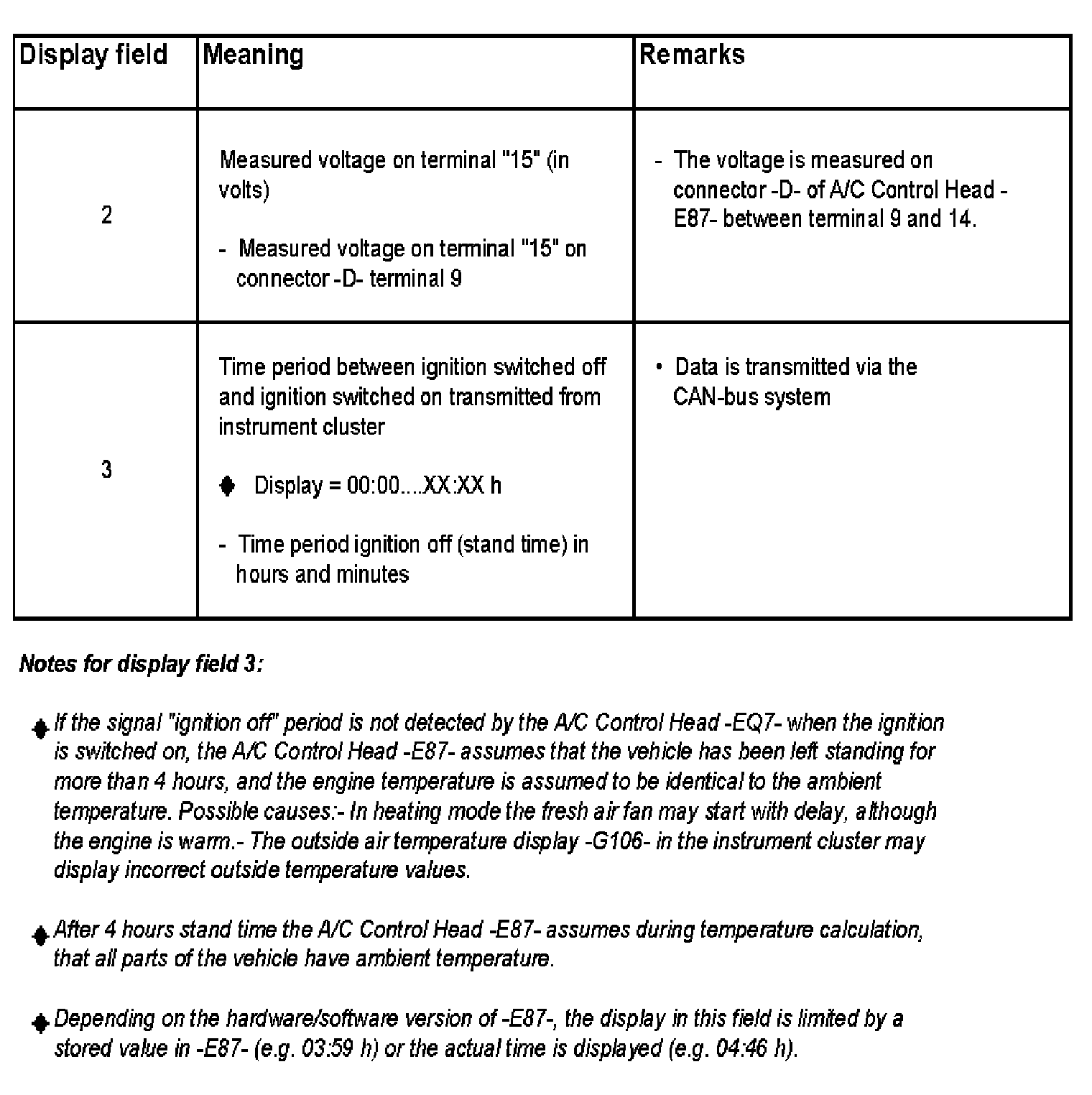

Display Field 2 - 3:

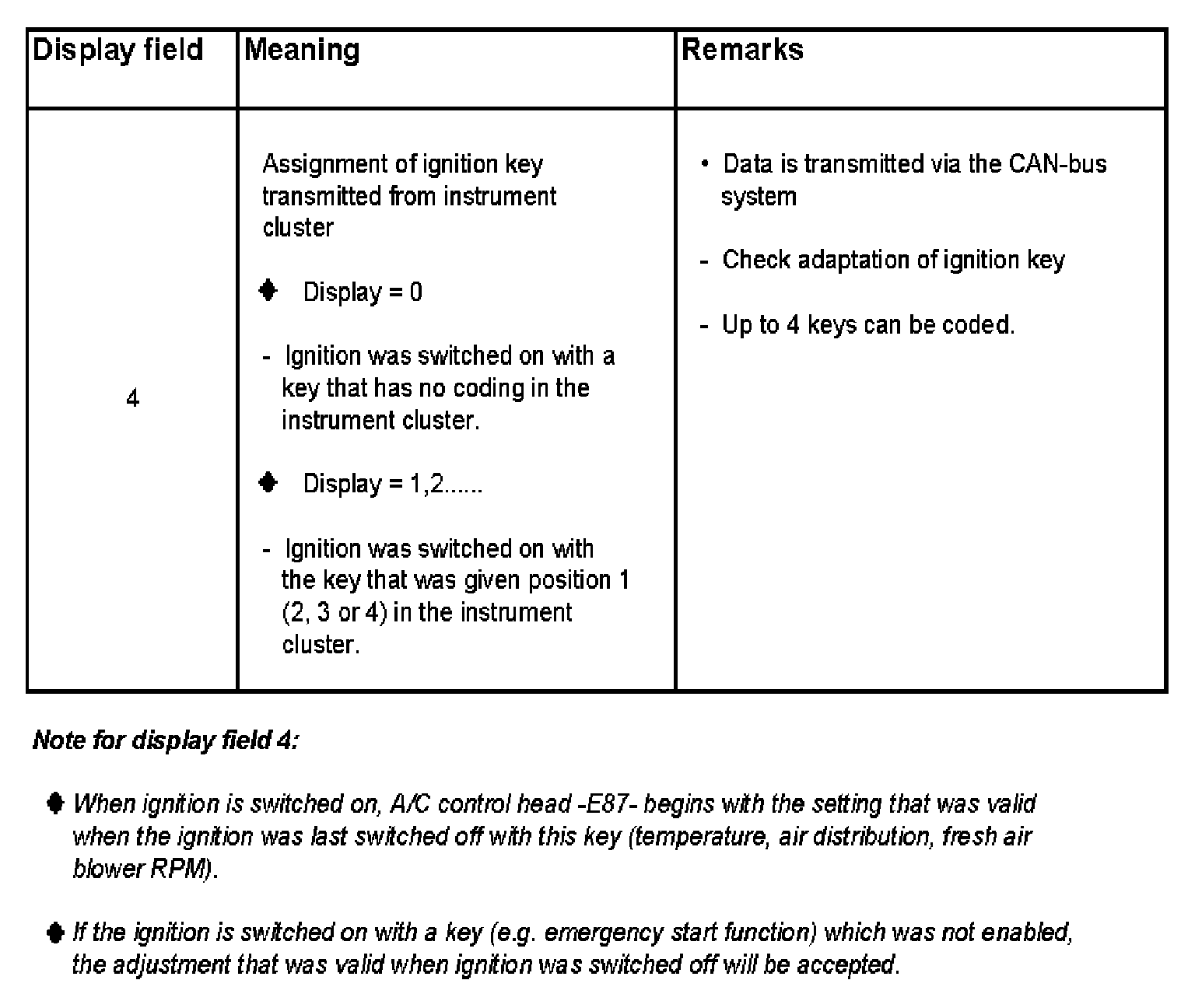

Display Field 4:
