Overview Of Selectable Display Group Numbers




Measuring Value Blocks

Overview of selectable display group numbers

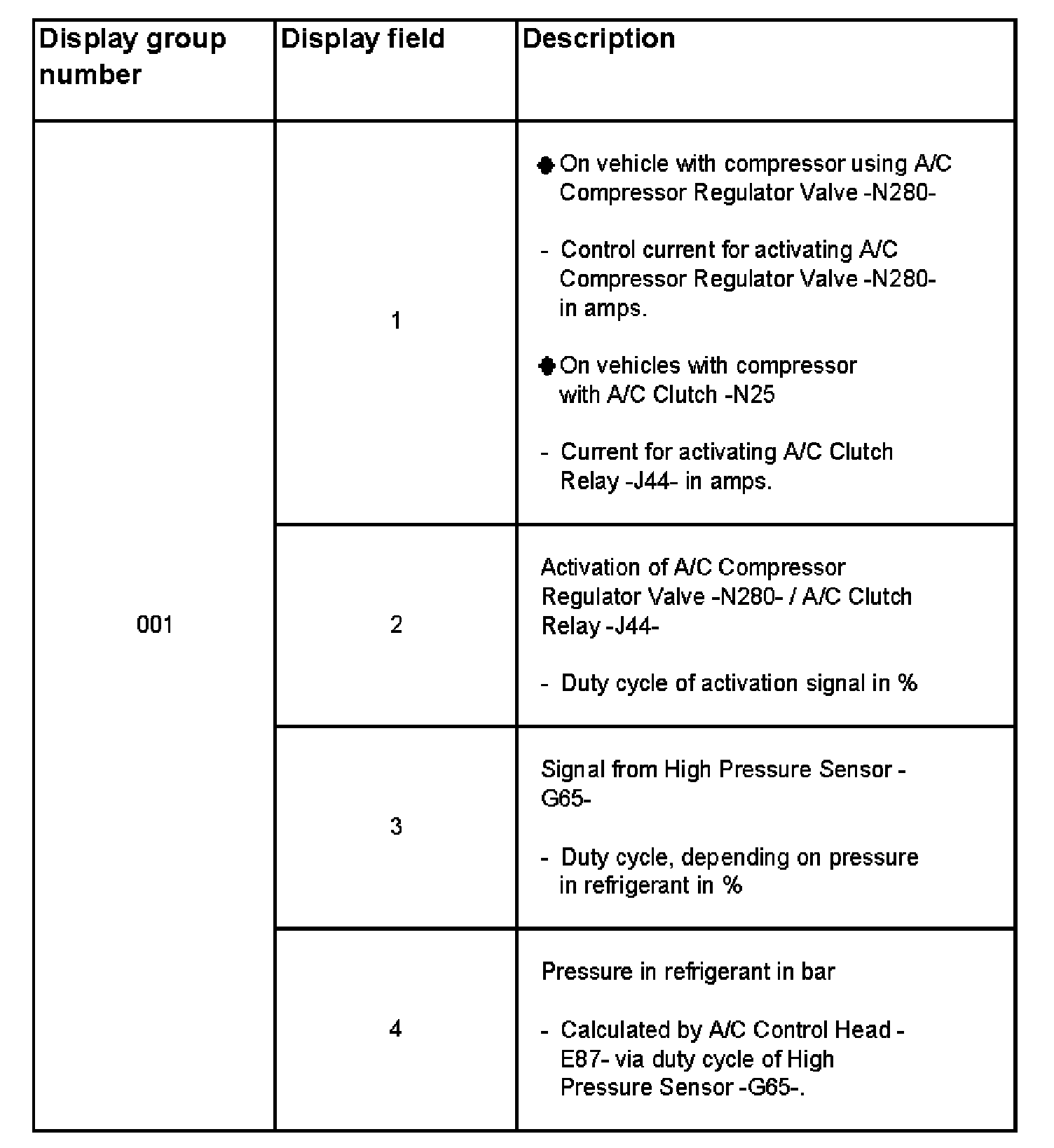

Display Group 001:

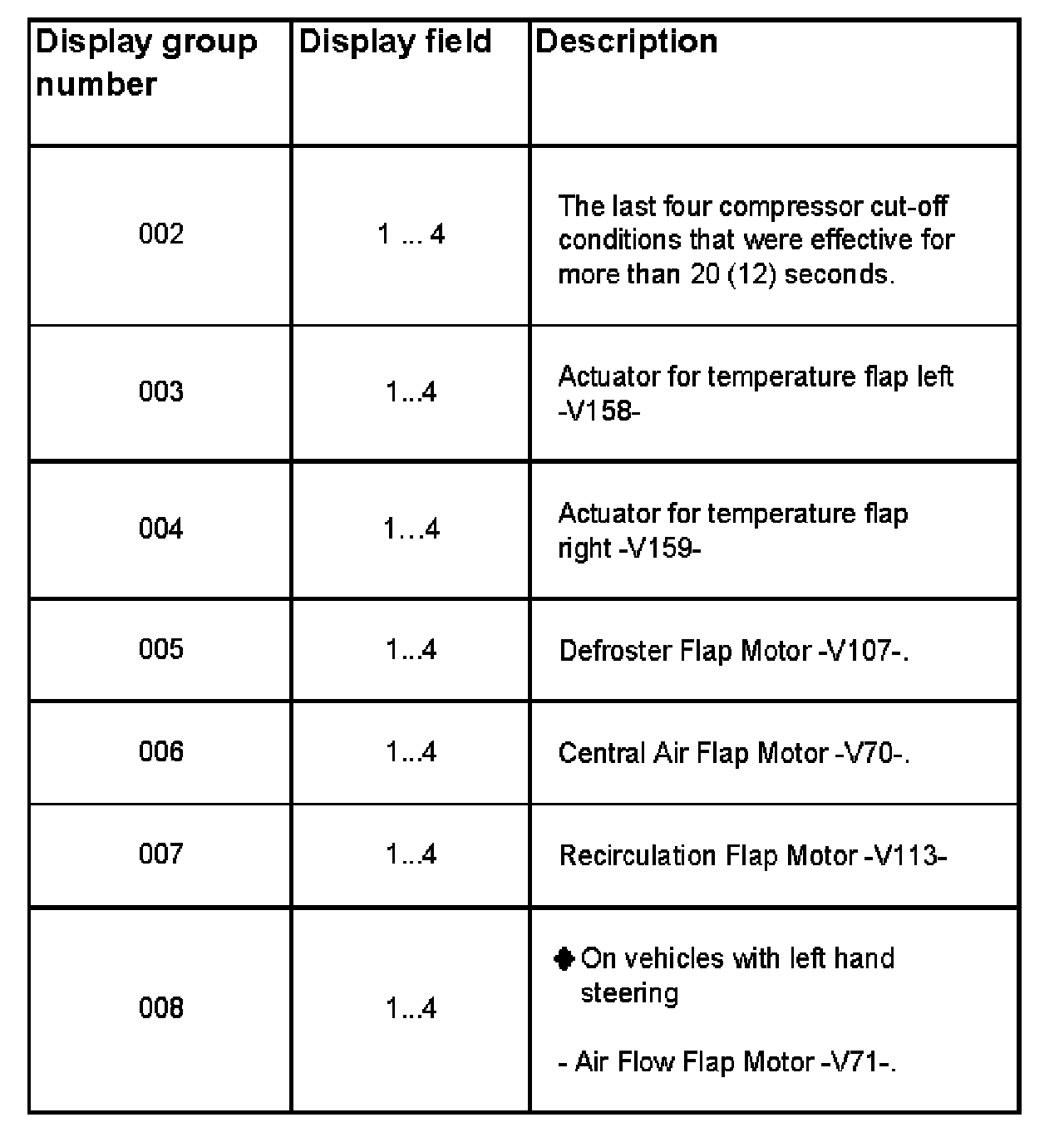

Display Group 002 - 008:

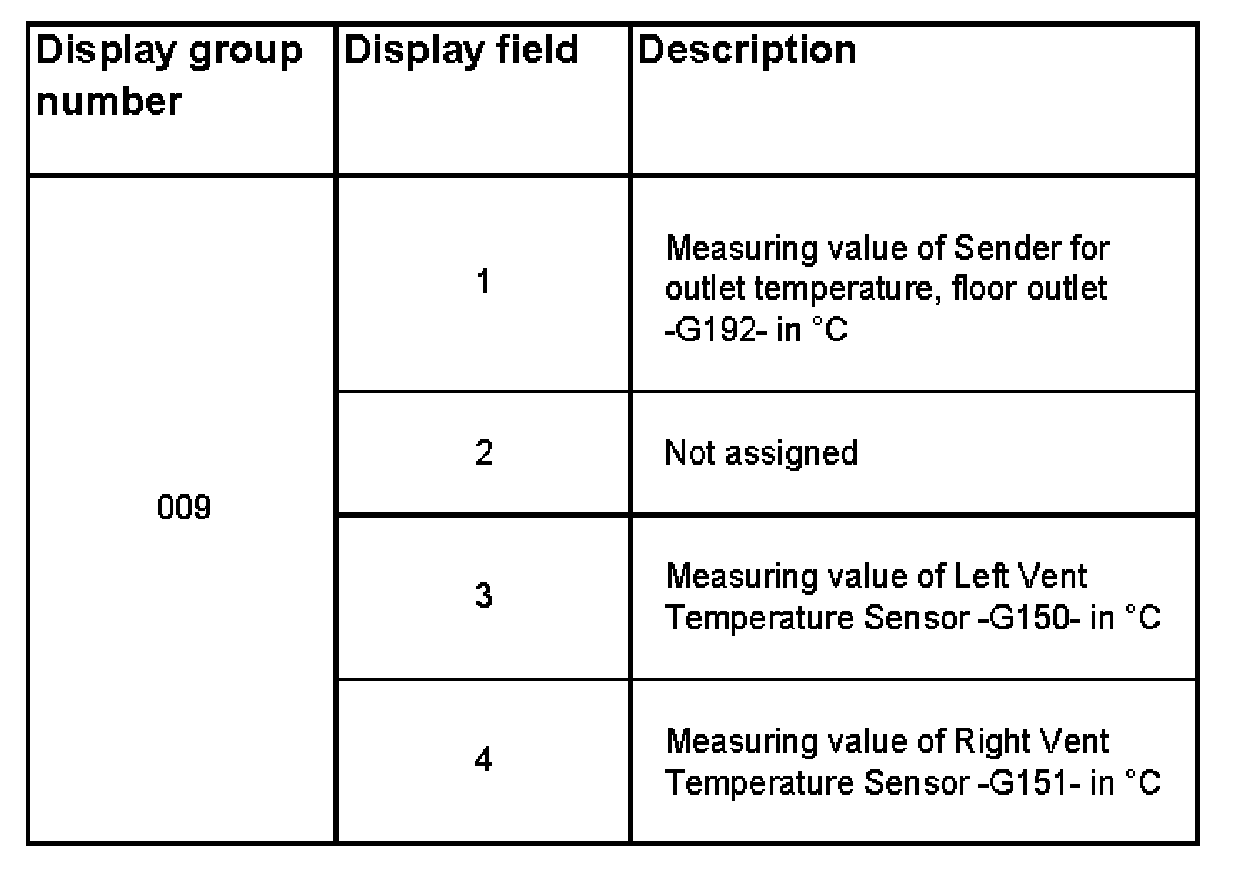

Display Group 009:

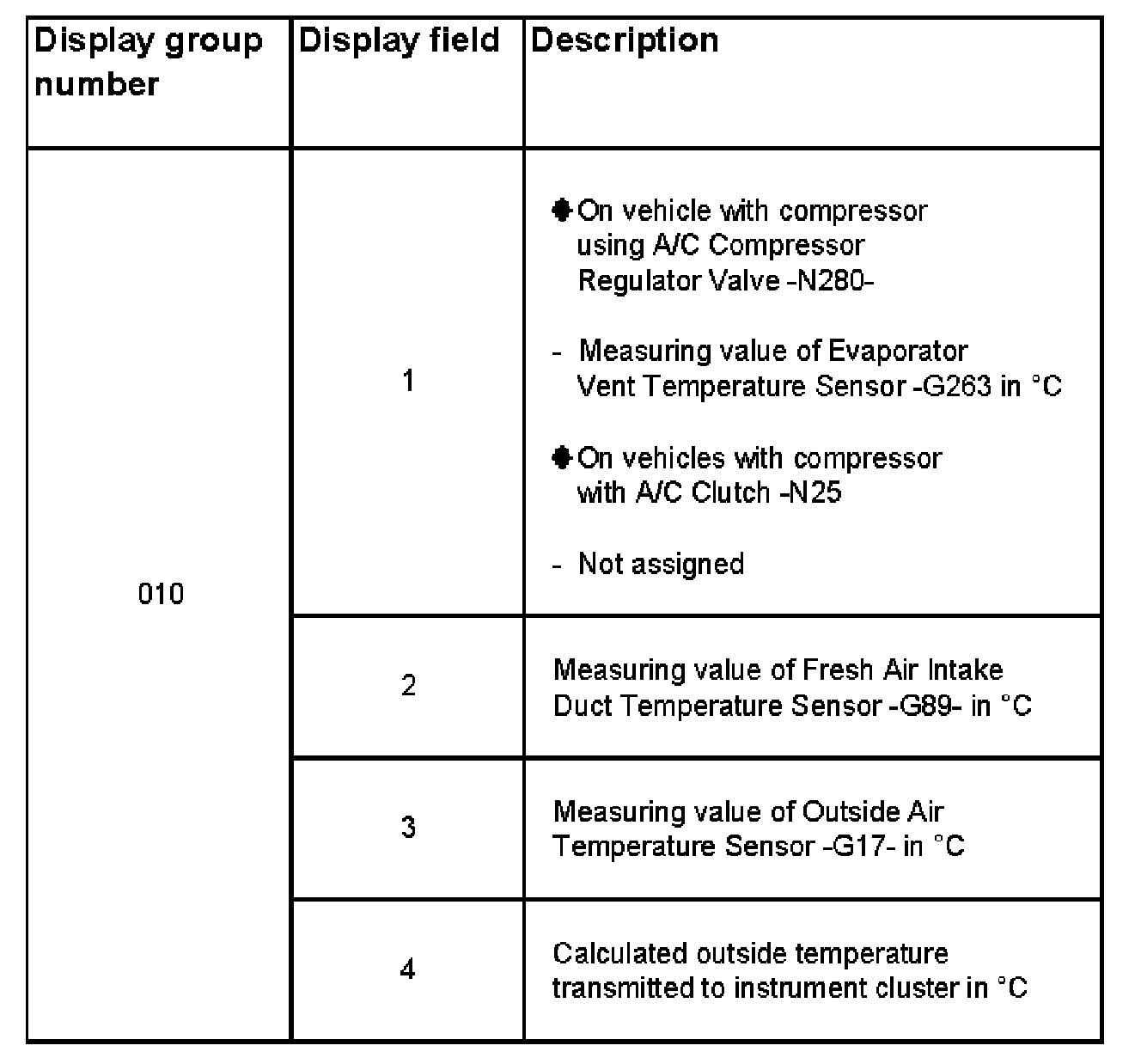

Display Group 010:

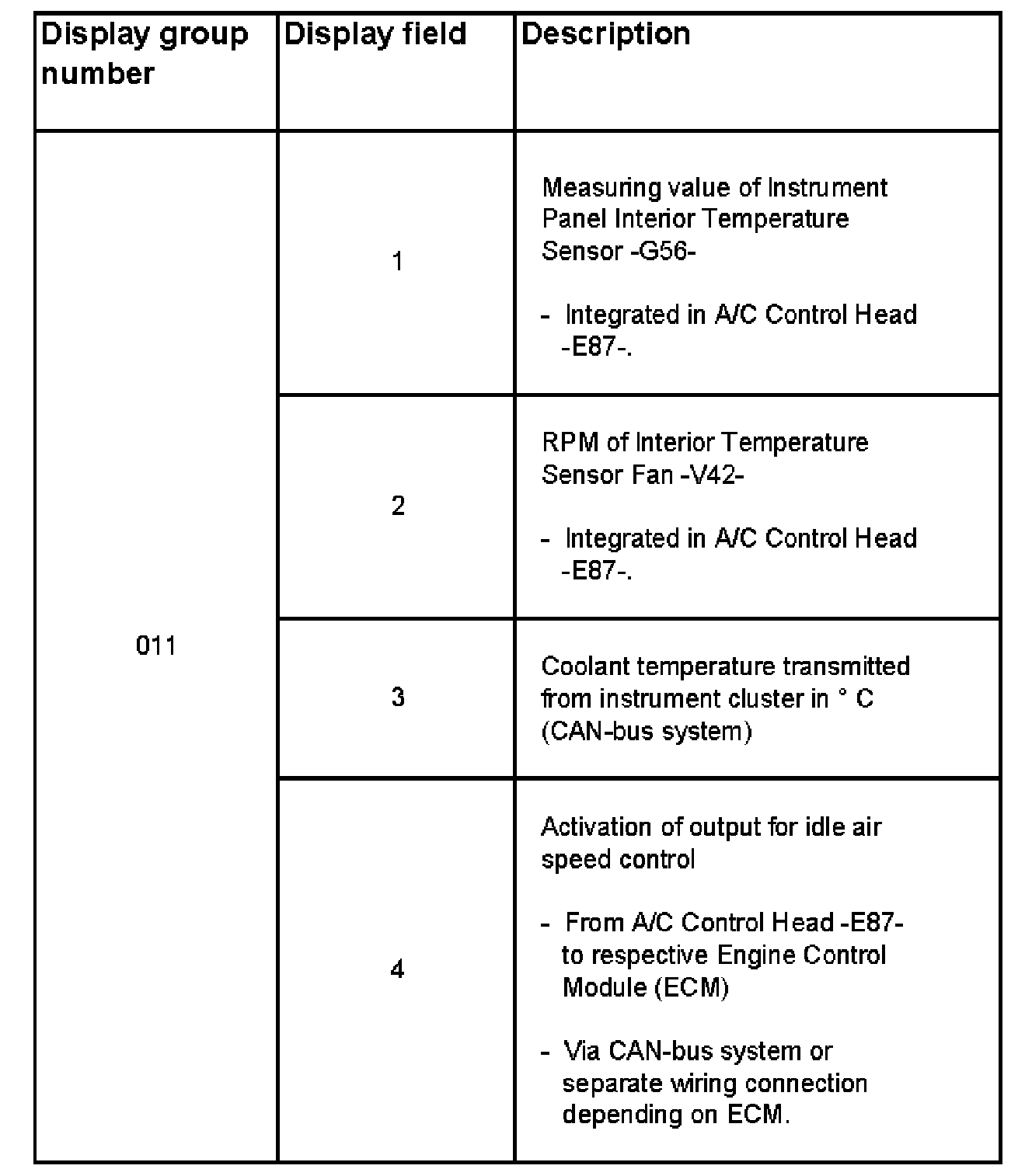

Display Group 011:

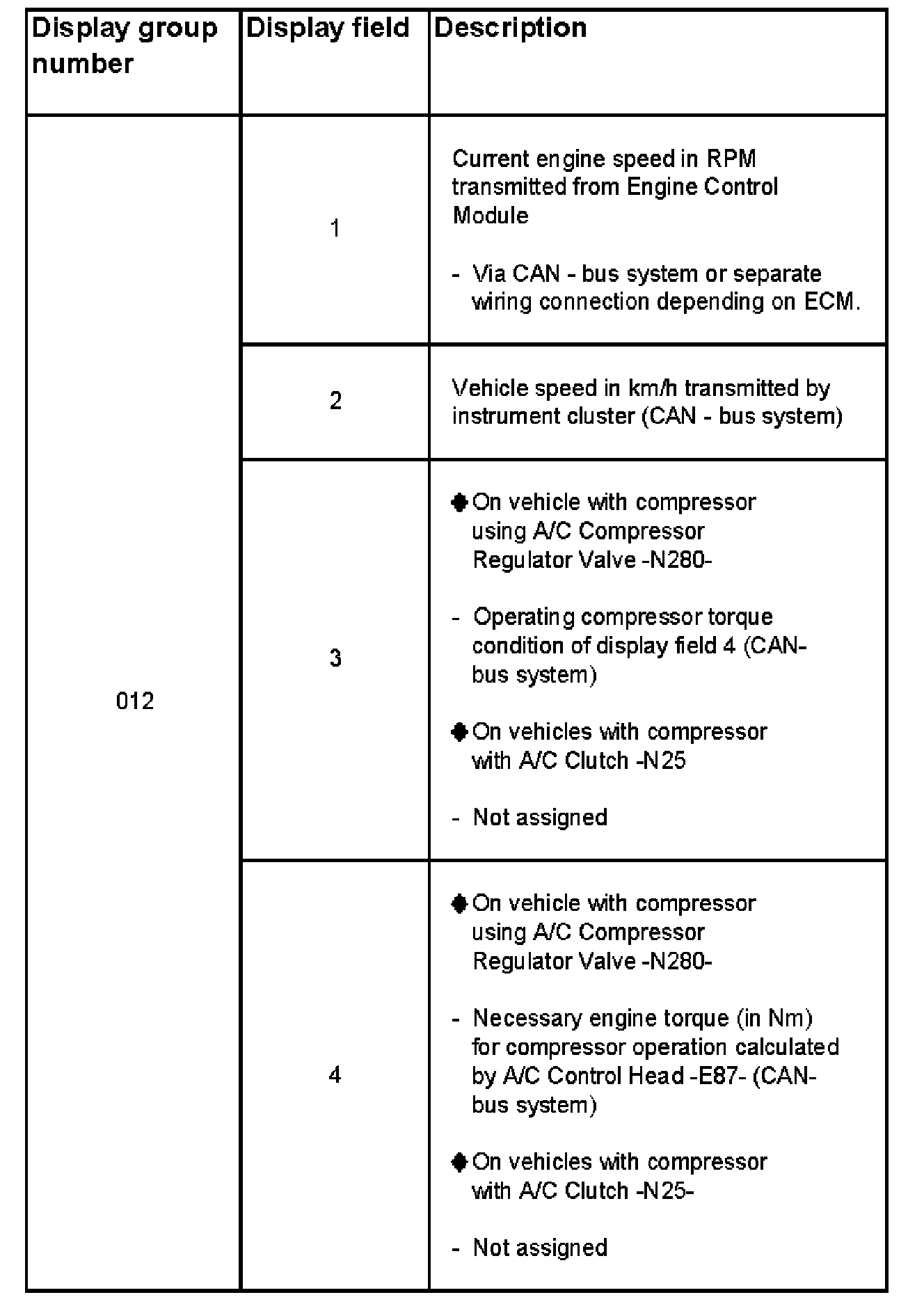

Display Group 012:

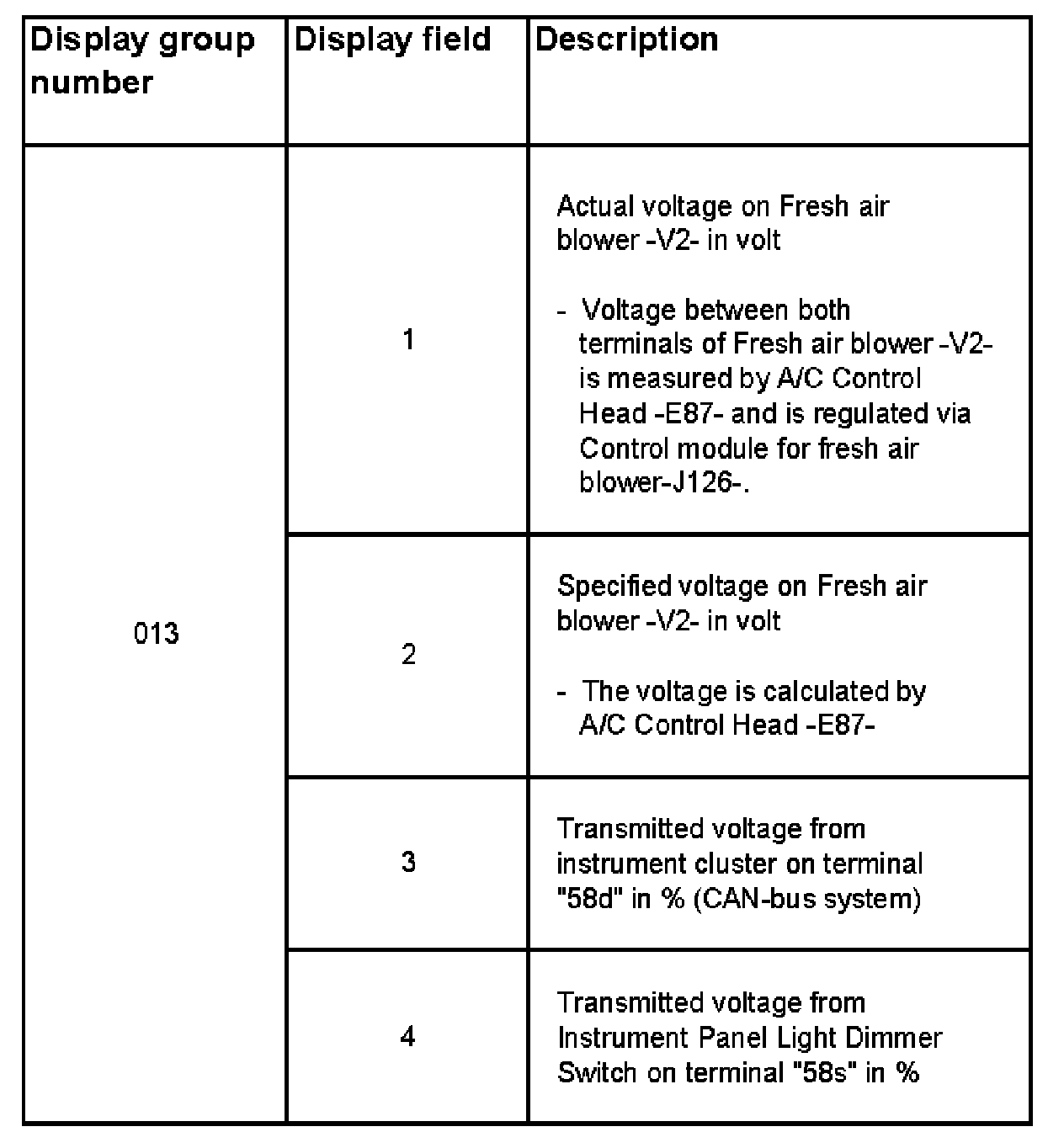

Display Group 013:

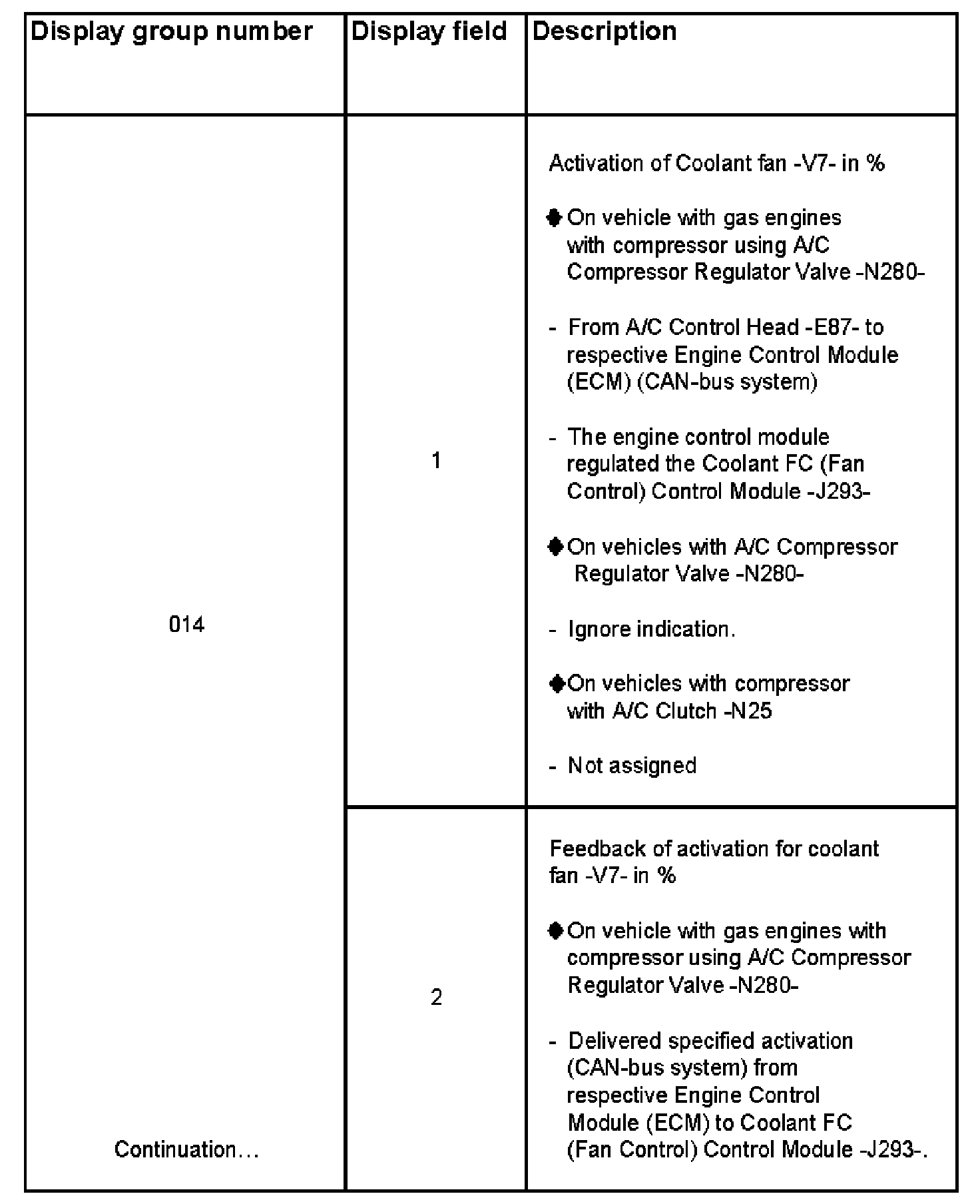

Display Group 014, Part 1:

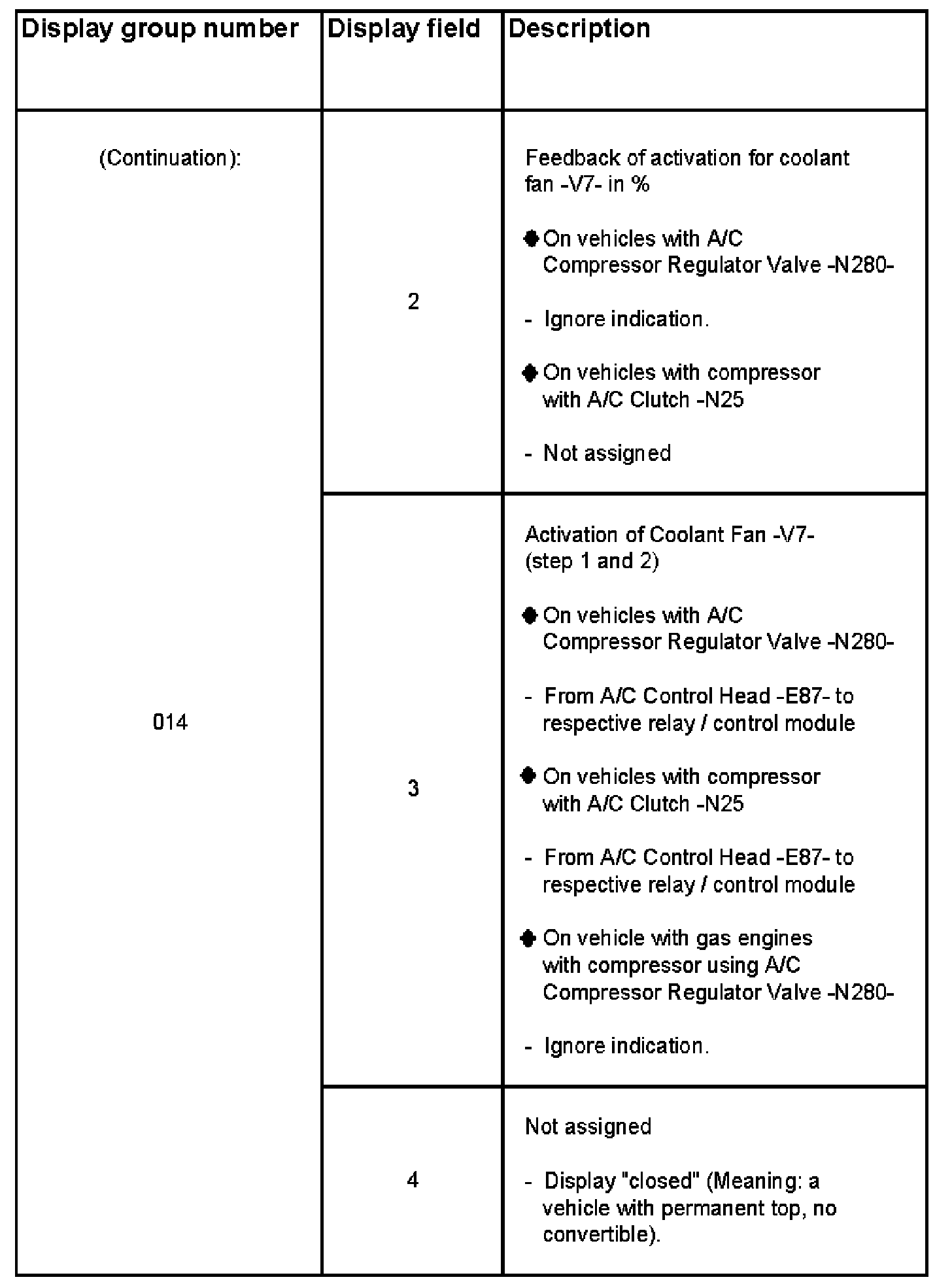

Display Group 014, Part 2:

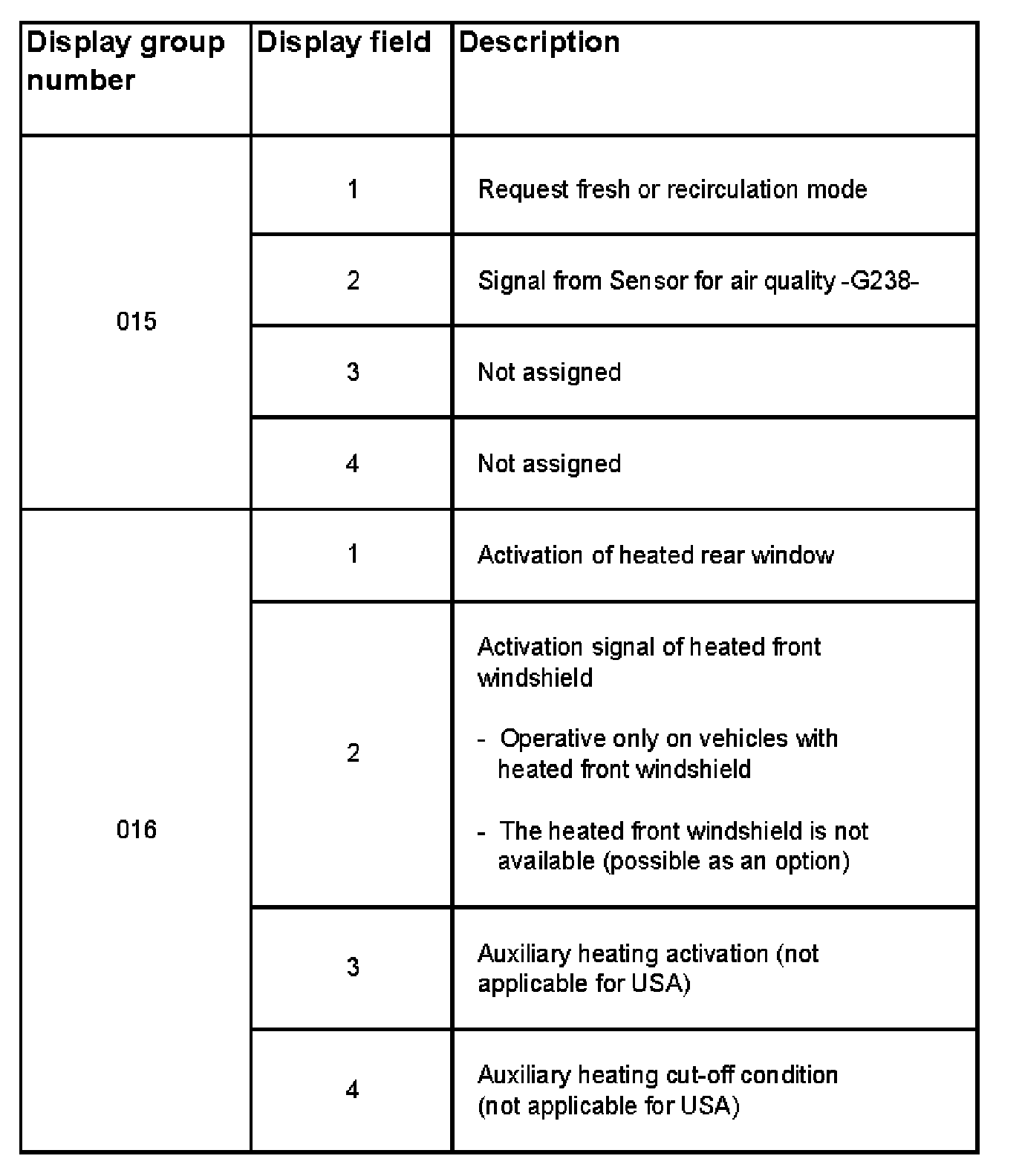

Display Group 015 - 016:

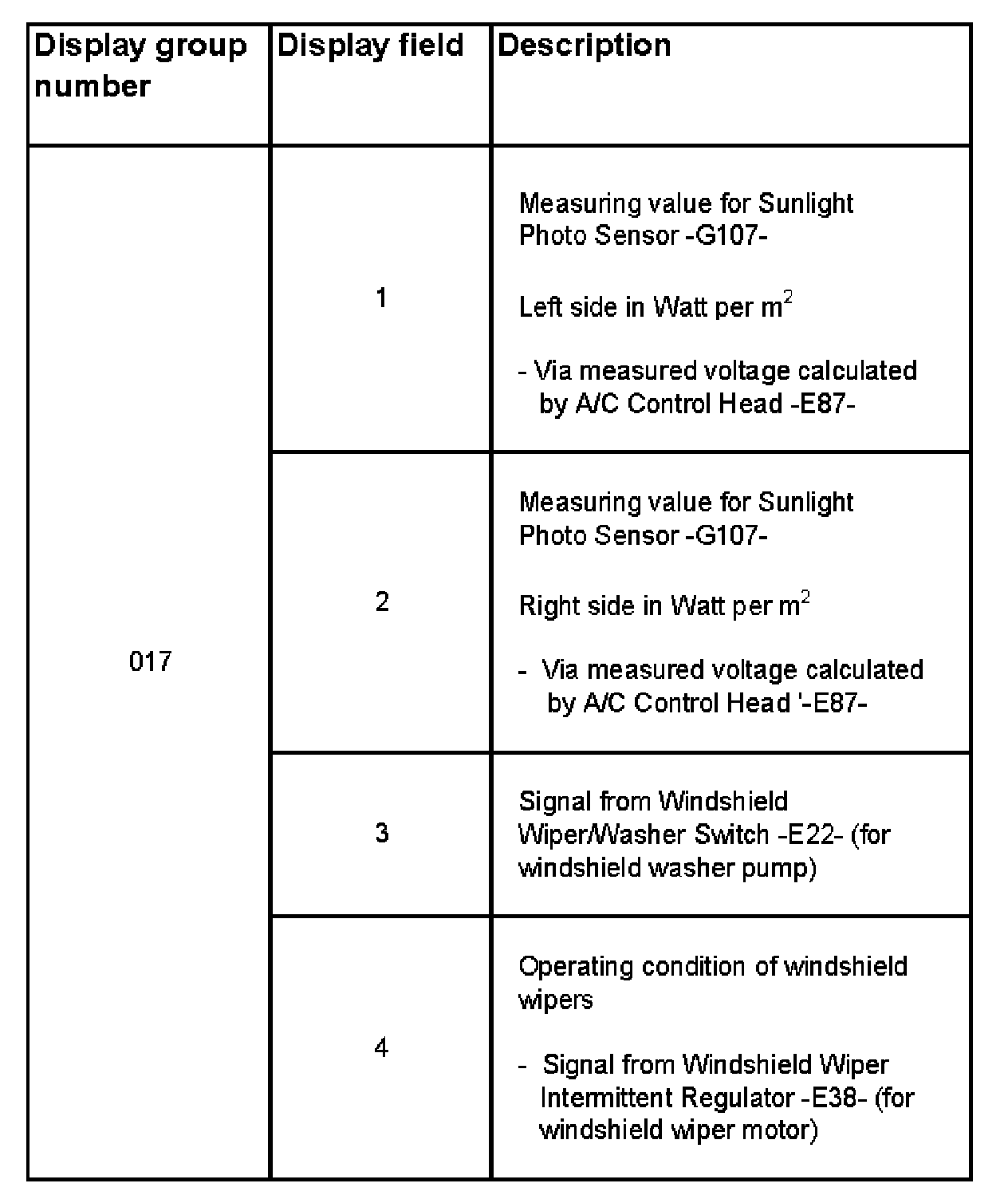

Display Group 017:

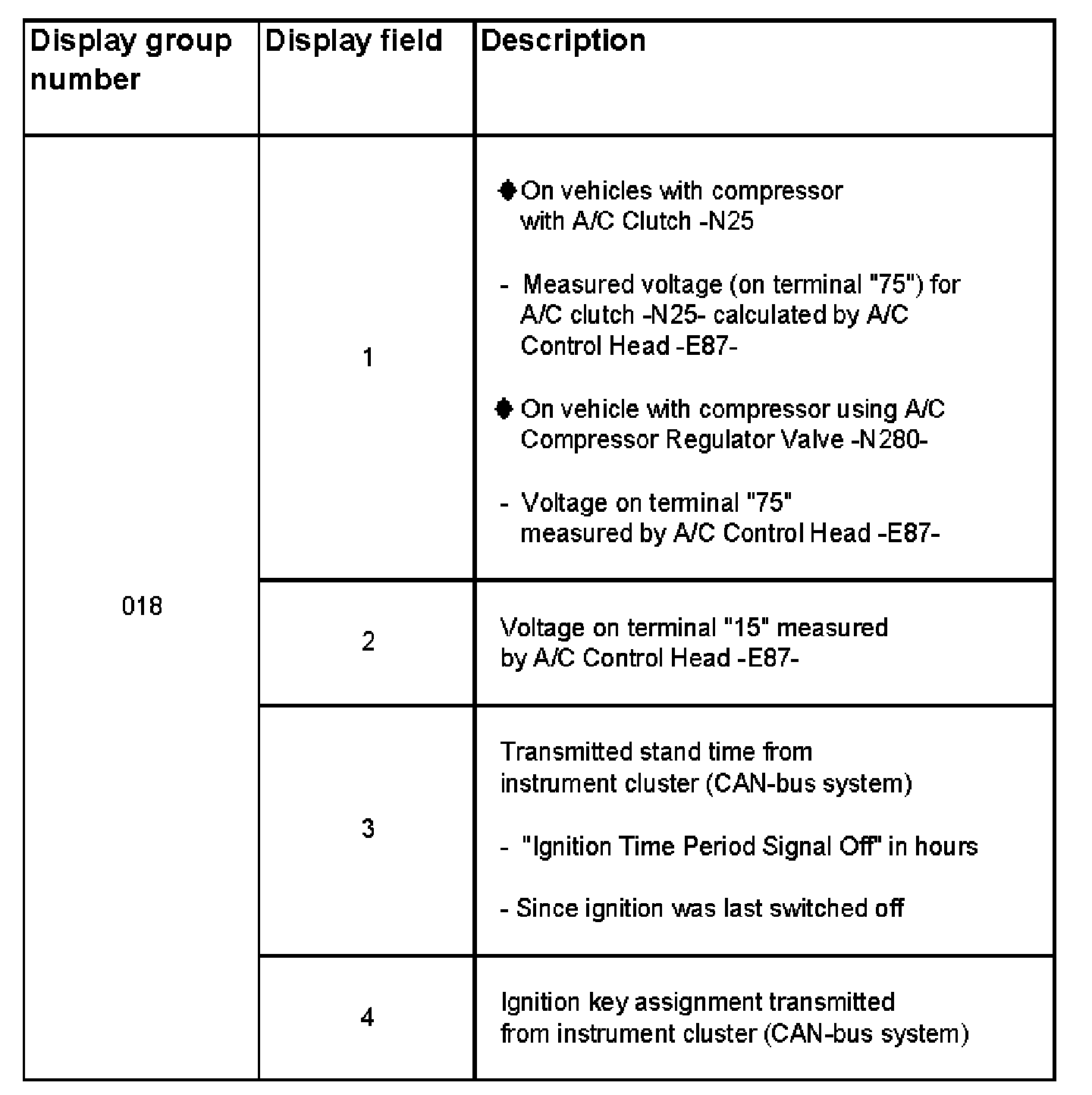

Display Group 018:

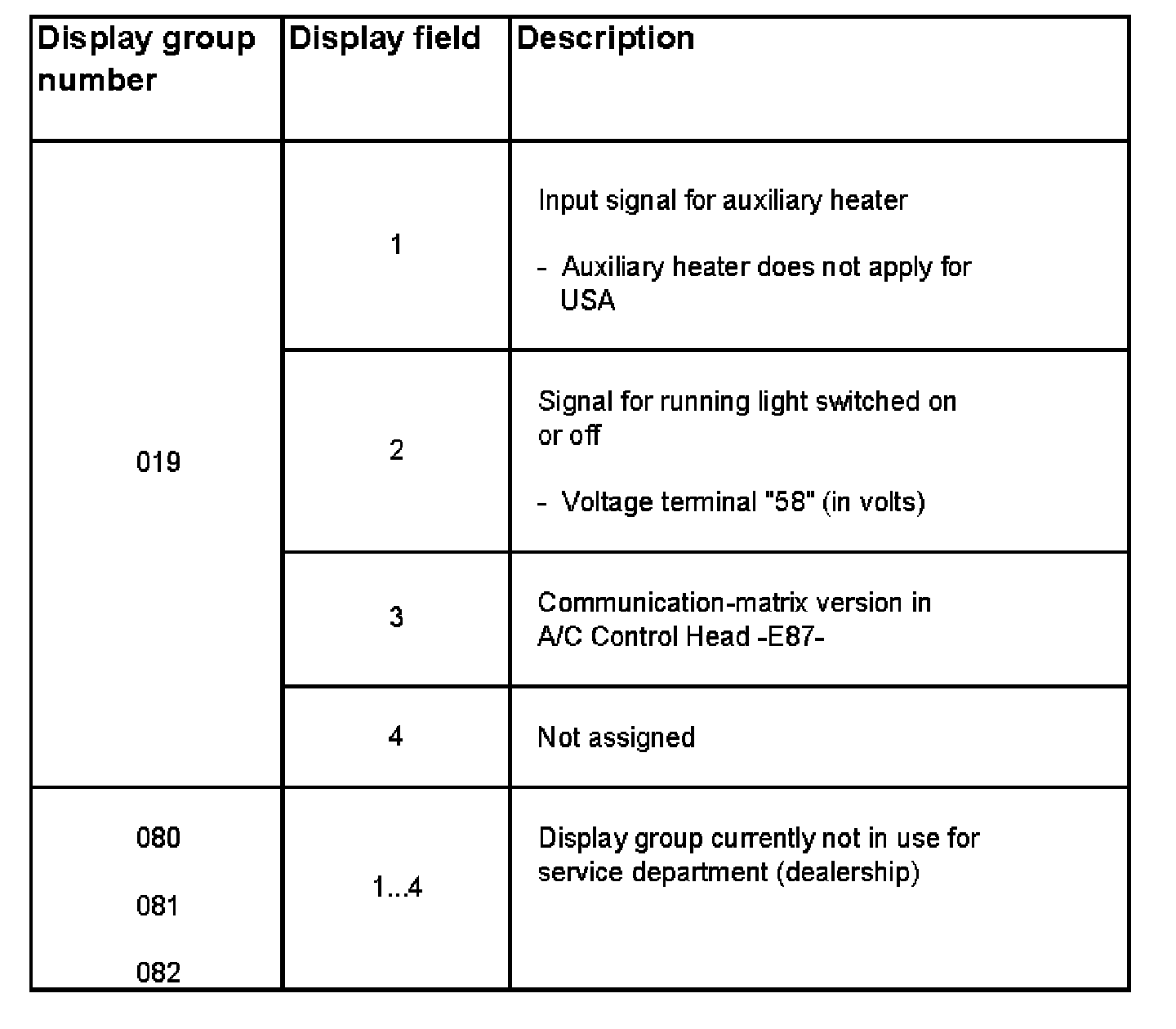

Display Group 019 - 082:
