Front Axle Toe, Adjusting

Front axle toe, adjusting
Specified values for wheel alignment.

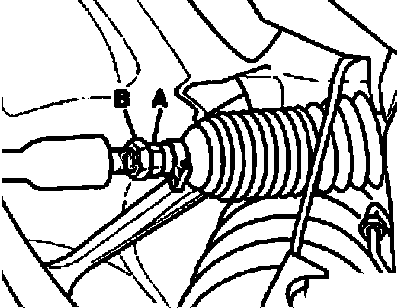

^ Loosen lock nut -B-.

^ Adjust toe on left and right wheels with hex -A-.
Be sure the boot Is not twisted after turning tie rods.
Twisted boots wear out quickly.
^ Tighten lock nut -B- to 40 Nm and check toe-in setting again.
Setting may change slightly after lock nut -13- is tightened.
If measured toe is still within specified range, adjustment is correct.
