Height Dimension, Determining

Height dimension, determining
The height dimension x is the value in mm between wheel center and lower edge of fender.

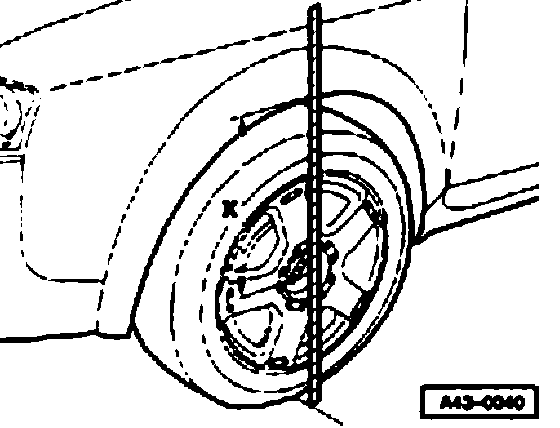

^ Measure rim diameter.
Measure value determines dimension: a

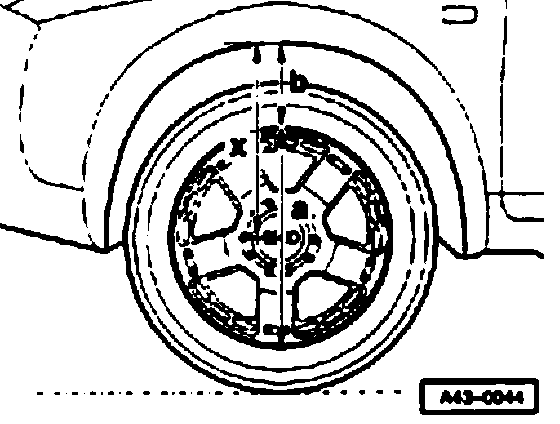

^ Measure vertically from upper edge of rim to lower edge of fender
Measure value determines dimension: b
Height dimension x results from:
x = a / 2 + b





^ After performing basic setting, check whether height dimension x = 402mm +/- 5 mm. If this is not the case, repeat basic setting.
^ After performing basic setting, check whether height difference between left and right side is not larger than +/- 4 mm. If this is not the case, repeat basic setting.
