Measurement Procedure

Measurement procedure
^ Be sure that the sliding plates and turn tables are not touching the end stop when checking wheel alignment
^ Vehicle accurately aligned, suspension bounced and rocked several times
^ Pick-up must be properly adjusted and attached to the vehicle (see equipment manufacturer's instructions)
^ Perform wheel run-out compensation.
^ Permissible lateral runout of the wheel rims can already exceed the specified toe-in setting tolerance. If compensation for wheel run-out is not performed, it will not be possible to obtain a correct toe-in adjustment
^ On the Audi Allroad, it may be necessary to move the turn tables after raising the vehicle, to reach free-play for the pick-up sensors.

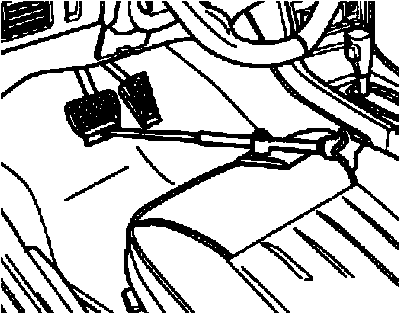

^ Insert brake pedal depressor.

CAUTION:: The vehicle must not be lifted at moving axle parts.
