Check Control Module Versions (Function 01)

Check Control Module Versions (function 01)

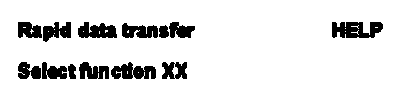

Display:
^ Press Buttons 0 and 1 (01 selects the "Check Control Module Versions" function).

Display:
^ Confirm entry using the Q button
^ Appears on the display after approximately 5 sec.:
- 4DO907273: Part number
- Tire pressure monitoring system: Component designation
- D209: Control module software version
- Code 20329: Code Control Module
- WSC 06812: Workshop code
^ Press the (arrow) button.
