Display Group 004

Read Measuring Value Block display group table

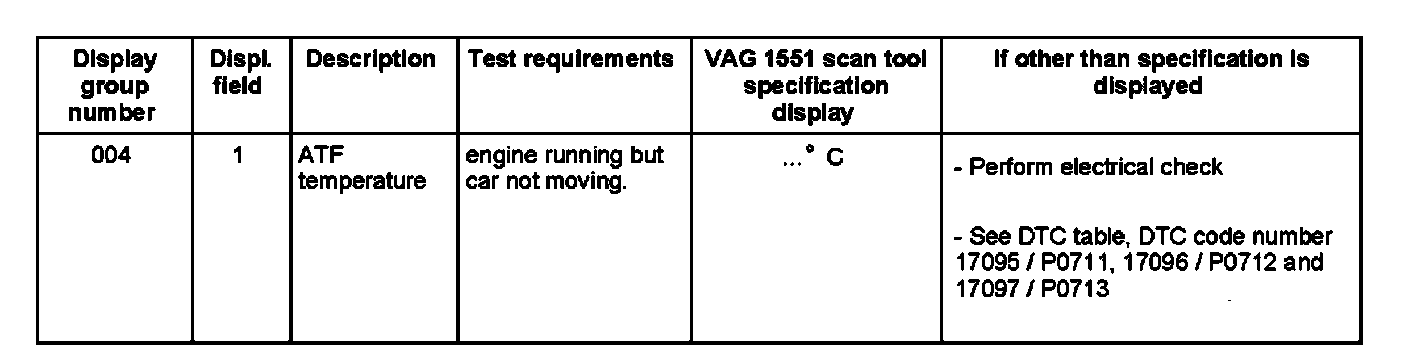

Display Group Number 004, Display Field (1):

Note to ATF temperature:
^ A recognized temperature of minus 50°C (-58°F) is likely to be a short circuit to Ground (GND).
^ A recognized temperature of 180°C (356°F) is likely to be a short circuit to plus (B+) or open circuit.

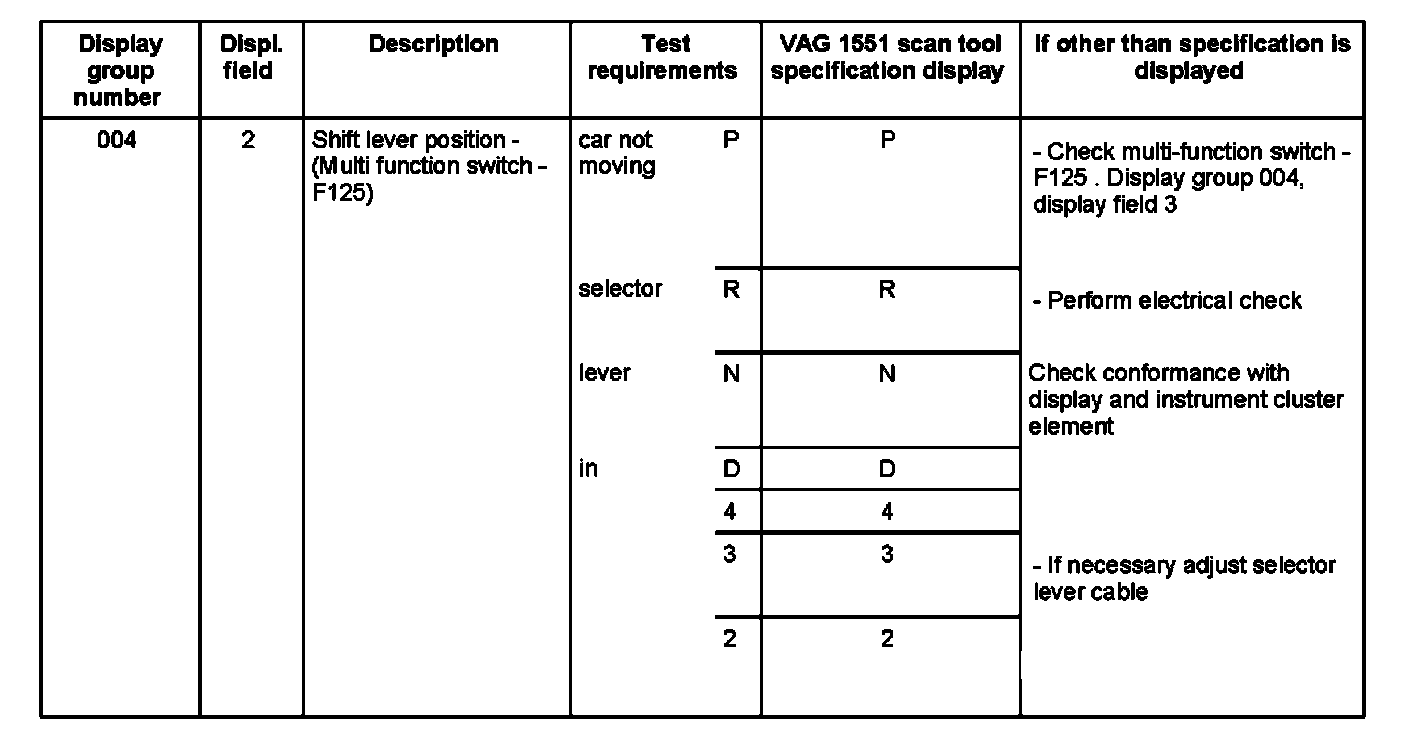

Display Group Number 004, Display Field (2):

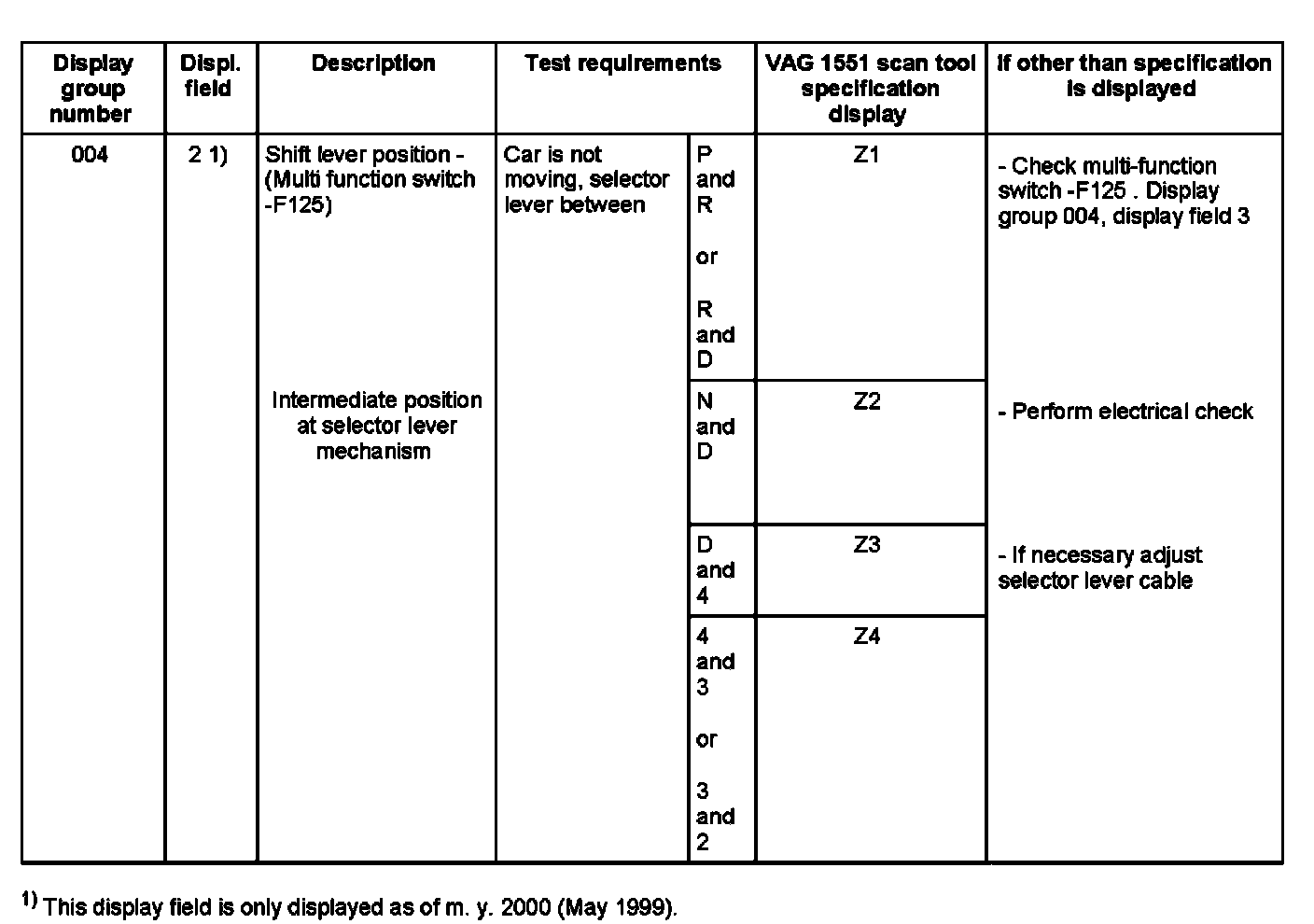

Display Group Number 004, Display Field (2):

Note to Intermediate transmission ranges:
If the selector lever is shifted into the shown intermediate positions, the VAG 1551 scan tool will display Z1" Z2" Z3" or Z4." In the instrument cluster display no selected transmission range may be displayed, meaning that only PRND432 is shown without a particular range illuminated.

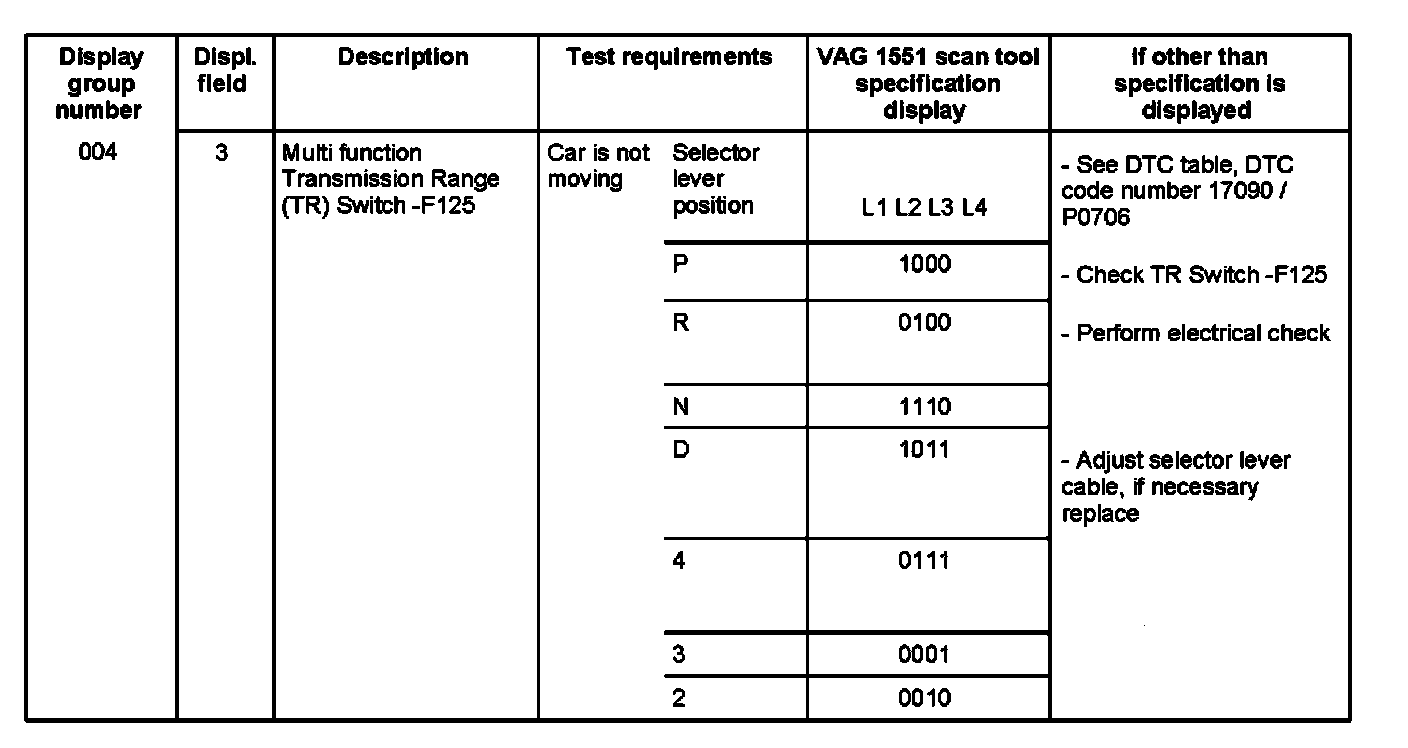

Display Group Number 004, Display Field (3):

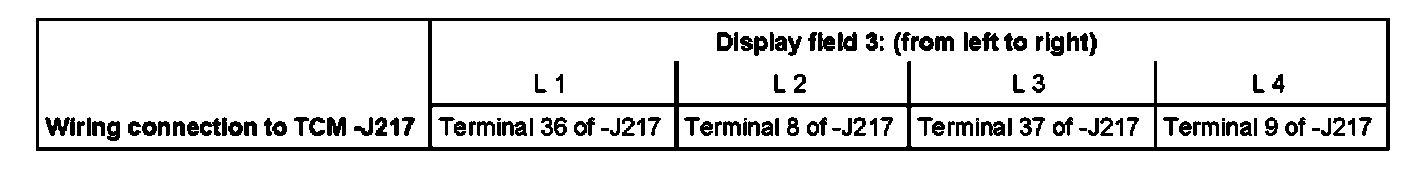

Display Field 3: (From Left To Right):

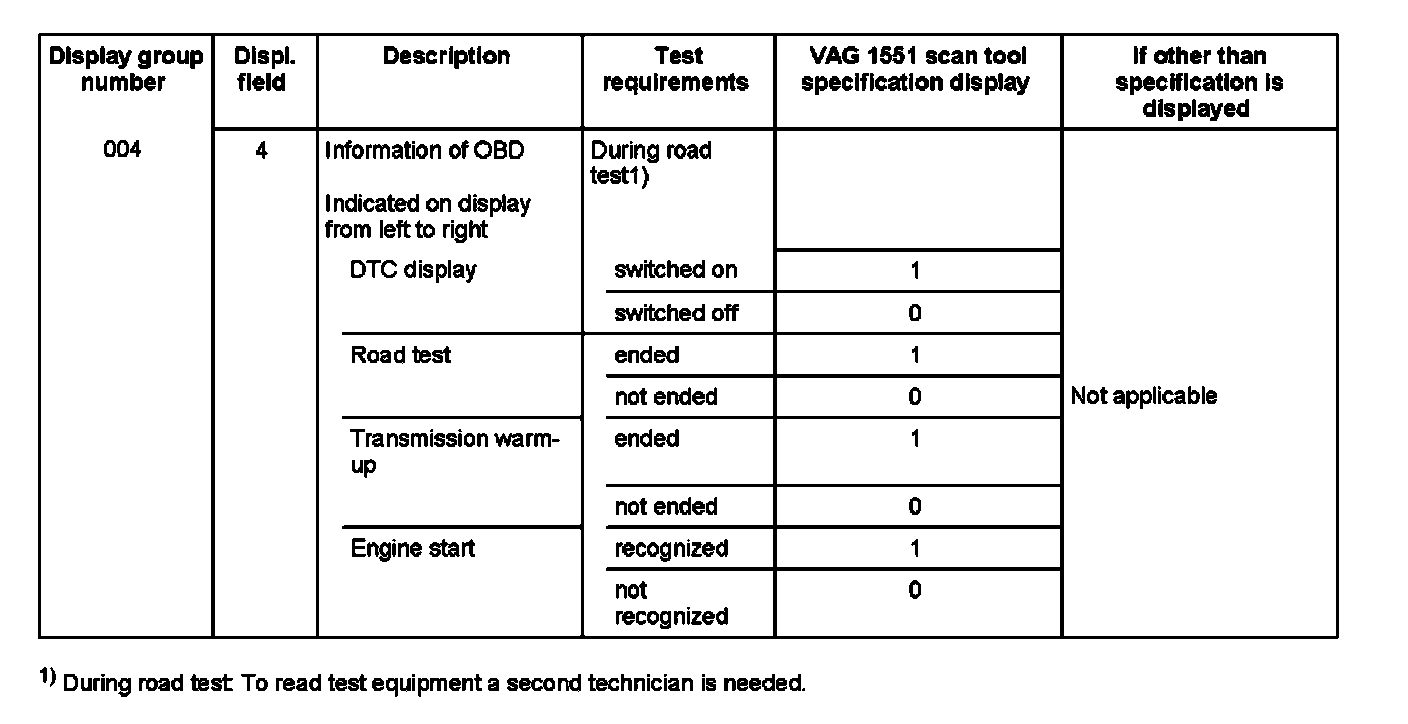

Display Group Number 004, Display Field (4):

Note to display field 3, display group number 004:
^ The input signals of the TR Switch -F125 can be checked at the TCM.
