Display Group 005



Read Measuring Value Block display group table

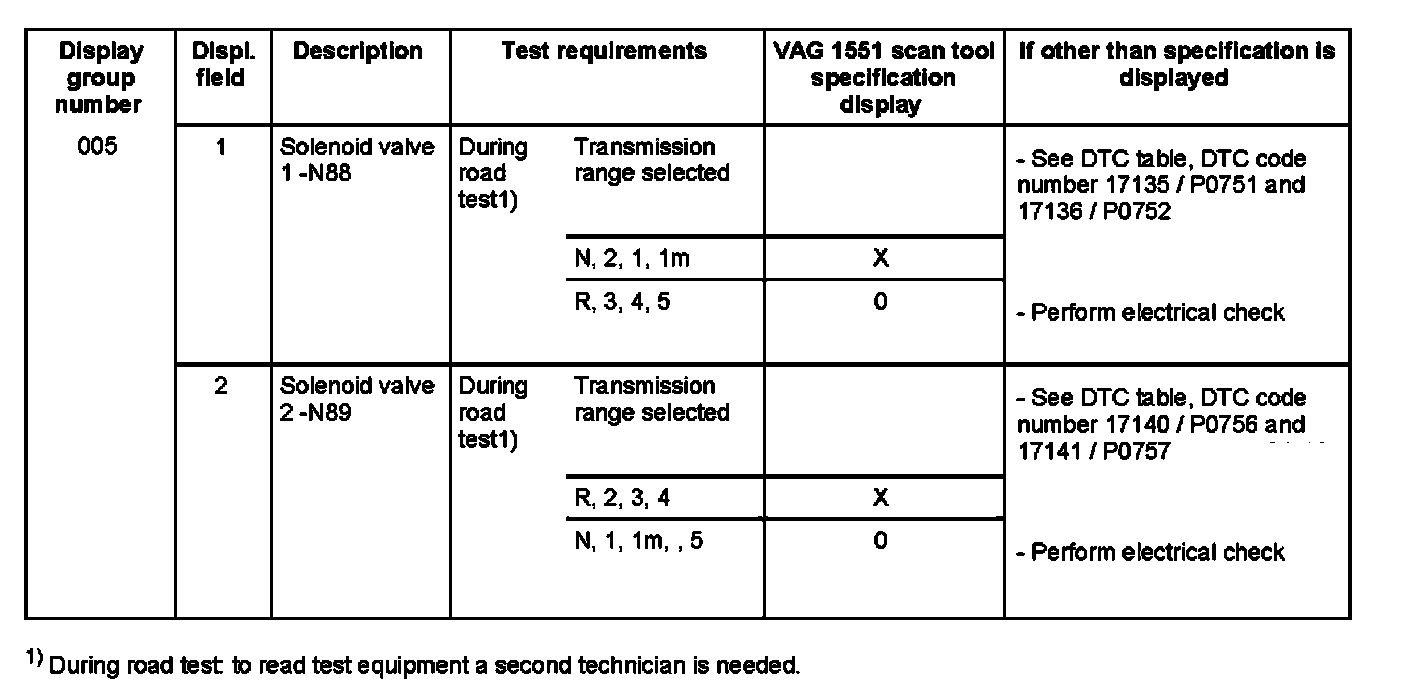

Display Group Number 005, Display Field (1 - 2):





Note to Display group number 005, display field I to 3;
^ Not shifted (not active) solenoid valves are shifted with "0", (active) solenoid valves are displayed with ~X".

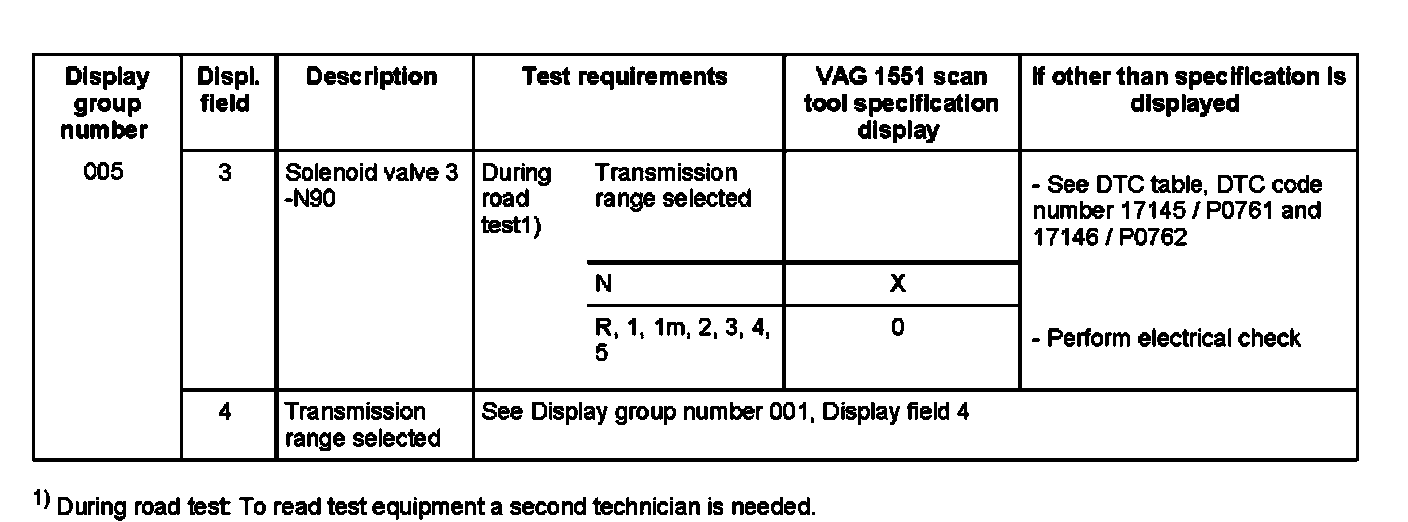

Display Group Number 005, Display Field (3 - 4):





Note to display group number 005, display field 1 through 3;
^ Not shifted (not active) solenoid valves are shifted with "0", (active) solenoid valves are displayed with ~X".
