Display Group 006

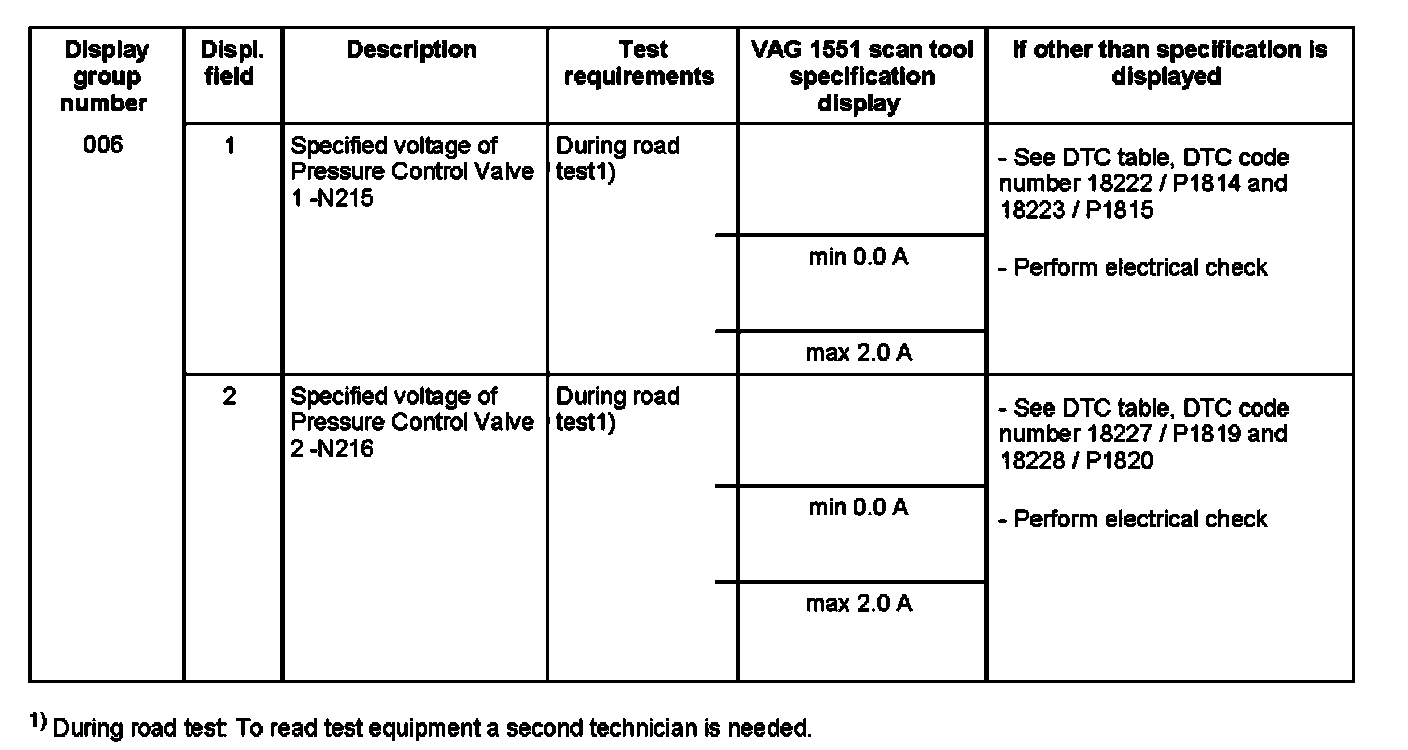

Read Measuring Value Block display group tableDisplay Group Number 006, Display Field (1 - 2):

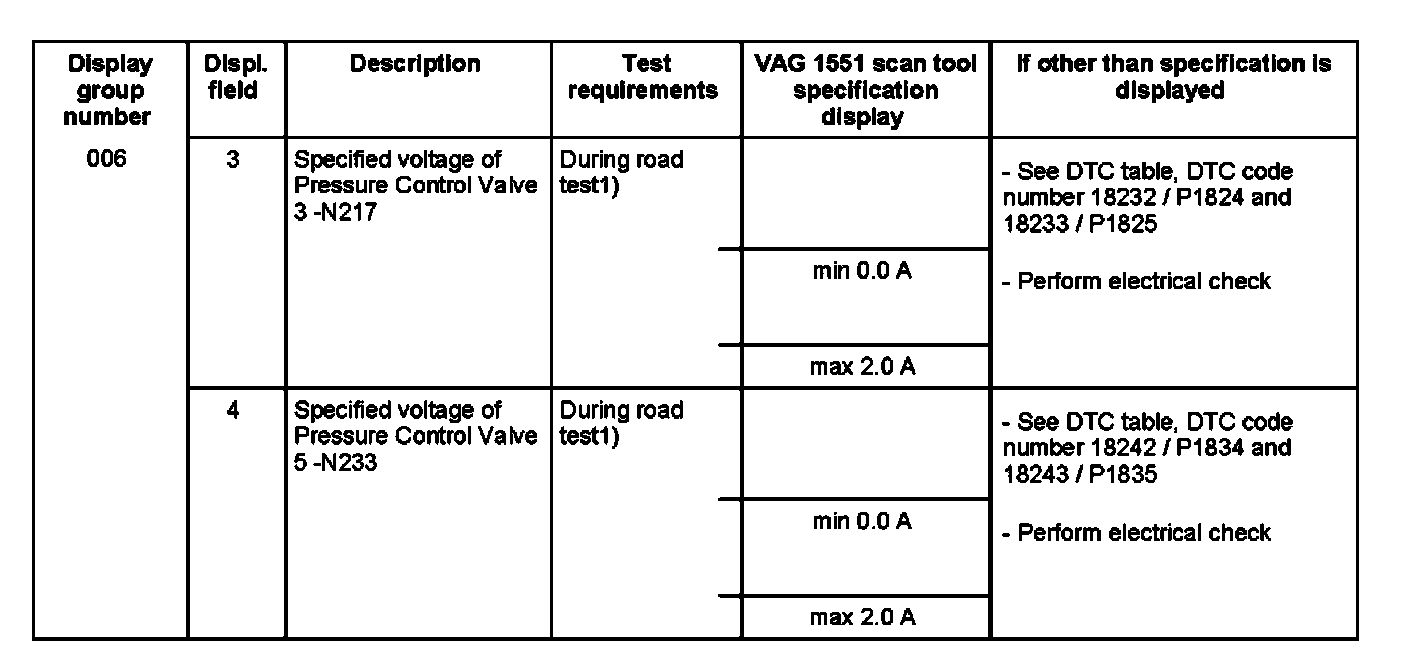

Display Group Number 006, Display Field (3 - 4):
Note to Specified voltage of solenoid valves:
^
Faulty solenoid valves, pressure control valves, or clutches can prevent transmission range to be engaged.
