Display Group 008



Read Measuring Value Block display group table

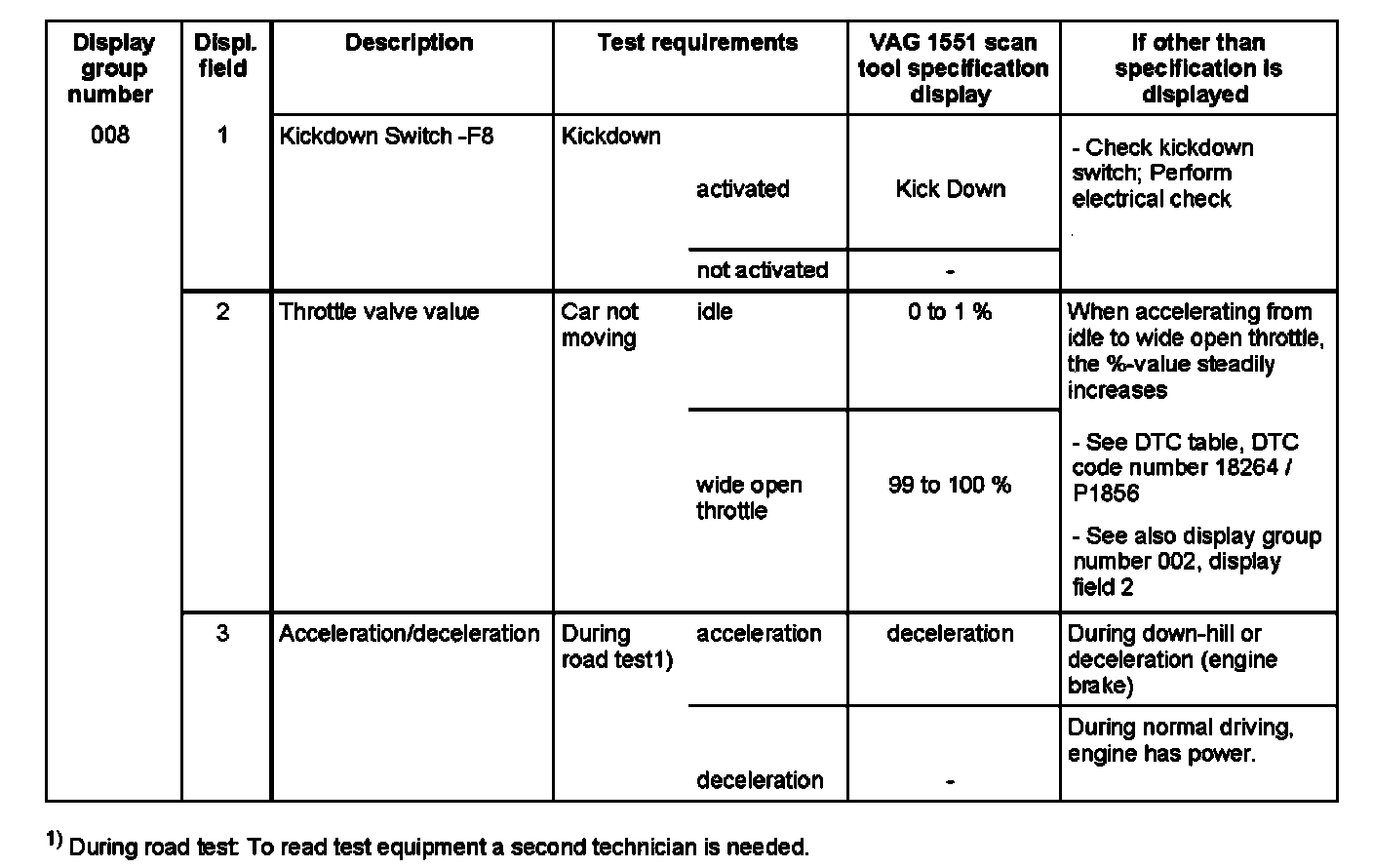

Display Group Number 008, Display Fields (1-3):





Note to Display Held 1 and 2:
When kickdown is activated, display field 2 must also indicate 100%.
