Display Group 009

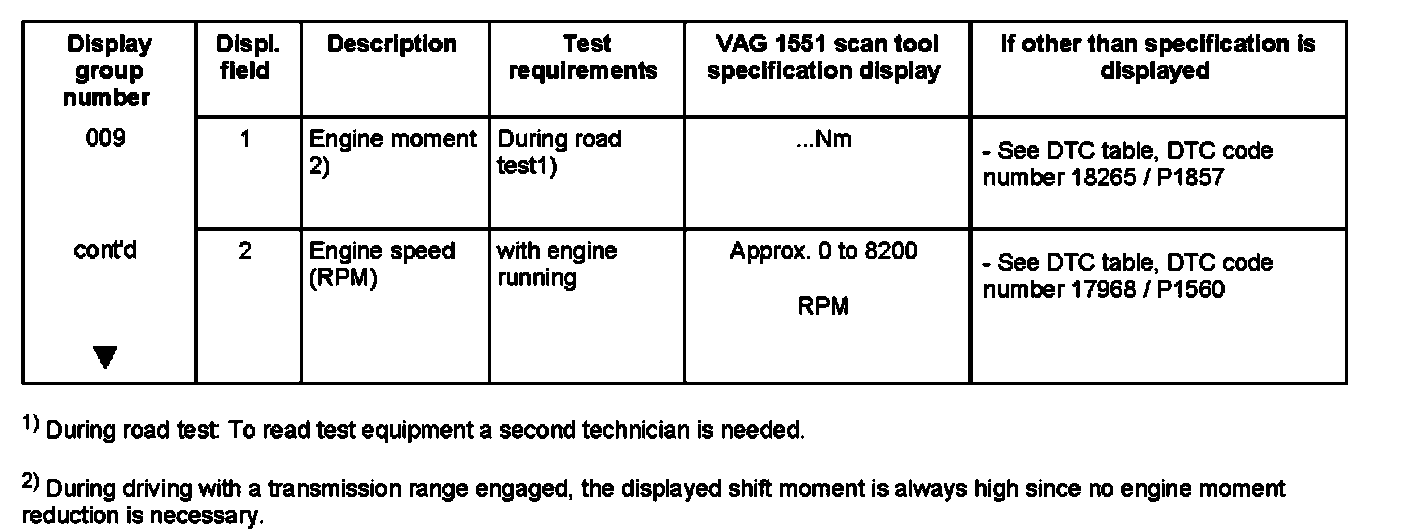

Read Measuring Value Block display group tableDisplay Group Number 009, Display Fields (1 - 2):
Note to display field 1:
The signal for the engine moment is transmitted by the Engine Control Module (ECM) via the CAN-Bus wiring.

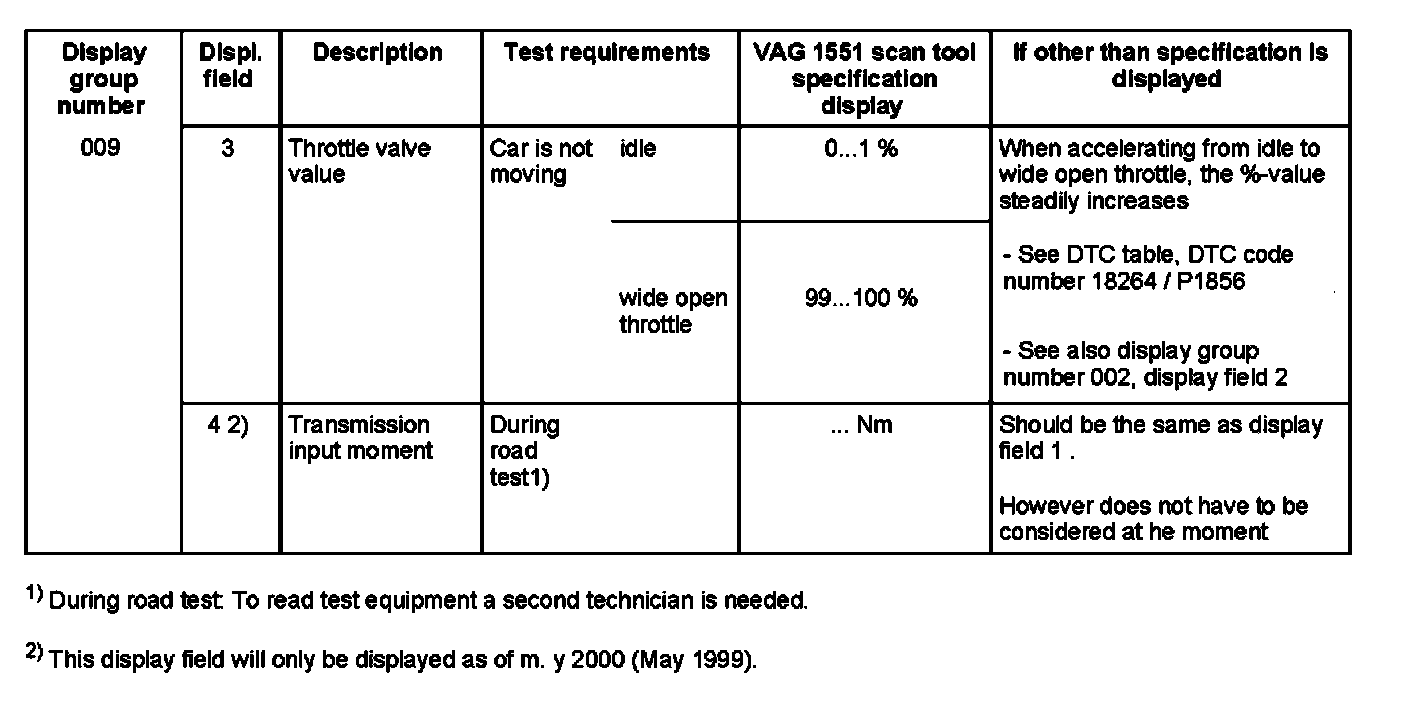

Display Group Number 009, Display Fields (3 - 4):
ECM), the index must show the same code as for the old ECM. If not, the wrong ECM was installed or it was incorrectly coded.
