Display Group 001

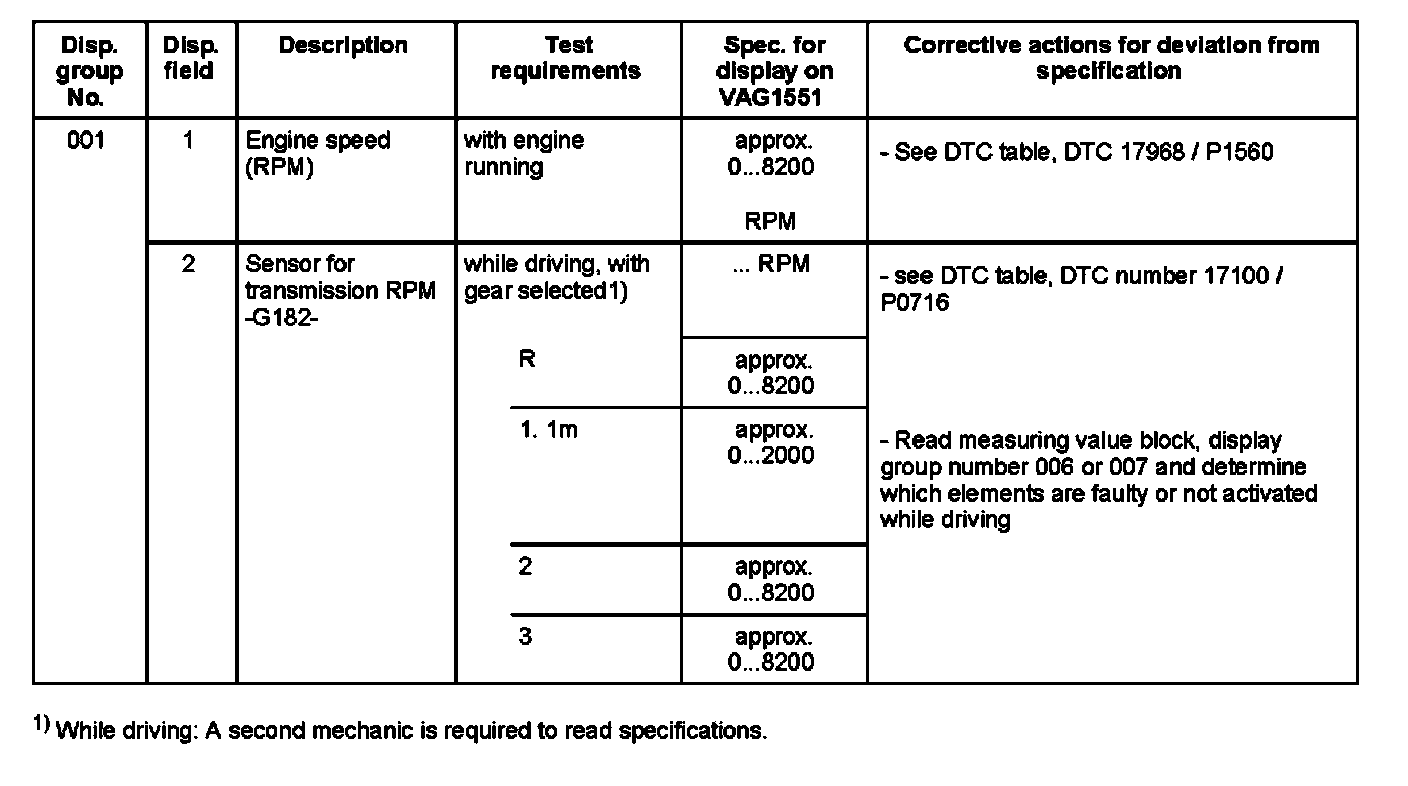

Test table for transmissions with hydraulic control E18/2Display Group 001, Display Fields (1-2):

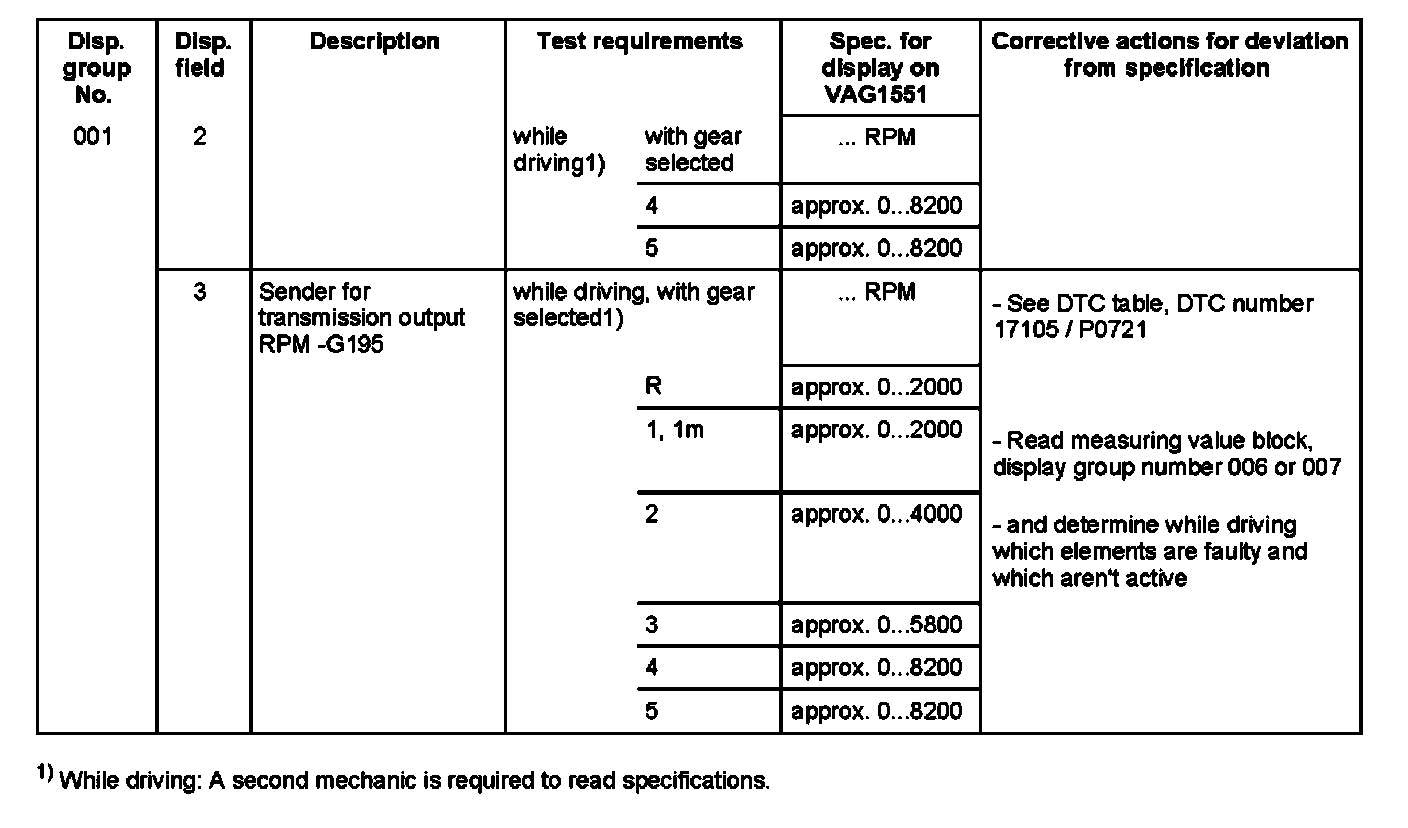

Display Group 001 , Display Fields (2-3):

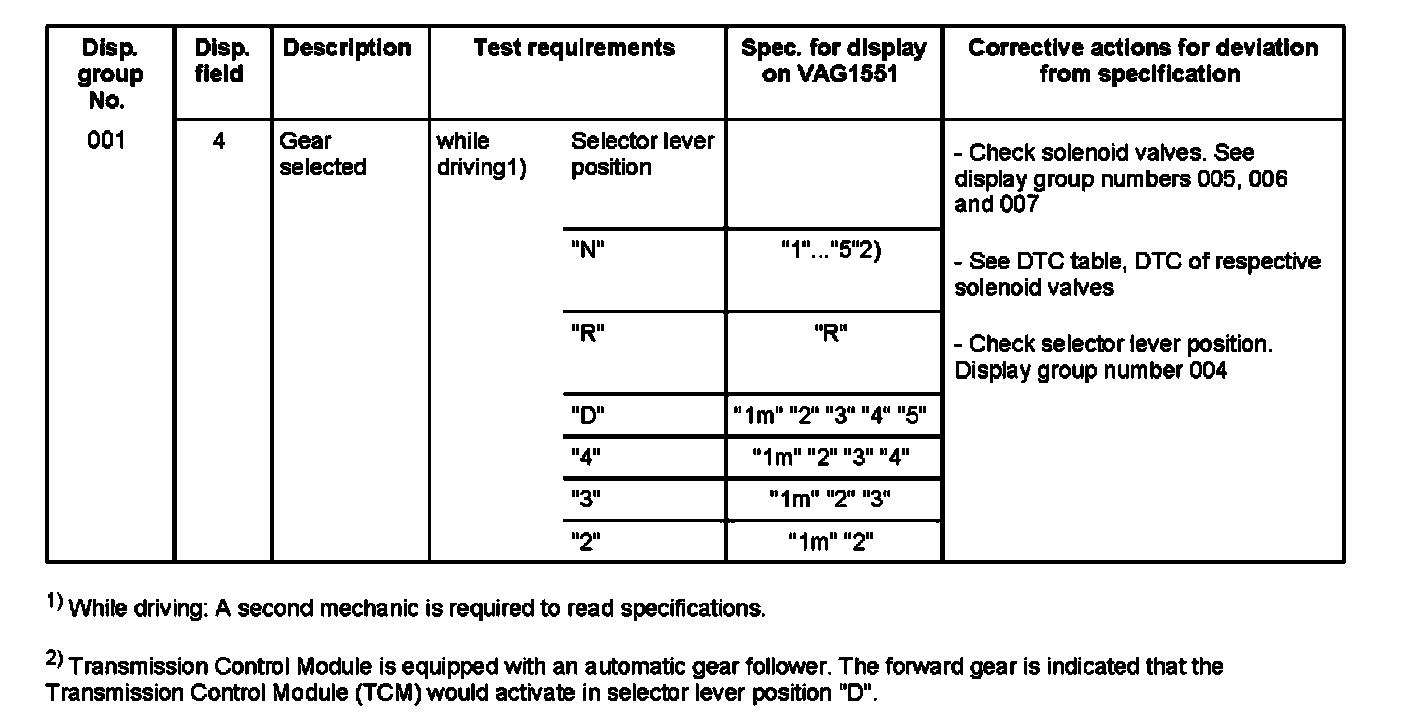

Display Group 001, Display Field (4):
Note: For display group number 001, display field 1 to 3;
^
Test conditions: Shifting process must be finished. Vehicle must not be in deceleration mode (no decline driving or engine brake).
