Display Group 013


Test table for transmissions with hydraulic control E18/2

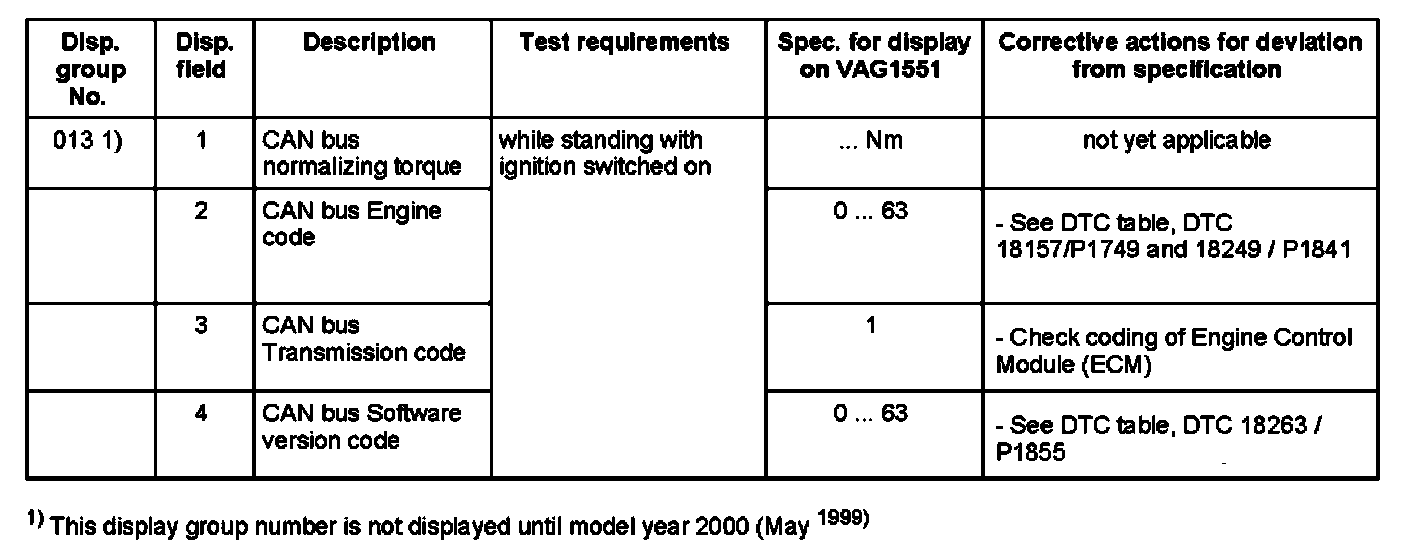

Display Group 013, Display Fields (1-4):





Note: For display group number 013,
^ Display field 2 and 4: When replacing the Engine Control Module (ECM), the same indication that appeared for the old control module should appear after installation. If this is not the case, the wrong Engine Control Module (ECM) is installed, or it is incorrectly coded.
