Display Group 004

Measured Value Block table

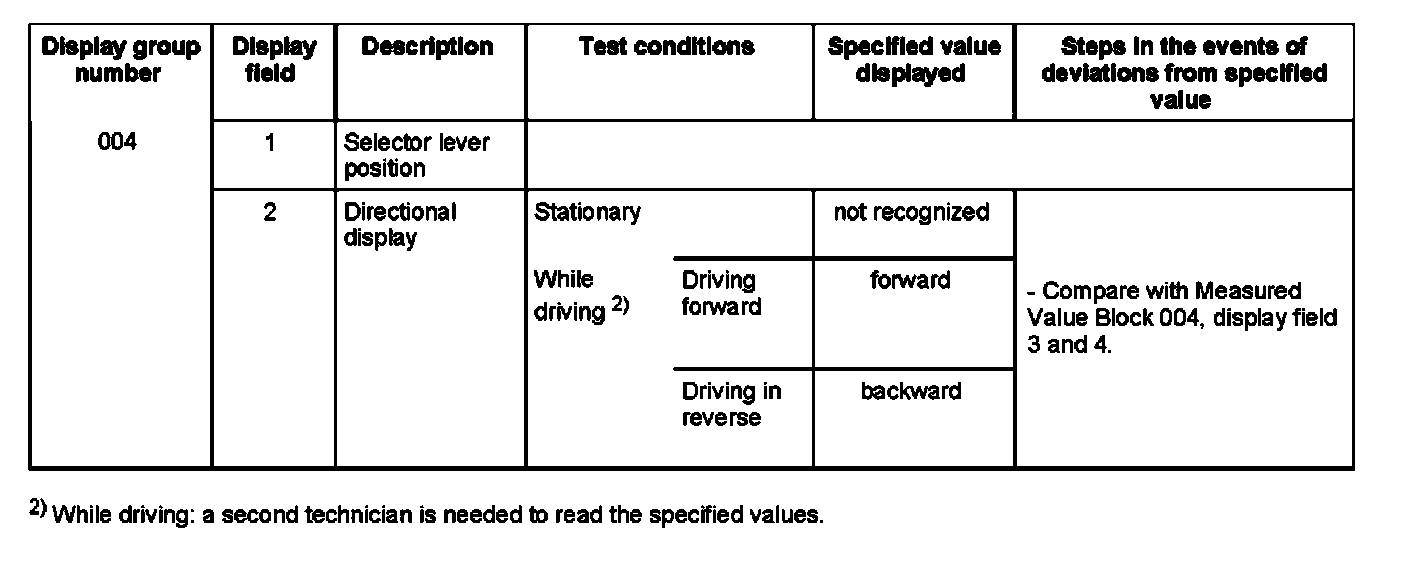

Display Group Number 004, Display Fields (1 - 2):

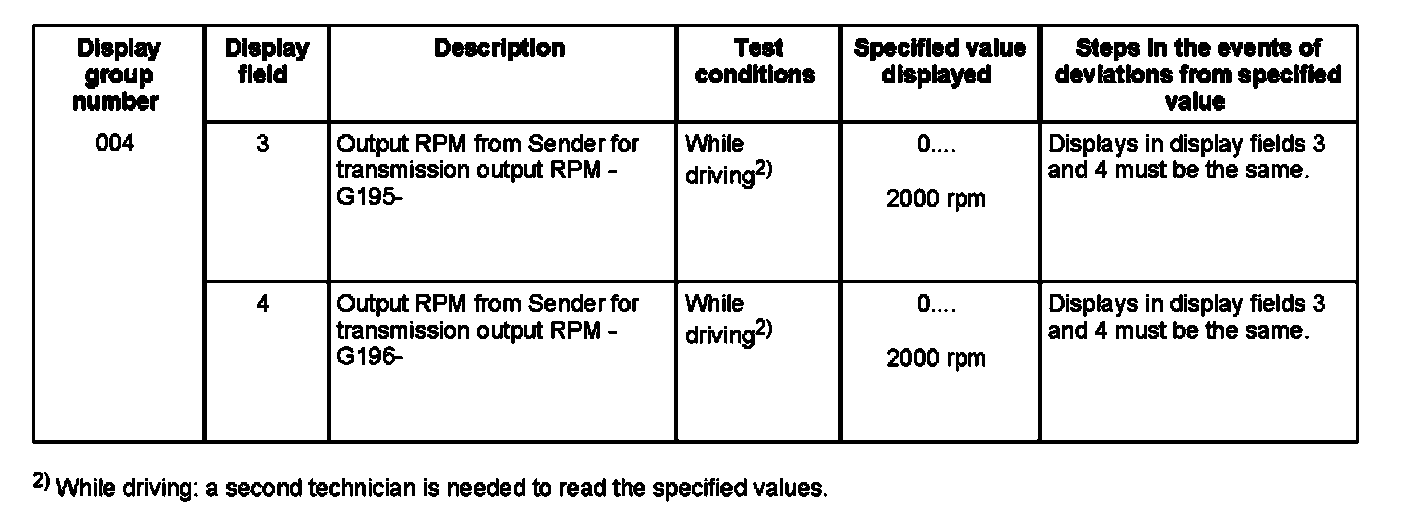

Display Group Number 004, Display Fields (3 - 4):

Notes on display group number 004:
^ If "0 RPM" is shown in display field 3 or 4, the corresponding sender is faulty and the Transmission Control Module (TCM) must be replaced.
^ If "0 RPM" is shown in display field 3 and 4, there is a mechanical defect in the transmission, and the transmission must be replaced.
