Display Group 007

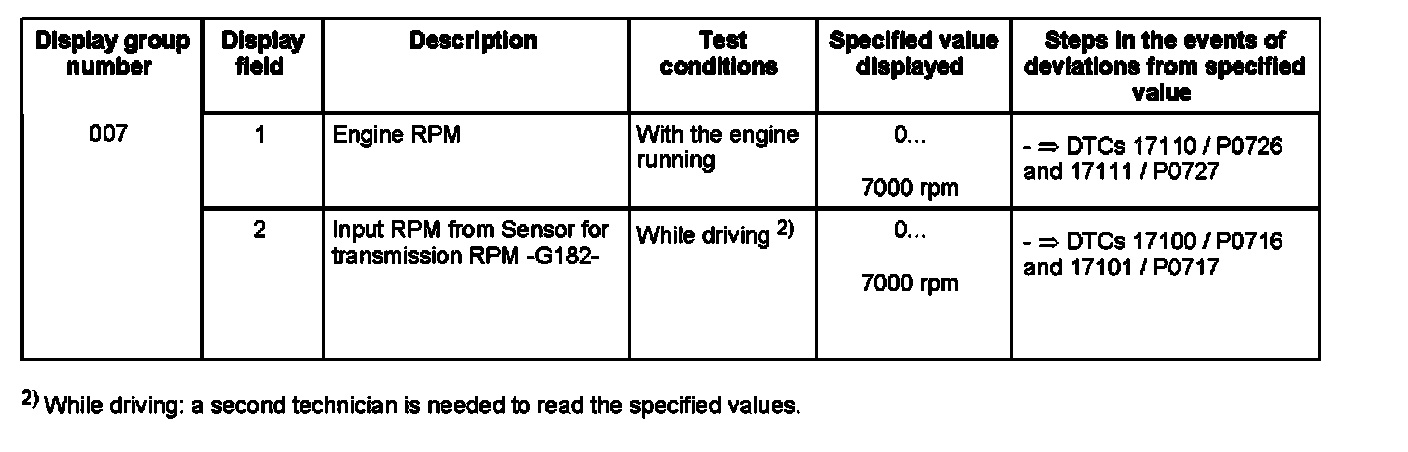

Measured Value Block tableDisplay Group Number 007, Display Fields (1 - 2):

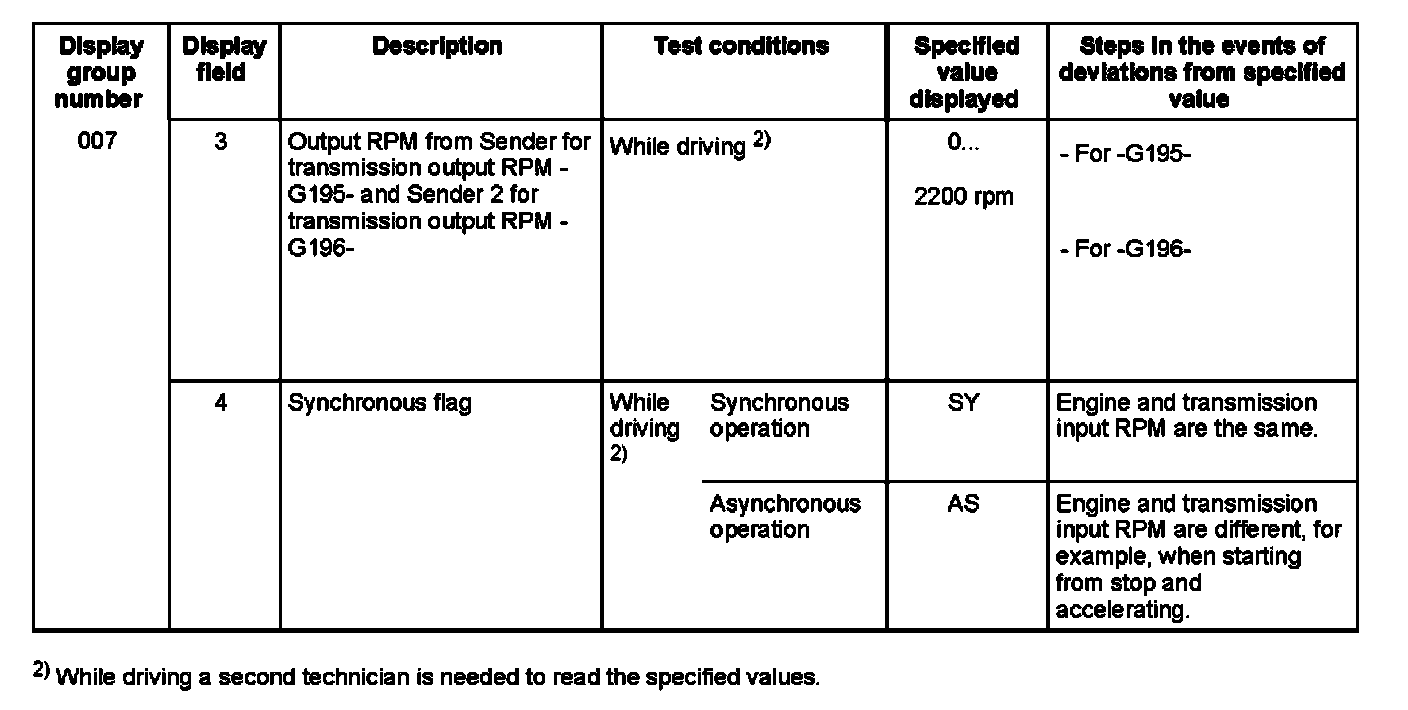

Display Group Number 007, Display Fields (3 - 4):
Note on display group number 007, display field 4:
^
If "AS" is always displayed, the clutch is slipping. The ATF must be changed. If "AS" is always displayed the transmission must be replaced.
