Selectable Diagnostic Modes Under Address Word 33-OBD



Selectable Diagnostic Modes Under Address Word 33 - OBD

- After connecting the diagnostic tester and selecting diagnostic function "33 - OBD", several diagnostic modes can be selected.
- The following diagnostic modes monitor all components and systems which influence the emission quality.

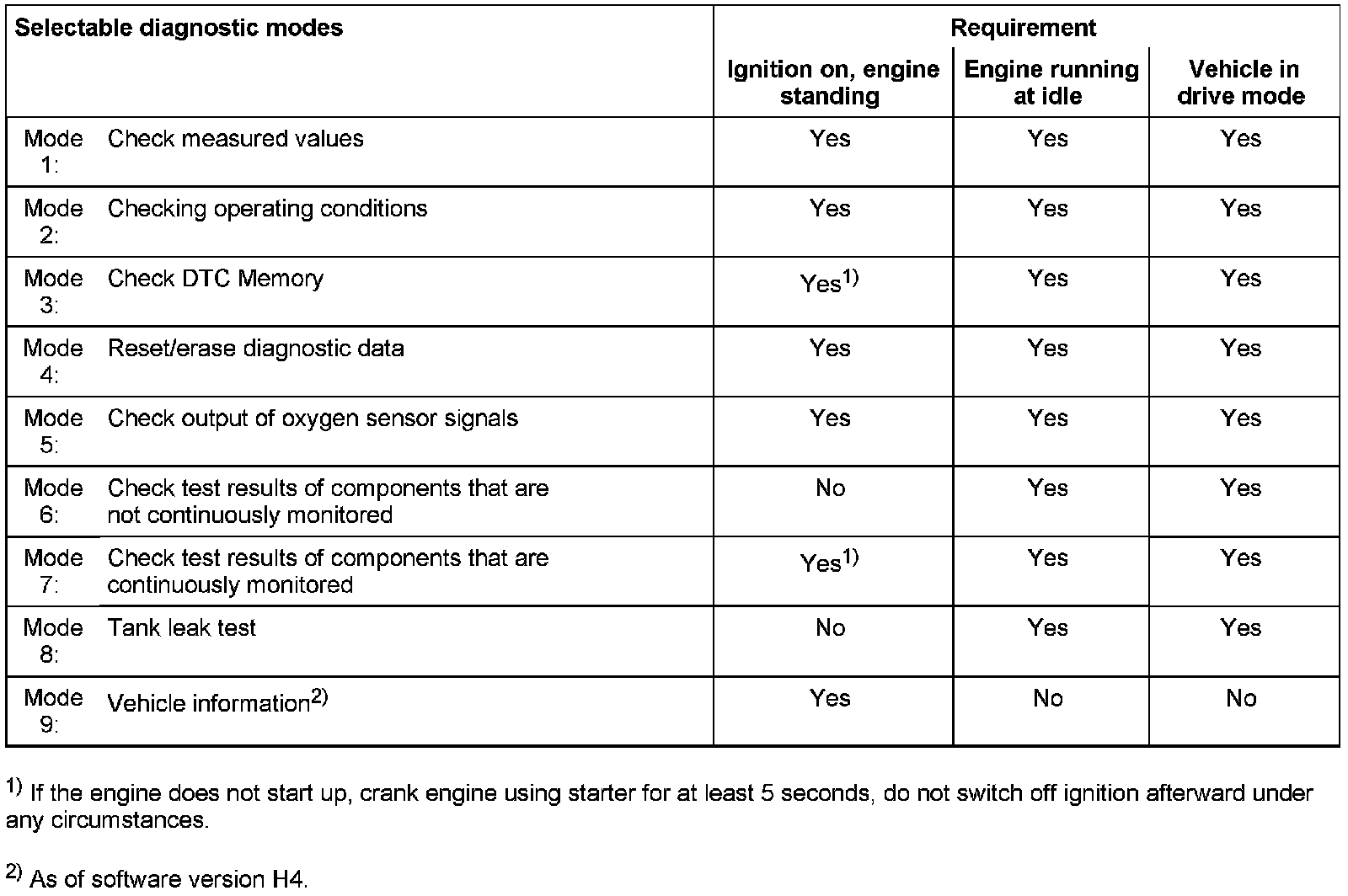

Selectable Diagnostic Modes Under Address Word 33 - OBD:
