5 Speed Automatic 01V



Multi-Function Transmission Range (TR) Switch -F125- A/T 01V

Removing
- Remove left transmission support.
- Remove Multi-Function TR Switch -F125 at transmission and pull off at selector shaft.

Installing

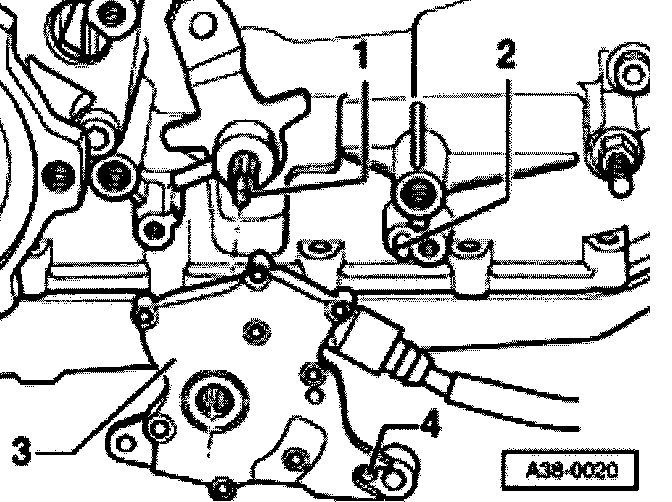

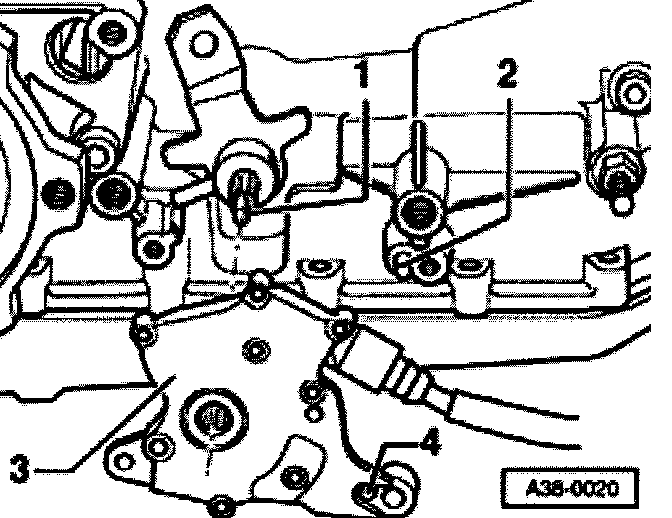

- Install Multi-Function TR Switch -F125 onto selector shaft. Flat on splines in switch -3- must be positioned on flat of selector shaft -1-.

Note: Center Multi-Function TO Switch -F125- on the selector shaft. Do not twist and do not use any force to install the switch. Damage to the contacts may result if the switch is mishandled.





- Turn switch until installation hole-4 on switch housing can be inserted onto dowel pin -2- of transmission housing.
- Install left transmission support.

Tightening torques
Multi-Function TR Switch -F125- to transmission 8 Nm (70 inch lbs.)
