Radiator Cooling Fan Control Module: Description and Operation

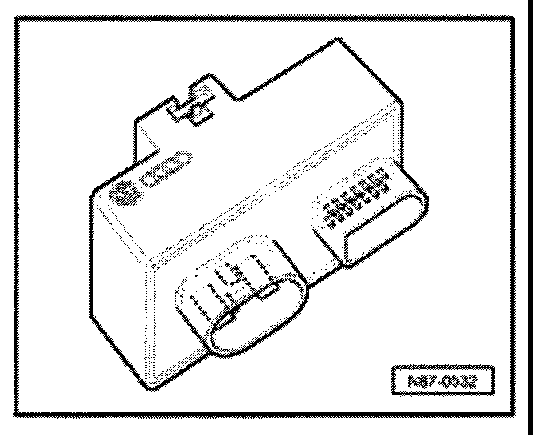

Coolant Fan (FC) Control Module J293

The coolant/condenser fan for this vehicle is controlled by the Coolant Fan (FC) Control Module J293 and does not use relays.





This control module switches the A/C clutch and thus the compressor on and off. It switches the coolant fans and calculates the pressure in the refrigerant circuit on vehicles with High Pressure Sensor G65 and Heating, air conditioning or Air conditioning.

For the Coolant Fan (FC) Control Module J293 location, please see Relays and Modules - Cooling System/Radiator Cooling Fan Control Module/Locations, Locations
