5 SPD. A/T 01L AWD


Electrical/electronic components and locations





1. Automatic transmission Control Module (TCM) -J217

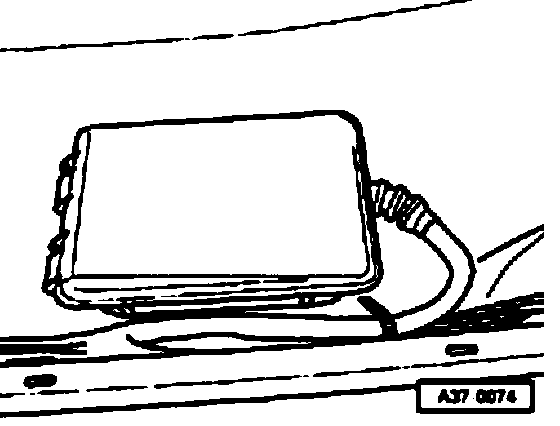

Fig. 1 Location of Automatic Transmission Control Module (TCM) -J217:





The TCM is located in front of the right seat under the carpet in the foot well.
