5 SPD. A/T 01V


Electrical/electronic components and locations





1. Automatic transmission control module -J217-

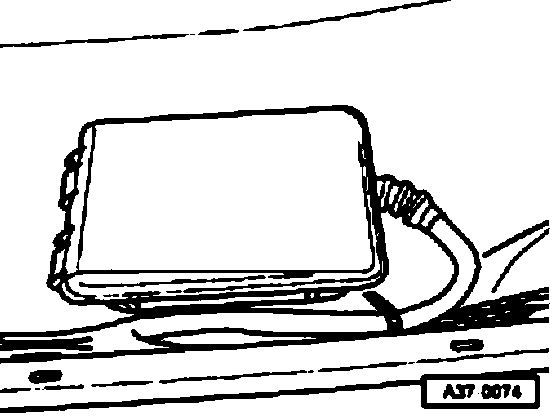

Fig. 20 Location of automatic transmission control module -J217-:





The control module is located in front of the right-hand seat under the carpet in foot well.
