CVT 01J



Transmission Control Module (TCM) -J217
01J CVT






Installation location:
Transmission Control Module (TCM) -J217- is on the back end of transmission, secured directly to hydraulic control module.

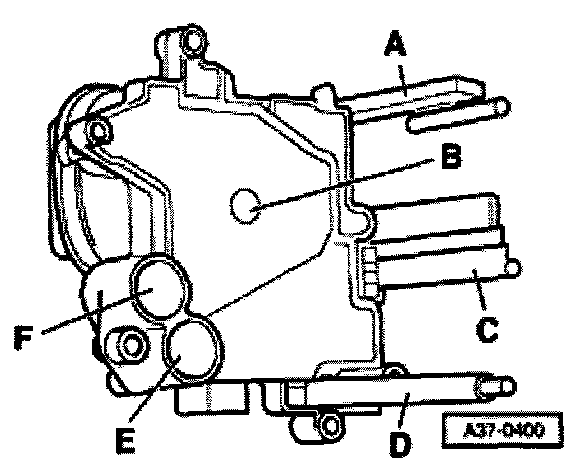

The following components are integrated in the control module:

A - Sender for transmission output RPM -G195- and Sender -2- for transmission output RPM- -G196

B - Transmission Fluid Temperature Sensor -G93

C - Multi-Function Transmission Range (TR) Switch -F125

D - Sensor for transmission RPM -G182

E - Sender -1- for hydraulic pressure, automatic transmission- -G1 93

F - Sender -2- for hydraulic pressure, automatic transmission- -G 194
