Switch For Convertible Top Operation/Navigation, Removing and Installing

Switch For Convertible Top Operation/navigation, Removing And Installing

Removing
- Pull up parking brake lever.

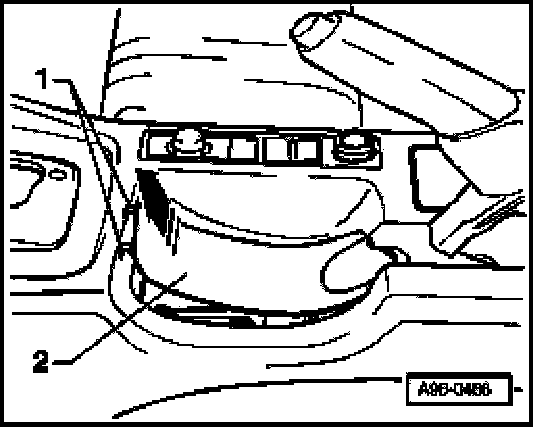

- Unclip cover -2- below the parking brake lever at mounting springs -1-

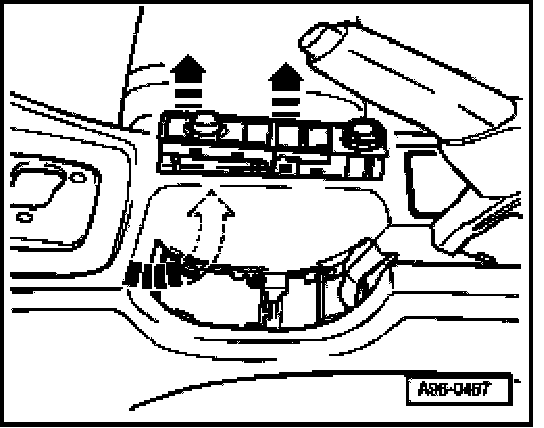

- Grasp opening below parking brake lever and from bottom, press out Convertible Top Operation Switch/navigation from center console -arrows-.







- Disconnect electrical harness connectors -3 to 6-.
- Carefully release catches -arrows- using a small screwdriver.
- Remove Navigation switch -1- from mounting frame -2-.

Installing
Installation is the reverse of removal.
