Radio Sound System Overview

Radio / Navigation Systems

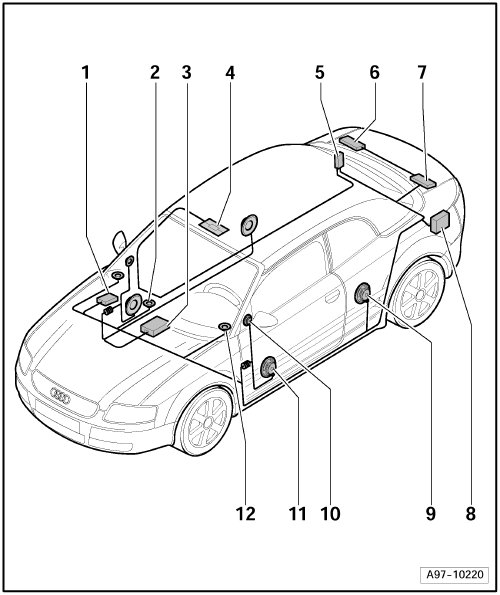

Radio Sound System Overview







1 - CD Changer Unit - R41 => [ CD Changer - R41 ] Radio Sound System Overview
• Navigation System Overview location => [ Navigation System Overview ] Navigation System Overview

2 - Inside loudspeaker - R70 => [ Inside loudspeaker - R70 ] Radio Sound System Overview
• Navigation System Overview location => [ Navigation System Overview ] Navigation System Overview
• Telephone system overview location => [ Telephone system overview ] Telephone System Overview

3 - Radio - R => [ Radio - R ] Radio Sound System Overview

4 - Inside Microphone - R74 => [ Inside Microphone - R74 ] Radio Sound System Overview
• Navigation System Overview location => [ Navigation System Overview ] Navigation System Overview

5 - Amplifier - R12 => [ Amplifier - R12 ] Radio Sound System Overview
• Navigation System Overview location => [ Navigation System Overview ] Navigation System Overview

6 - Right Antenna Module - R109 => [ Right Antenna Module - R109 ] Radio Sound System Overview
• Navigation System Overview location => [ Navigation System Overview ] Navigation System Overview

7 - Left Antenna Module - R108 => [ Left Antenna Module - R108 ] Radio Sound System Overview
• Navigation System Overview locationNavigation System Overview

8 - Satellite Radio - R146 => [ Satellite Radio - R146 * ] Radio Sound System Overview
• * for USA equipment only
• Navigation System Overview location

9 - Rear Speaker - R4/R5 => [ Rear Speaker - R4 / R5 ] Radio Sound System Overview

10 - Front Treble Speaker - R20/R22 => [ Treble Speaker - R20 / R22 ] Radio Sound System Overview

11 - Front Bass Speaker - R21/R23 => [ Bass Speaker - R21 / R23 ] Radio Sound System Overview

12 - Front Midrange Speaker - R103/R104 => [ Midrange Speaker - R103 / R104 ] Radio Sound System Overview

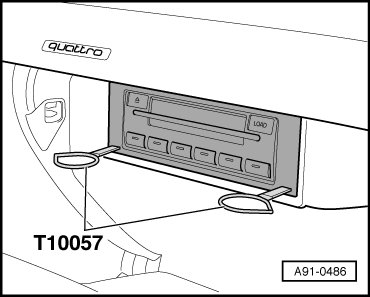

CD Changer - R41







• Location: in glove box

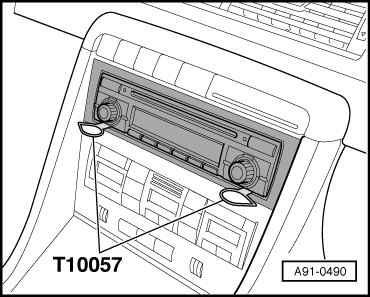

Radio - R







• Location: in centre console

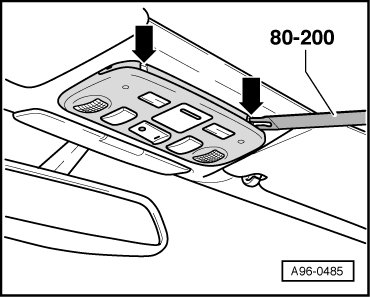

Inside Microphone - R74







• Location: in interior light operating unit

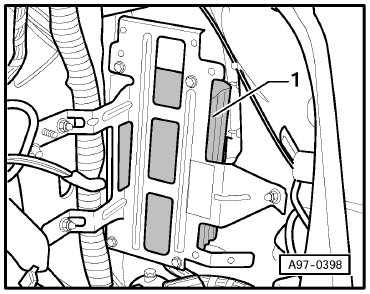

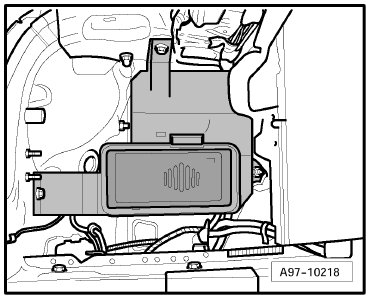

Amplifier - R12







• Location: in luggage compartment right, behind side trim

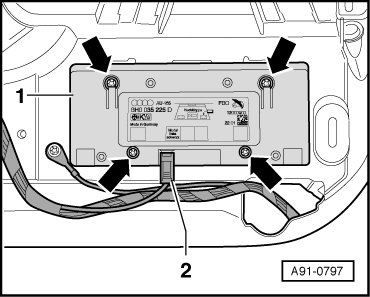

Right Antenna Module - R109







• Location: in the rear lid, right, behind trim



Left Antenna Module - R108







• Location: in the rear lid, left, behind trim



Satellite Radio - R146 *







• Location: in luggage compartment, rear left, behind side trim


Note:
• * - for USA equipment only



Rear Speaker - R4 / R5


Left Rear Speaker -R4- shown. Right Rear Speaker -R5- similar.





• Location: rear, behind side trim



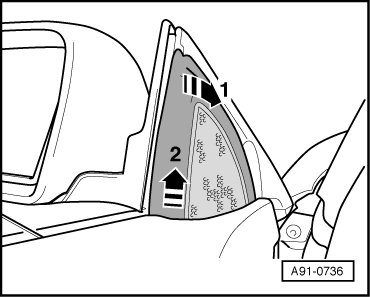

Treble Speaker - R20 / R22


Left Front Treble Speaker -R20- shown. Right Front Treble Speaker -R22- similar.





• Location: in door trim

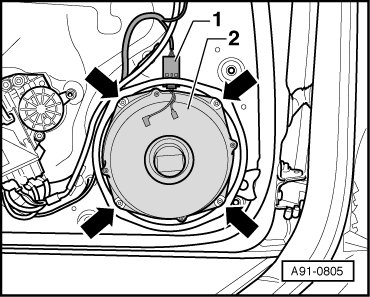

Bass Speaker - R21 / R23


Left Front Bass Speaker -R21- shown. Right Front Bass Speaker -R23- similar.





• Location: behind door trim

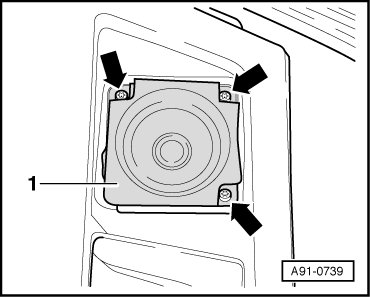

Midrange Speaker - R103 / R104


Left Front Midrange Speaker -R103- shown. Right Front Midrange Speaker -R104- similar.





• Location: in dash panel



Inside loudspeaker - R70







• Location: in dash panel
