"Symphony II" Radio, Removing and Installing

"Symphony II" Radio, Removing And Installing

Special Tools and Equipment







- T10057 radio removal tool

Removing

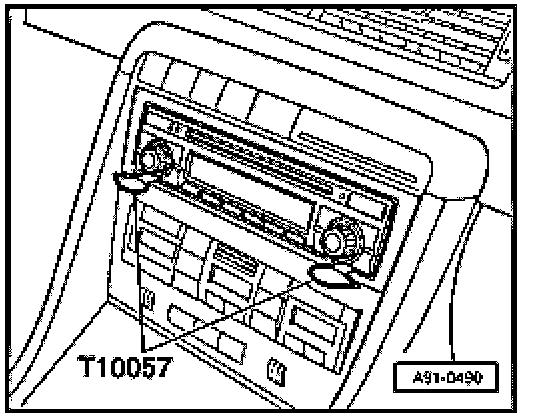

- Push the four clips of radio removal tool T10057 into the front.
- Pull the radio out of the instrument panel.
- Unplug the connectors and the antenna wire.
- Pull out the release tool from the radio - to do this, press in the locking tabs at the top and bottom on the radio.

Installing
- Plug in the connectors and the antenna wire.
- Carefully insert the radio into the instrument panel and let it engage in the installation slot.
- Perform coding if the radio was replaced.

Do this using vehicle diagnostic, testing and information system VAS 5051.
