Handle For Variable Convertible Top Compartment, Removing and Installing

Handle For Variable Convertible Top Compartment, Removing And Installing

- Removing
- Remove handle mount trim.

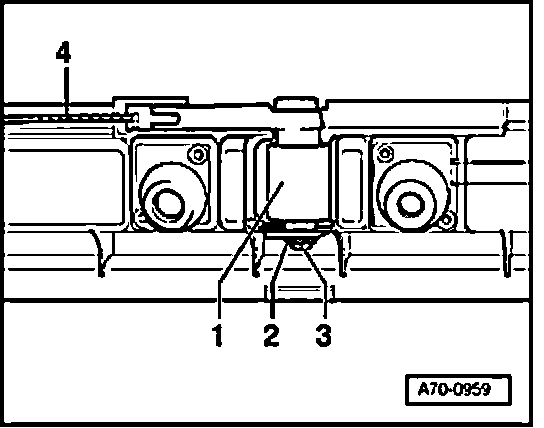

NOTE: Illustration shown from rear for greater clarity.







- Using a small flat screwdriver, pry out fuse - 2 - (always replace fuse - 2 - ).
- Press out pin - 3 -.
- Remove handle - 1 -.

1. Handle
2. Fuse
- Always replace
3. Pin
4. Bowden cable

- Installing
- Installation is in reverse order of removal.
