Easy-Entry Facility, Removing and Installing

Easy-entry Facility, Removing And Installing

- Removing

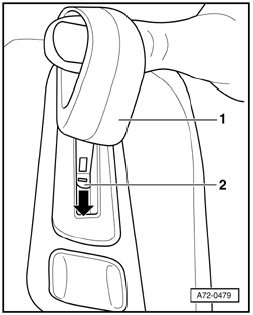

- Press handle - 1 - upward.
- Release tab - 2 - in direction of - arrow - using a screwdriver and, at the same time, pull off handle - 1 -.







- Unclip cover plate - 1 -.
- Disconnect connector - 3 -.
- Remove cover plate - 1 -.

- Installing

NOTE: In order to be able to press in the handle, the metal pin in the cover plate aperture must be pushed upward with a screwdriver.

- Install easy-entry facility in reverse order of removal. Make sure handle - 2 - engages.
