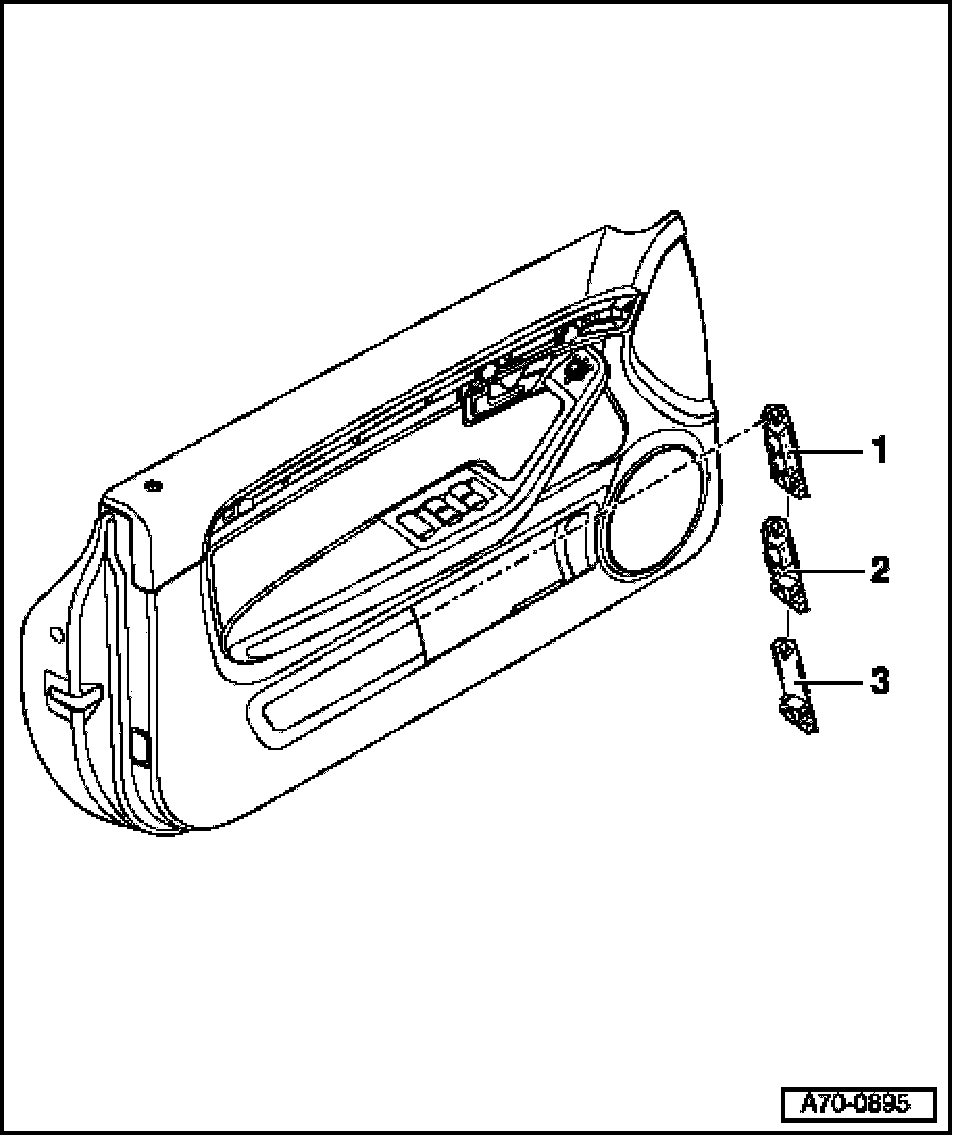

Switch Panel For Tailgate Release and/or Deactivation of Anti-Theft Alarm, Assembly Overview

Switch Panel For Tailgate Release And/or Deactivation Of Anti-theft Alarm, Assembly Overview







1. Switch panel for tailgate release and deactivation of anti-theft alarm
2. Switch panel for tailgate release or deactivation of anti-theft alarm
3. Dummy cover
- Removing
- Using a screwdriver, carefully pry out switch panel.
- Disconnect connector(s) from switch panel
- Installing
- Install switch module in reverse order of removal.
