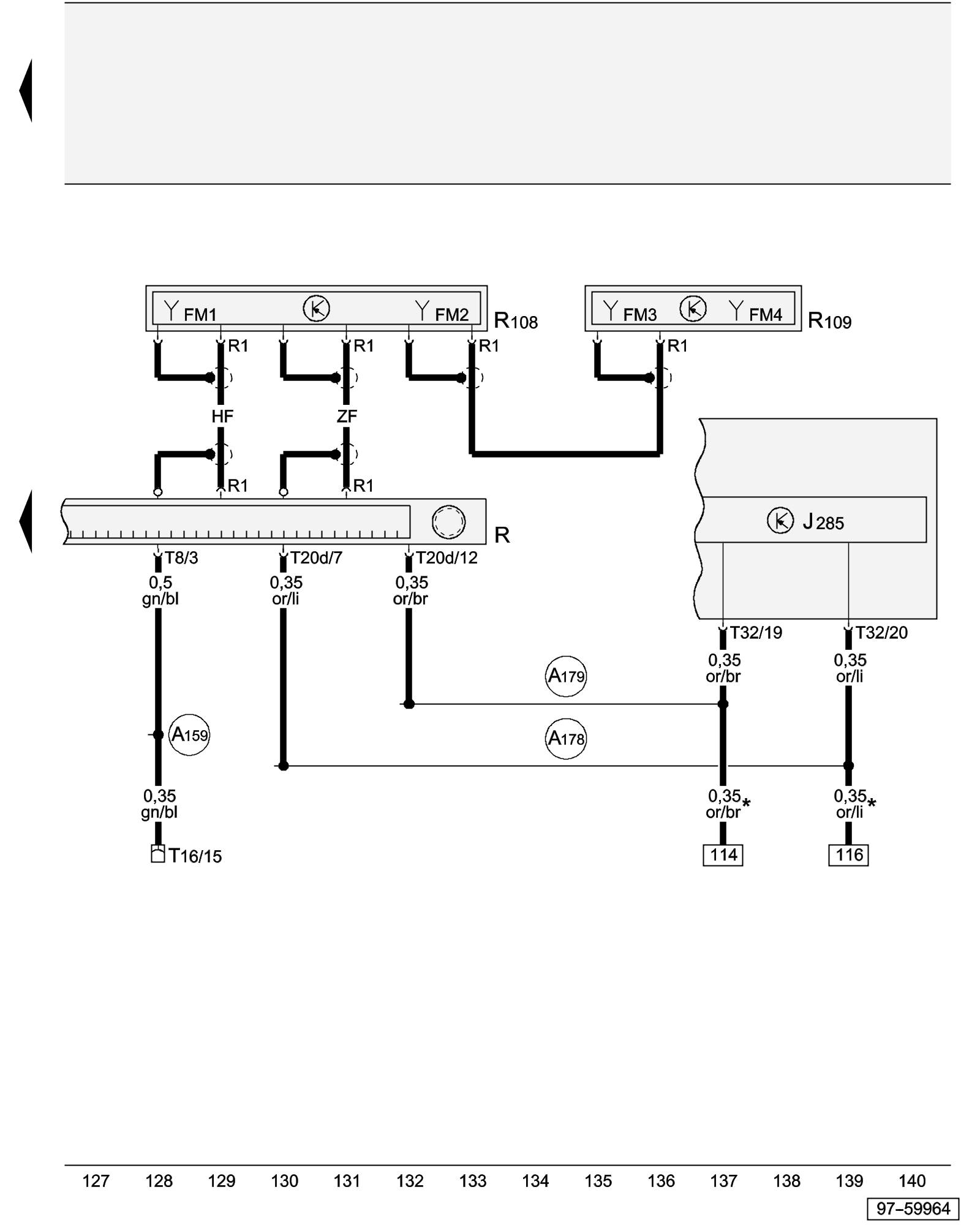

Diagram 76/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left Antenna Module, Right Antenna Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Control Module with indicator unit in instrument panel insert Common Modules Overview

R - Radio

R1 - Antenna Connection

R108 - Left Antenna Module Radio Sound System Overview

R109 - Right Antenna Module Radio Sound System Overview

T8 - 8-Pin Connector, black, radio connector III

T16 - 16-Pin Connector, black, diagnostic connection

T20d - 20-Pin Connector, black, radio connector I

T32 - 32-Pin Connector, blue, on instrument panel insert

(A159) - Connection (L) (in instrument panel wiring harness)

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Lo-bus Connection (in instrument panel wiring harness)

* - with Satellite Tuner Radio only

Previous Diagram 76/10 (Tracks 113-126)
