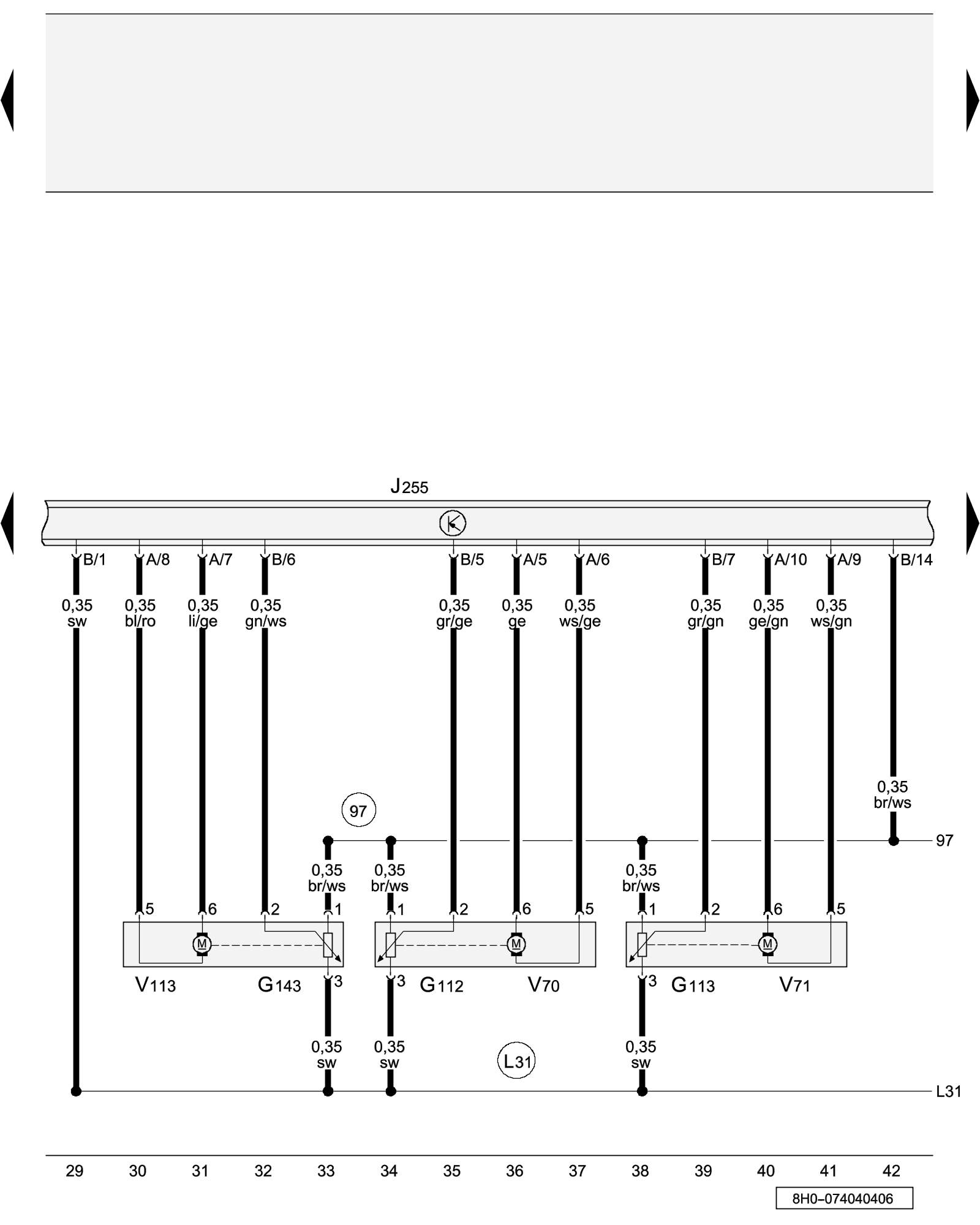

Diagram 74/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Recirculation door motor, central air door motor, airflow door motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G112 - Central door motor position sensor Components Inside Pass Compartment

G113 - Back pressure door motor position sensor Components Inside Pass Compartment

G143 - Recirculation door motor position sensor Components Inside Pass Compartment

J255 - Climatronic control module Components Inside Pass Compartment

V70 - Central air door motor Components Inside Pass Compartment

V71 - Airflow door motor Components Inside Pass Compartment

V113 - Recirculation door motor Components Inside Pass Compartment

(97) - Ground connection 1 (in A/C wiring harness)

(L31) - Connection (5 Volt) (in A/C system wiring harness)
