Diagram 36/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver's Entry Assistance Button, Switch for seatback latch, driver's seat





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

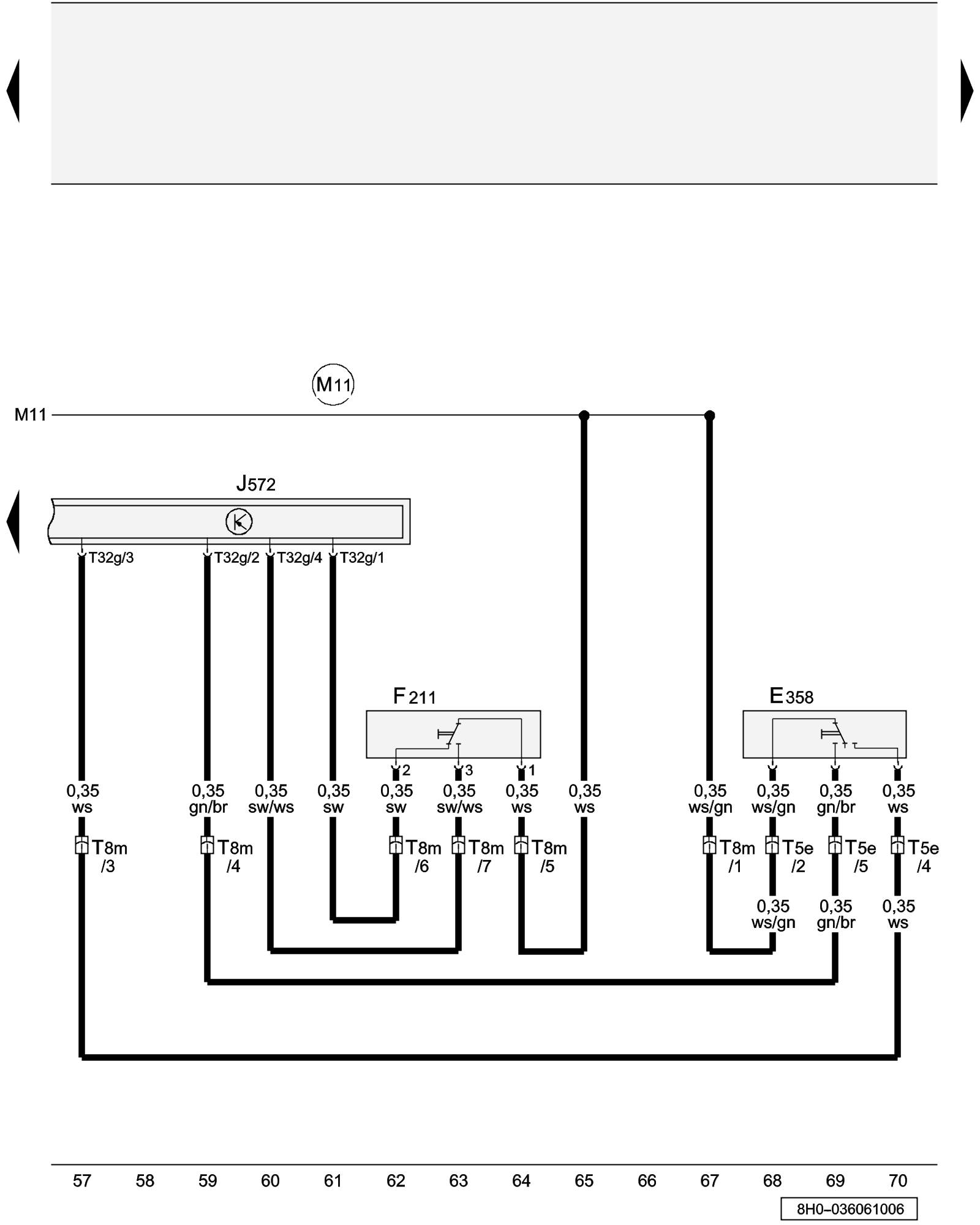

E358 - Driver's Entry Assistance Button

F211 - Switch for seatback latch, driver's seat

J572 - Left Entry Assistance Control Module

T5e - 5-Pin Connector, black, in the driver seat

T8m - 8-Pin Connector, black, in the driver seat

T32g - 32-Pin Connector, white

(M11) - Connection 2 (in driver's seat adjustment wiring harness)

Previous Diagram 36/5 (Tracks 43-56)

Next Diagram 36/7 (Tracks 71-84)
