Front Door Panel

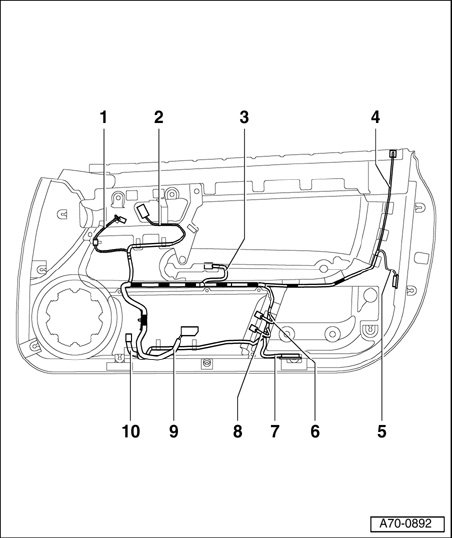

Exploded View Of Door Trim Cable Routing







1 - Cable to mirror adjustment switch
2 - Cable to central locking system switch
3 - Cable to switch panel for window regulator
4 - Cable to display of anti-theft alarm
5 - Cable to door warning light
6 - Cable to anti - theft alarm deactivation switch
7 - Cable to courtesy light
8 - Cable to tailgate release switch
9 - Cable to window regulator control unit connector
10 - Cable to memory seat switch panel
