Display Group 002

Display Group "002"

Last four compressor shutoff criteria







Interpretation of compressor shutoff condition for display zones "1 to 4" of display group "002"

NOTE: The numbers not listed (e.g "13") are not assigned a compressor shutoff condition at present

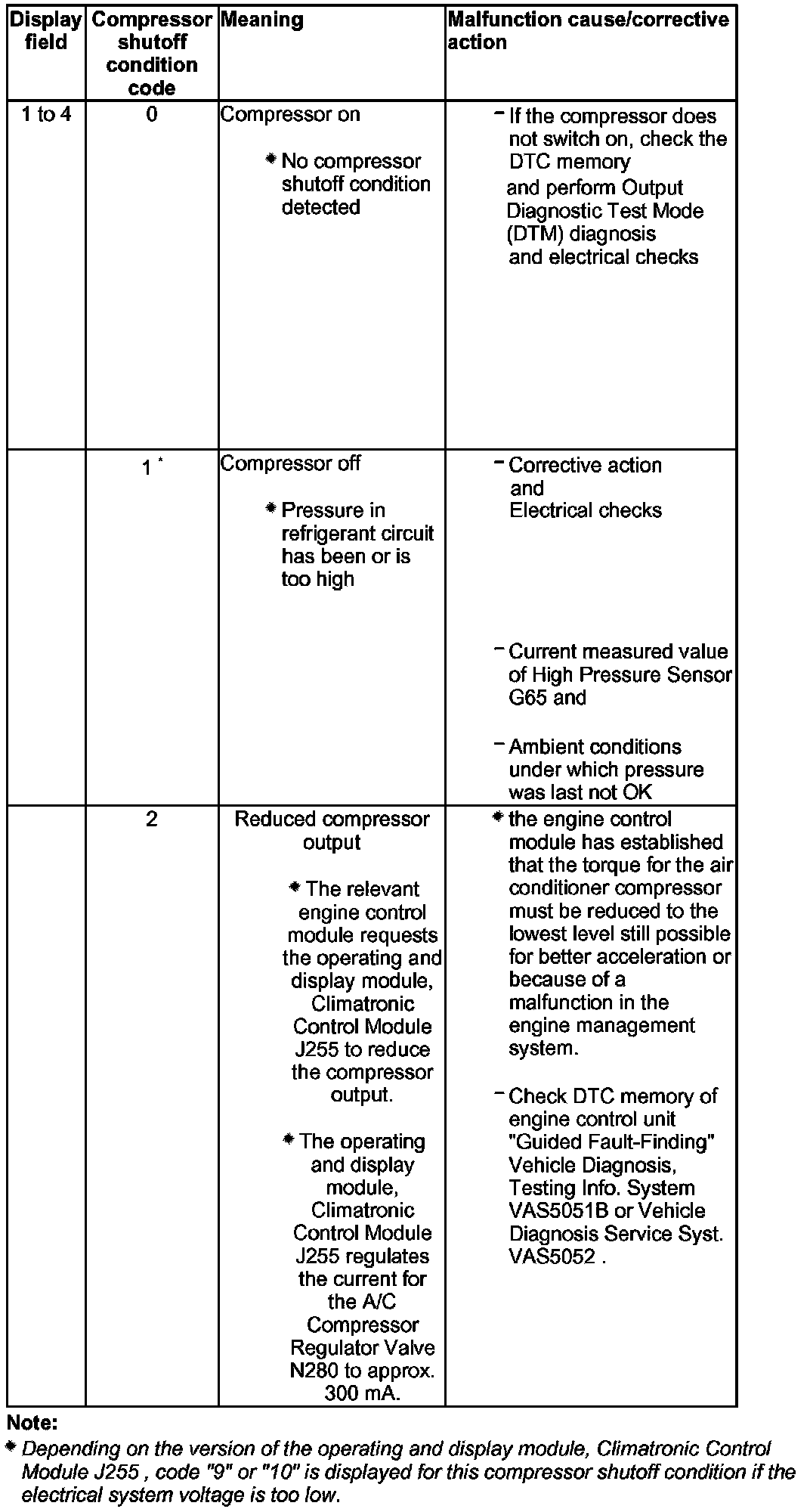

Display Field 1 - 4:

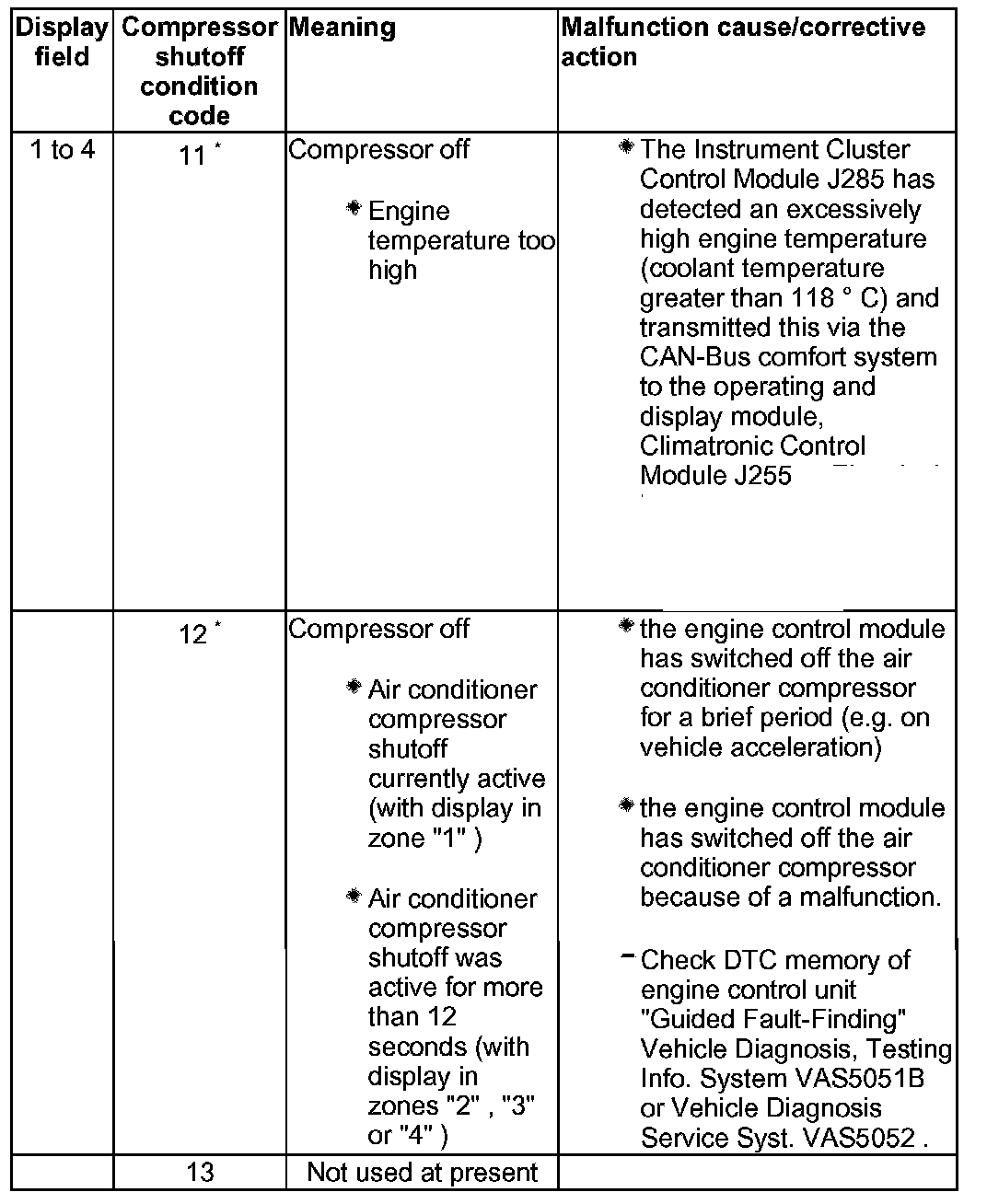

Display Field 1 - 4 (Continued):
