High-Mount Brake Light -M25-, Removing and Installing

High-mount Brake Light -M25-, Removing And Installing

Removing
- Remove tailgate trim.

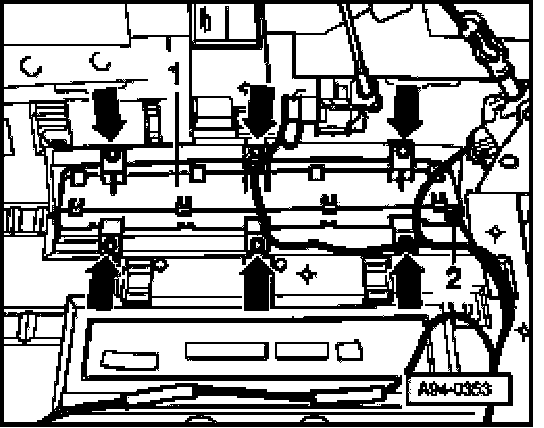

- Remove bolts -arrows-.
- Remove high-mount brake light -1- from body cut-out.
- Unplug connector -2-.

Installing
Installation is reverse of removal, paying attention to the following:

NOTE: In case of defective LEDs, the complete high-mount brake light must be replaced.

Tightening torque

Component Nm
Brake light to rear lid 3
