Engine Controls - Long or Extended Crank At Cold Start: Overview

01 Long Or Extended Crank At Start

24 09 02

2018705/3

March 2, 2009

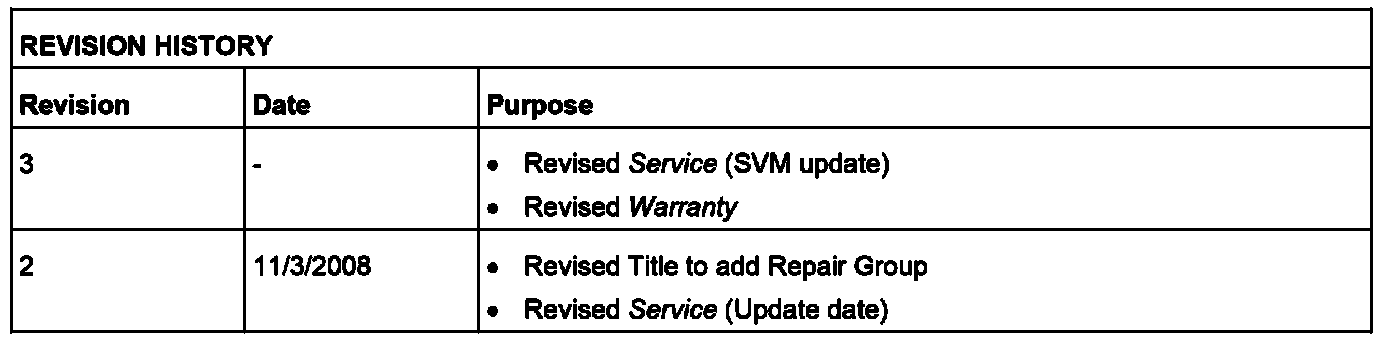

Supersedes Technical Service Bulletin Group 13 number 08-05 dated November 3, 2008 for reasons listed below.

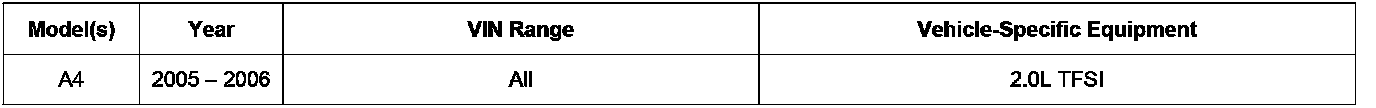

Vehicle Information





Condition

For vehicles exhibiting all of the following conditions:

- Extended cranking during initial (cold) engine startup.

- The engine always starts, but with a longer than normal cranking time (3+ seconds).

- No DTCs stored.

- Condition cannot be duplicated with engine warmed up.

- Vehicle does not exhibit other drivability concerns.

Technical Background

Production Solution

Service
New software in Engine Control Module J623.

SVM Update Instructions

1. Follow all instructions in the attached TSB 2011732 00 Software Version Management (SVM), operating instructions.





2. Update the Engine Control Module (J623) using the SVM action code as listed in the table if necessary.

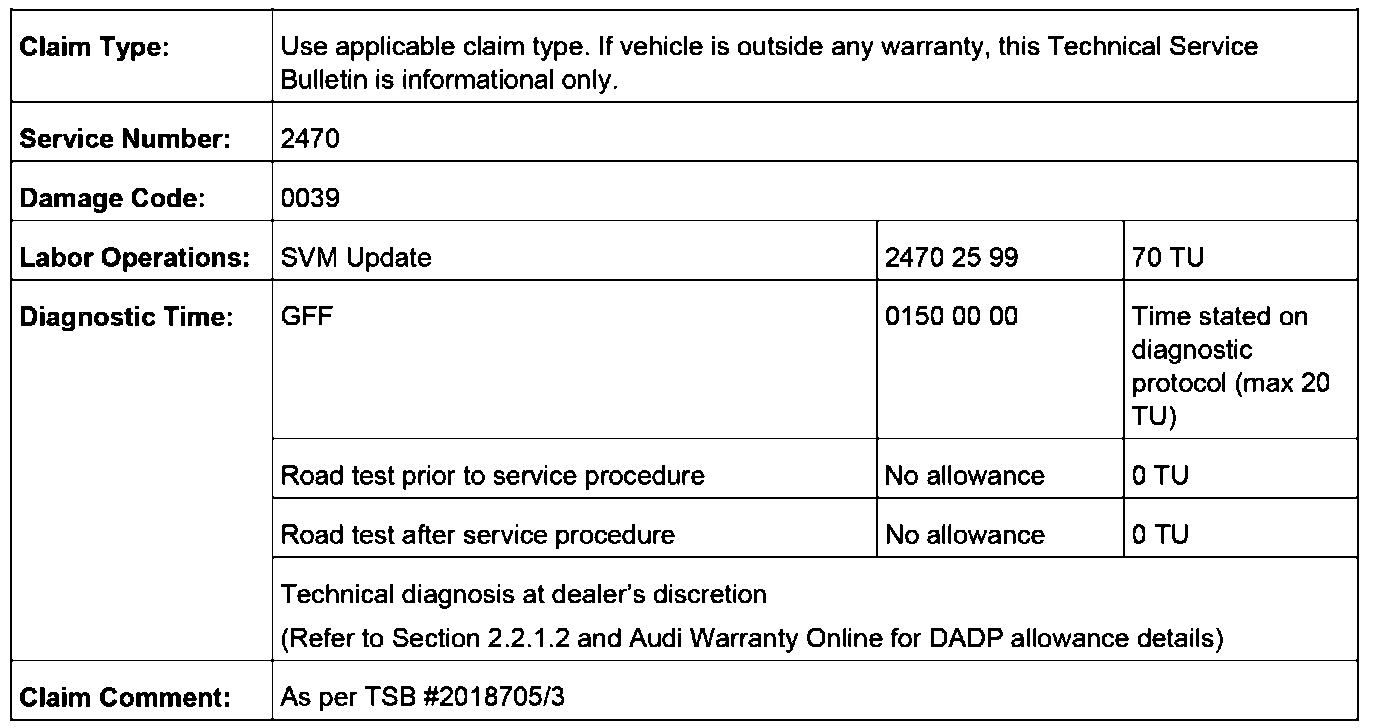

Warranty

All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
