Fuel Level Sensor G, Checking

Fuel Level Sensor G, Checking

Special tools, testers and auxiliary items required

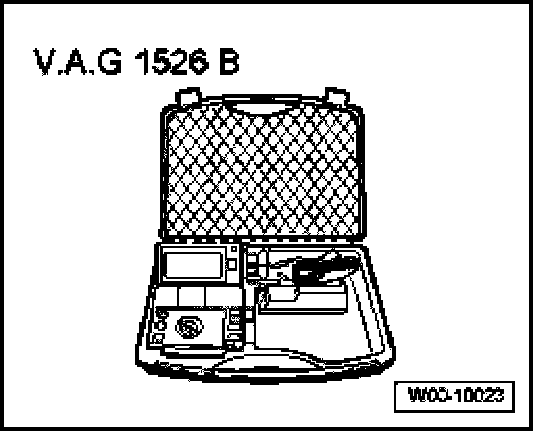

- Portable multimeter V.A.G 1526 B

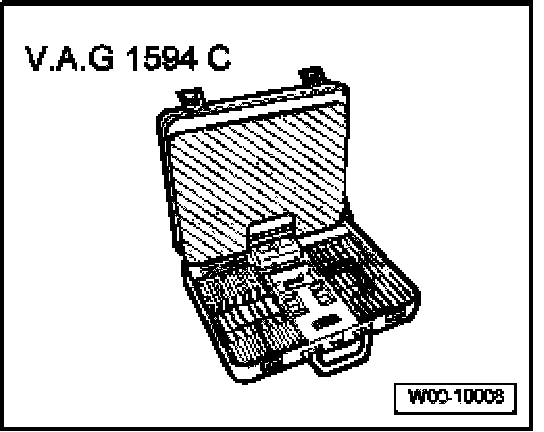

- Connector test set V.A.G 1594 C

Test sequence

Sedan:
- Remove carpeting in luggage compartment.
- Fold forward right rear seat backrest, if necessary.

Wagon:
- Remove left 1/3 backrest Body Interior - .
- Remove left side luggage compartment trim and dirt tray Body Interior -.







All models:

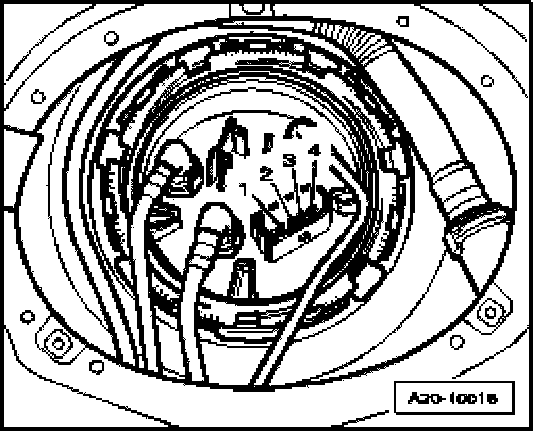

- Unbolt cover for locking flange in luggage compartment - arrows -.

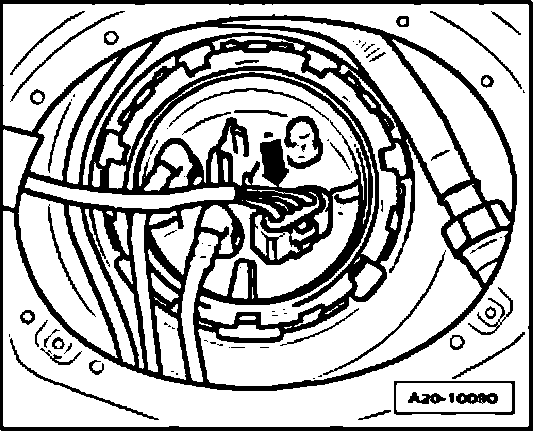

- Disconnect electrical harness connector - arrow - at locking flange.







- Connect hand multimeter V.A.G 1526 B between terminal -2- and -3- for resistance measurement.







- If measured value is 0 Ohm there is a short circuit. If measured value is infinite Ohms there is and open circuit in the wiring.
- To check resistance values "tank full" or "tank empty", the fuel delivery unit must be removed and the floater of the sensor must be placed in upper or lower end position.
- With fuel level sensor G removed, the following values are obtained because of the greater deflection of the floater arm:







- Installation is in reverse order or removal.
