EVAP Canister/Leak Detection System, Assembly Overview

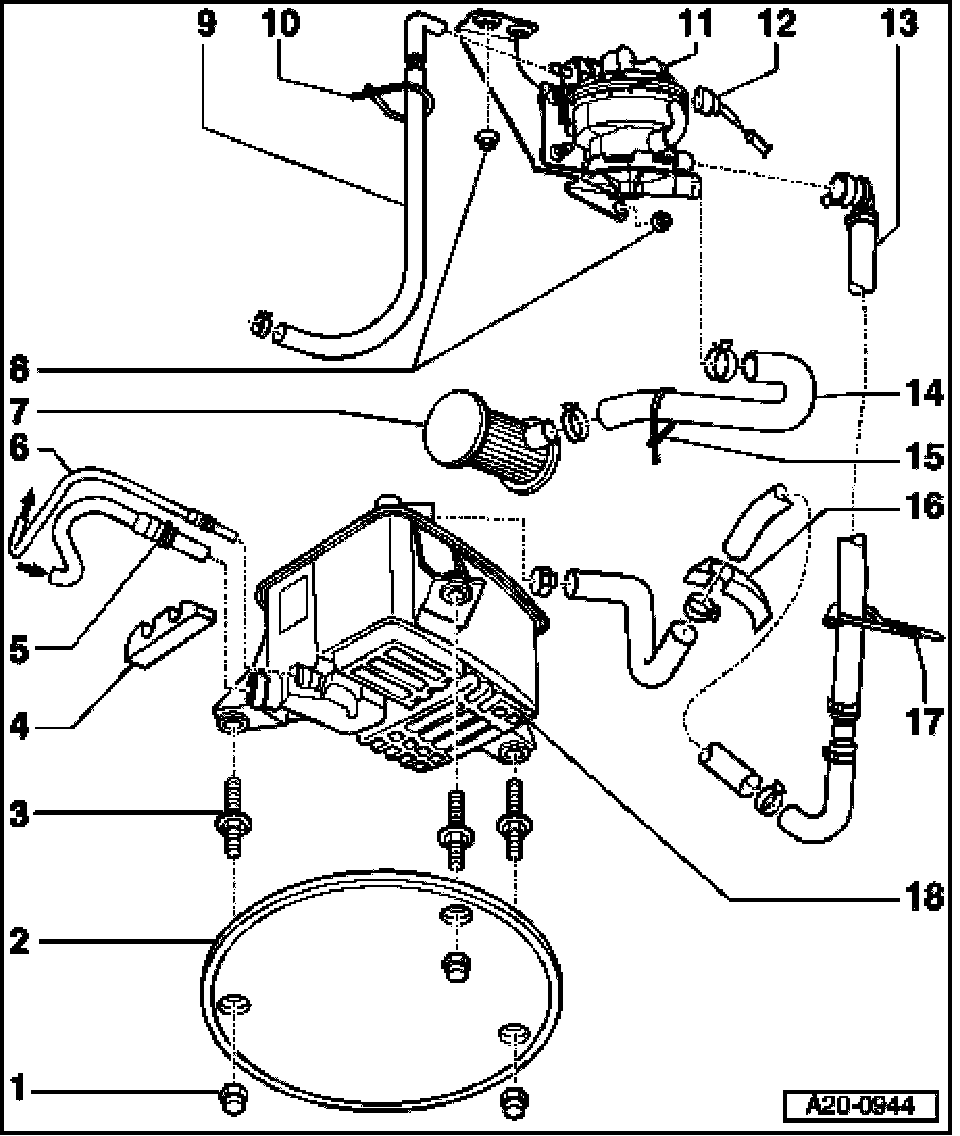

EVAP Canister/Leak Detection System, Assembly Overview







1. Cap nut 9 Nm
2. Cover
- For EVAP canister
3. Stud bolt 16 Nm
4. Sealing piece
5. Ventilation line
- From gravity valve at fuel tank
- To remove, press release ring on EVAP canister
6. Ventilation line
- To evaporative emission (EVAP) canister purge regulator valve N80
- To remove, press release ring on EVAP canister
7. Air filter housing
- For leak detection pump (LDP) V144
- No maintenance schedule
8. 4 Nm
9. Vacuum line
- To leak detection pump (LDP) V144
10. Cable tie
- To fasten vacuum line to bracket for leak detection pump
11. Leak detection pump (LDP) V144
- Component location: In left rear wheel housing behind wheel housing liner
12. Electrical harness connector
13. Connecting hose
- Leak detection pump/EVAP canister
- Pressure side
- To remove at leak detection pump, press release button on connection
14. Connecting hose
- Leak diagnosis pump/air filter
15. Cable tie
- To fasten hose to bracket of leak detection pump
16. Sealing piece
17. Cable tie
- To fasten connecting hose to wheel housing
18. EVAP canister
- Component location: Bottom of spare wheel well
- Vehicles as of 11.04: With EVAP filter







EVAP filter - Vehicles as of 11.04
