EVAP Canister/Leak Detection System, Hose Routing

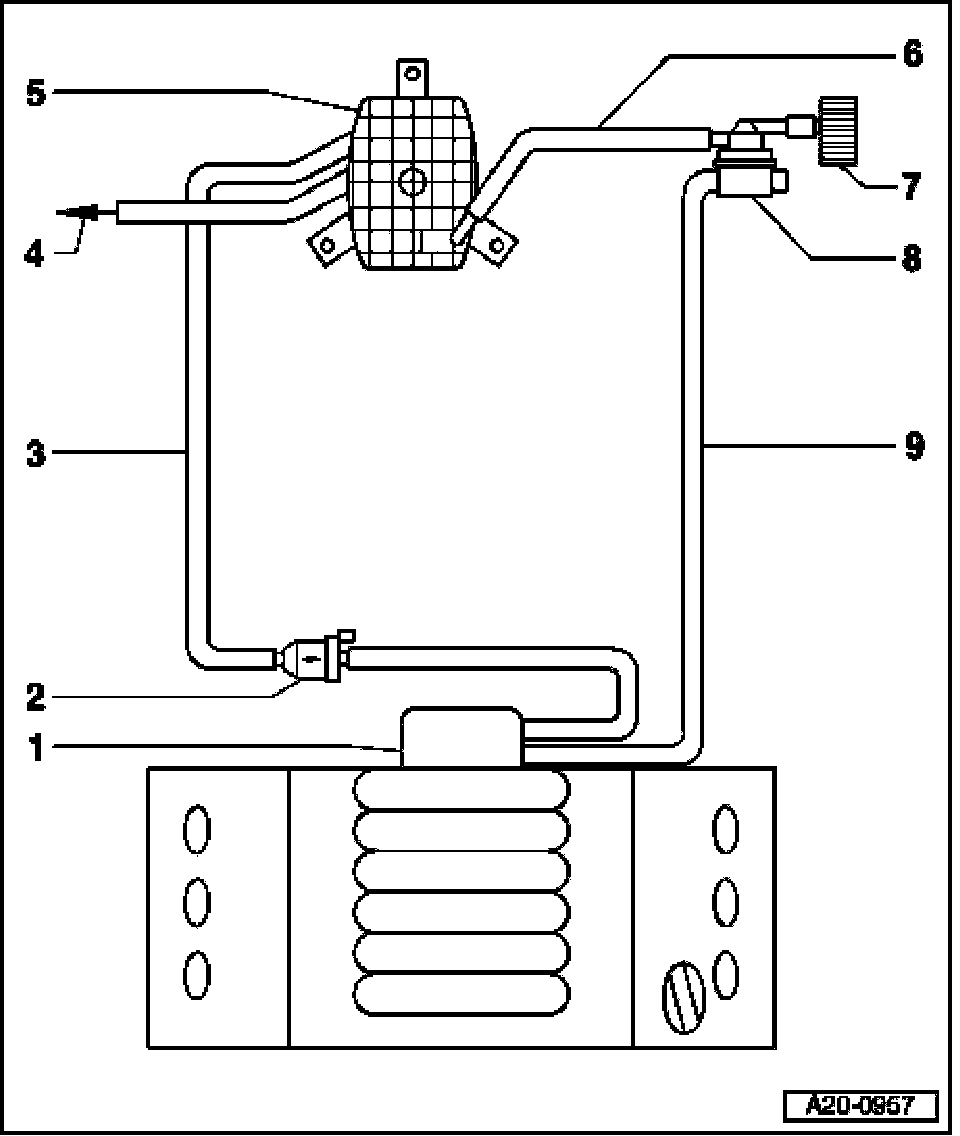

EVAP Canister/leak Detection System, Hose Routing (MPI-engine)







1. Throttle valve control module J338
2. Evaporative emission (EVAP) canister purge regulator valve N80
- Component location: Right front in engine compartment
3. Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Installed location: At right beneath vehicle floor
- Secured to fuel tank in fuel tank area
4. Ventilation line
- To gravity valve at fuel tank
5. EVAP canister
- Component location: Bottom of spare wheel well
6. Connecting hose
- Leak detection pump/EVAP canister
- Pressure side
7. Air filter housing
- For leak detection pump (LDP) V144
8. Leak detection pump (LDP) V144
- Component location: In left rear wheel housing behind wheel housing liner
- Check using "Guided Fault Finding"
9. Vacuum line
- To leak detection pump (LDP) V14
