Fuel Tank With Attachments, Assembly overview

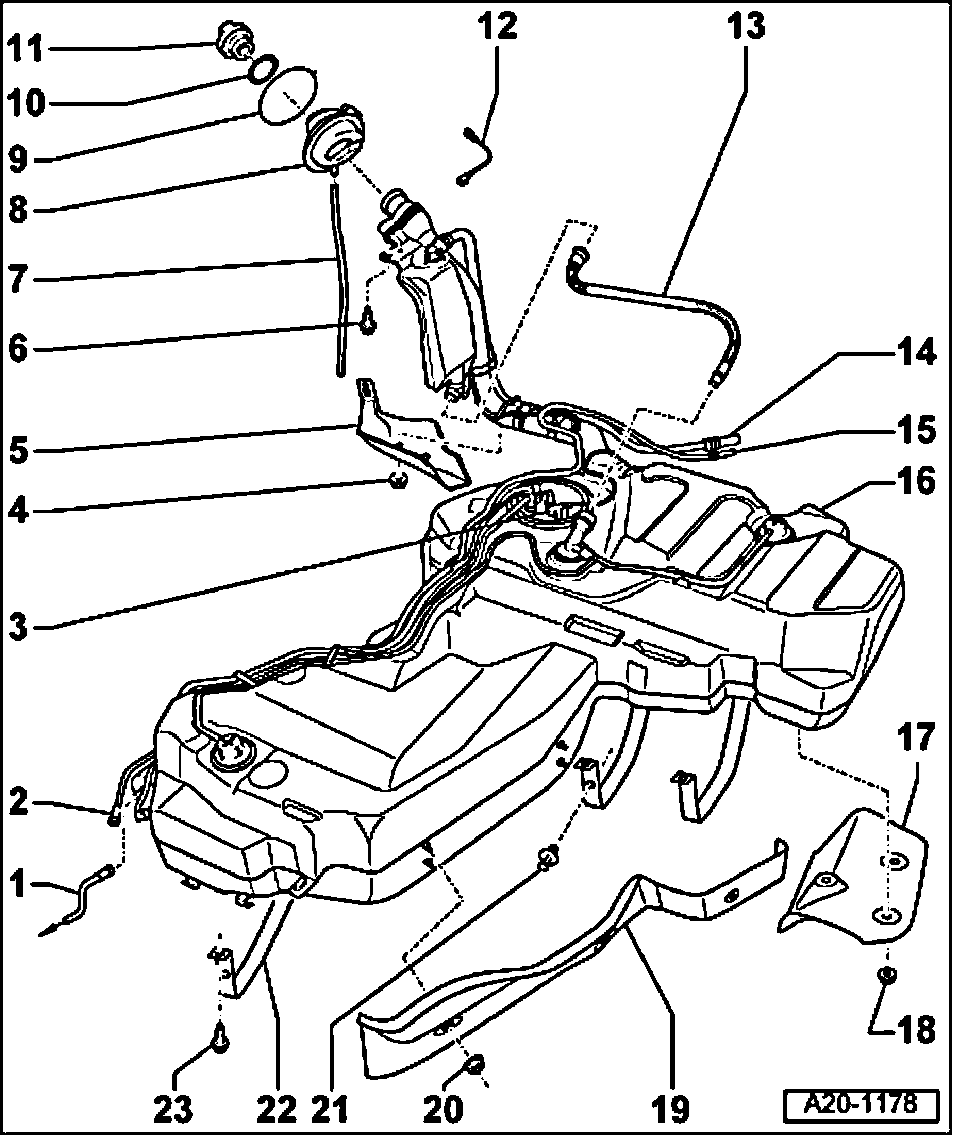

Fuel Tank With Attachments, Assembly Overview







1. Fuel line
- From fuel filter
- To engine
- Do not kink
- To disconnect, press release button on connection piece
2. Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Do not kink
- To disconnect, press release button on connection piece
- Clipped in on fuel tank
3. Electrical harness connector
- For Fuel Tank Lock Switch F314
- Checking electrical
4. 2 Nm
5. Heat shield
- For fuel delivery connection
6. 23 Nm
7. Overflow hose
- Engage in wheelhousing
8. Rubber pan
9. Circlip
10. Oil seal
- Replace if damaged
11. Cap
12. Ground connection
- For discharging electrostatic charge
- Installed position / check requirements
- After installing, check electrical connection of metal ring at fuel filler tube to a bare area of chassis using Ohm meter

Specified value: approx. 0 Ohm

13. Ventilation line
14. Ventilation line
- From gravity valve to EVAP canister
- To remove, press release ring on EVAP canister
15. Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- To remove, press release ring on EVAP canister
- Clipped in on fuel tank
16. Fuel tank
17. Heat shield
- For fuel tank
18. 2 Nm
19. Heat shield
- For fuel tank
20. 2 Nm
21. Spreader clip
22. Securing strap
- Observe varying lengths
23. 23 Nm

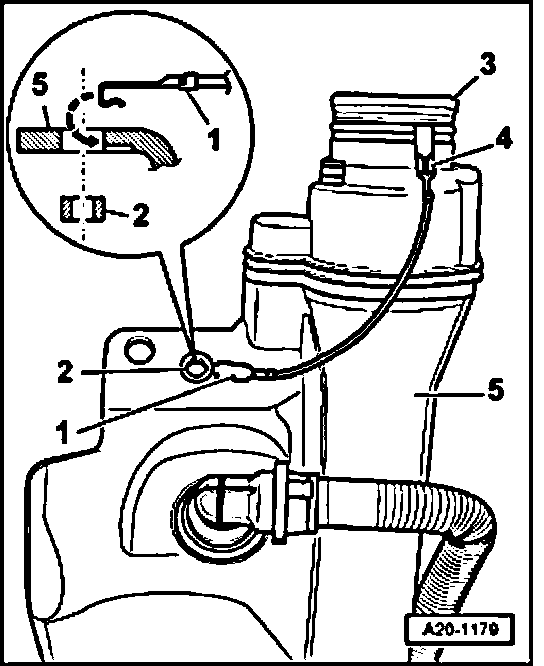

Installation position of Ground (GND) connection

- Route Ground (GND) connection as shown in figure.
- First, hook Ground (GND) contact -1- connection into securing hole on fuel tank -5- and then press in spacer bushing -2-

- Make sure connector of Ground (GND) connection -4- fits securely at metal ring -3- of fuel filler tube.

CAUTION: After installing, check electrical connection of metal ring at fuel filler tube to a blank portion of chassis using Ohm meter:

Specification: approx. 0 Ohm.
