Fuel Level Sensor G, Removing and Installing

Fuel Level Sensor G, Removing And Installing

Removing
Observe safety precautions
Observe rules for cleanliness

- Remove fuel delivery unit

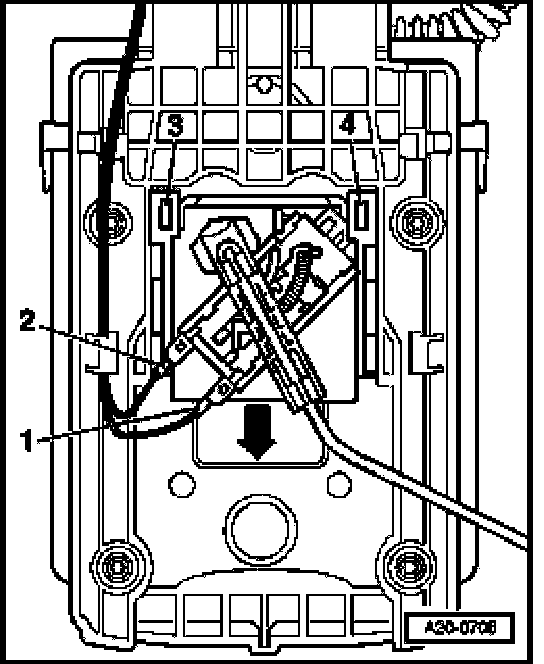

- Disengage electrical connectors -1- and -2- and disconnect them.
- Pry on retaining tabs -3- and -4- with a screwdriver and pull fuel level sensor G off downward - arrow -.

Instaling
Installation is in reverse order of removal. Note the following:
- Insert fuel level sensor G into guides on fuel delivery unit and push up until it engages.
- Connect electrical connections and check that they are securely engaged.
- Install fuel delivery unit.
