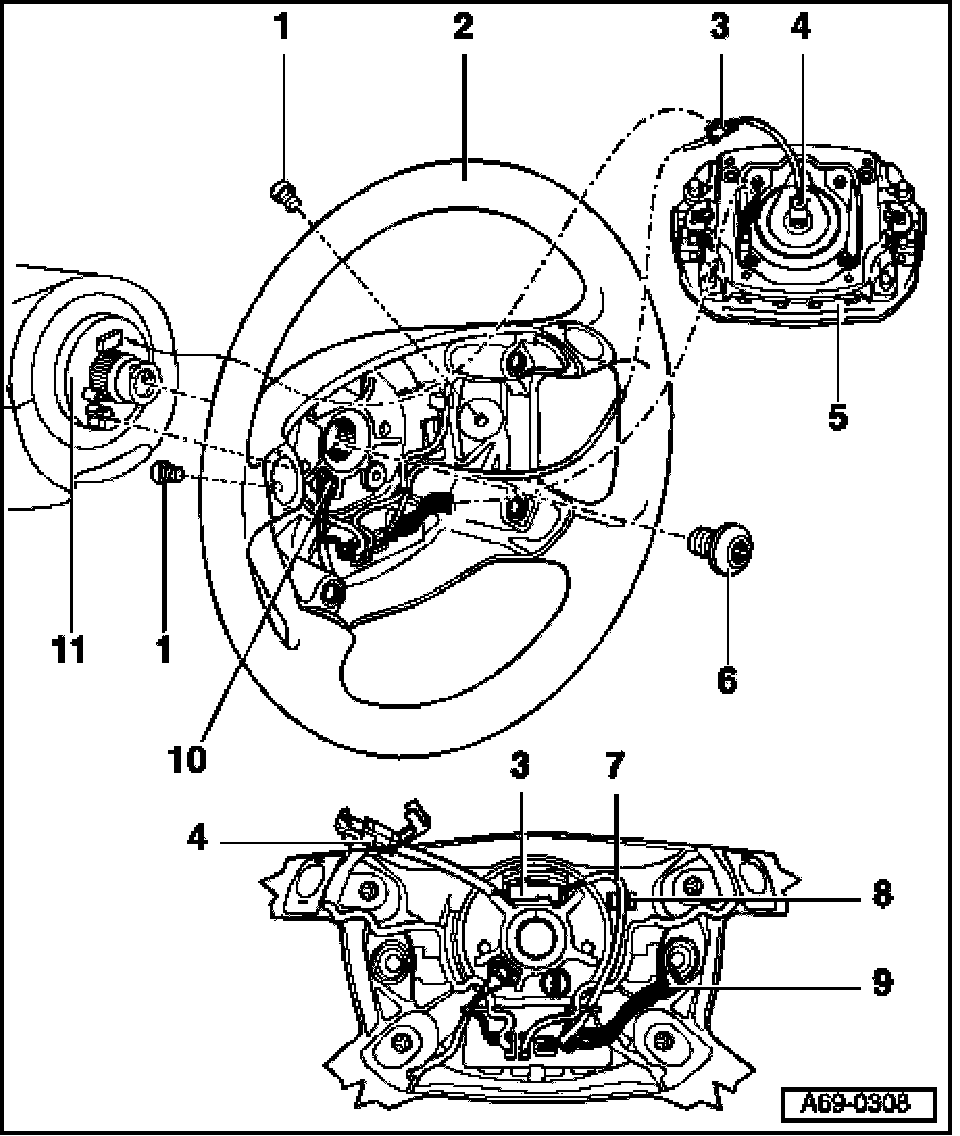

Steering Wheel (Multi-Function Steering Wheel), Assembly Overview

Steering Wheel (multi-function Steering Wheel), Assembly Overview







1. Torx bolts T30 (2x)
- Tightening torque 7 Nm

2. Steering wheel
- Removing
- Remove airbag unit (multi-function steering wheel).
- Center steering wheel (wheels in straight-ahead position).
- Remove bolt - 6 -.
- Disconnect connector for coil - 3 -.
- Disconnect multi-function cable connector - 9 -.
- Heated steering wheel: Unplug connector for heated steering wheel -10 -.
- Remove steering wheel - 2 -.

- Installing
- Installation is in reverse order of removal.
- Ensure that connector and catch engage fully (i.e. audibly).
- Insert supply cable - 7 - in clip - 8 -.
- Attach steering wheel in center position (wheels in straight-ahead position).
- Replace bolt - 4 - and tighten to 50 Nm.

3. Connector for coil
4. Connector for airbag unit
5. Airbag unit
6. Multi-point socket head bolt
- Tightening torque 50 Nm

7. Supply cable
8. Clip
9. Connector for multi-function steering wheel
10. Connector for heated steering wheel
11. Self-cancelling ring with slip ring
