Headlamp Switch: Service and Repair

Light Switch, Removing And Installing

Removing

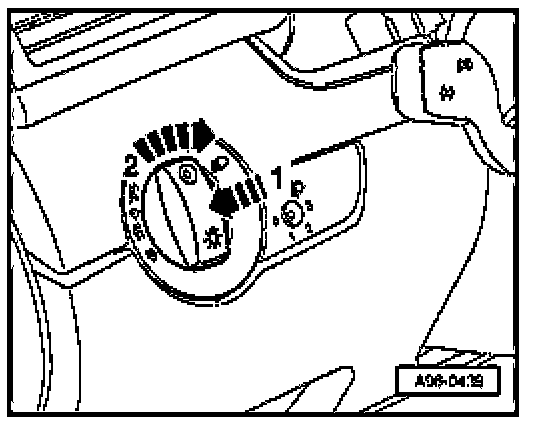

- Press light switch -arrow 1- while turning it clockwise -arrow 2
- Hold switch in this position...

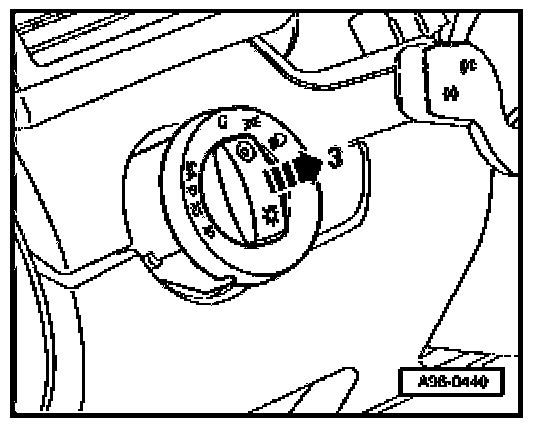

- ... and pull off light switch from switch housing -arrow 3-.
- Unplug connector.

Installing
Installation is reverse of removal, paying attention to the following:
- Press the switch into the switch housing until catch engages.
